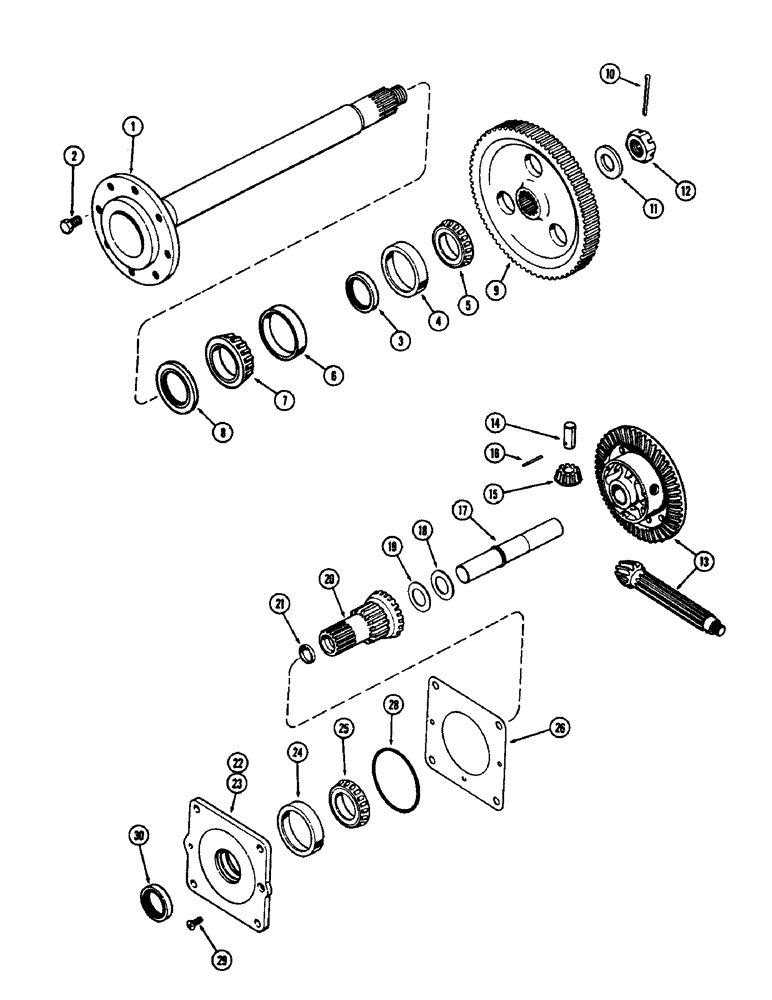

Запчасти Case 480CK (100) - DIFFERENTIAL AND FINAL DRIVE

1

A38209

SHAFT

- rear axle, flanged (For 5/8" N.F. wheel bolts), Start Serial: 8325289

2шт.

1

A37221

SHAFT

- rear axle, flanged (For 9/16" N.F. wheel bolts), Serial Range: -8325289

2шт.

2

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

BOLT - wheel to axle, 5/8 x 1" N.F. spec. (Used w/A38209 shaft)

16шт.

2

B18264

WHEEL BOLT

BOLT - wheel to axle, 9/16 x 1-5/32" N.F. spec. (Used w/A37221 shaft)

16шт.

3

G13801

OIL SEAL

- oil, inner, axle shaft (2-1/4 x 3-1/8 x 1/2")

2шт.

4

G10415

BEARING CUP

CUP - inner bearing, axle shaft

2шт.

5

G10414

ROLLER BEARING

CONE - inner bearing axle shaft

2шт.

6

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP - outer bearing, axle shaft

2шт.

7

G15207

ROLLER BEARING

CONE - outer bearing, axle shaft

2шт.

8

G13822

SEAL,73.66mm ID x 110.13mm OD x 11mm Thk

- oil, outer, axle shaft (3 x 4-11/32 x 1/2")

2шт.

9

A37925

GEAR

- final drive

2шт.

10

132-157

COTTER PIN,Ext Prong Sq Cut, 1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

2шт.

11

F62105

WASHER,38.89mm ID x 69.85mm OD x 6.35mm Thk

- take-up axle

2шт.

12

A30075

WHEEL NUT

- axle shaft (1-1/2" N.F. slotted)

2шт.

13

A38402

KIT

RING GEAR & COUNTERSHAFT ASSY. - matched (Replaces A37195)

1шт.

14

A37097

PIN

- diff. pinion gear

3шт.

15

G15483

GEAR

- pinion

3шт.

16

138-2036

PIN,3/16" x 2", Coiled

3шт.

17

A37186

SHAFT

- cross, differential

1шт.

18

A30539

WASHER

- thrust, center wheel (.089")

1шт.

18

A39007

WASHER

- thrust, center wheel (.094")

1шт.

18

A30533

WASHER

- thrust, center wheel (.099")

1шт.

18

A30045

WASHER

- thrust, center wheel (.104")

1шт.

18

A30543

WASHER

- thrust, center wheel (.109")

1шт.

18

A30051

WASHER

- thrust, center wheel (.119")

1шт.

19

A29388

WASHER

SHIM - thrust washer (.010")

1шт.

20

A37929

GEAR

ASSY. - side, differential, Includes: Ref. 21

1шт.

21

A29902

PLUG

- side gear (1-5/8" exp.)

1шт.

22

G30490

CARRIER

ASSY. - brg., R.H. side gear (Includes ref. 24)

1шт.

23

G30491

CARRIER

ASSY. - brg. L.H. side gear (Includes ref. 24), Includes: Ref. 24

1шт.

24

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - bearing, side gear (R.H. & L.H.)

1шт.

25

A30114

CONE

- bearing, side gear

2шт.

26

G10719

SHIM,.005" Thk

Bearing carrier .005" Thk

1шт.

26

G10720

SHIM,.010" Thk

Bearing carrier .010" Thk

1шт.

28

G10347

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

"O" RING - bearing carrier sealing (5 x 5-1/4 x 1/8")

2шт.

29

171-237

SCREW,Cross Flat Hd, 3/8" - 16 x 3/4", W/ Nylon Insert

- mach. 3/8 x 3/4" N.C. flat hd. Phillips

2шт.

30

G10689

SEAL

- oil, bearing carrier (2-1/4 x 3 x 1/2")

2шт.
