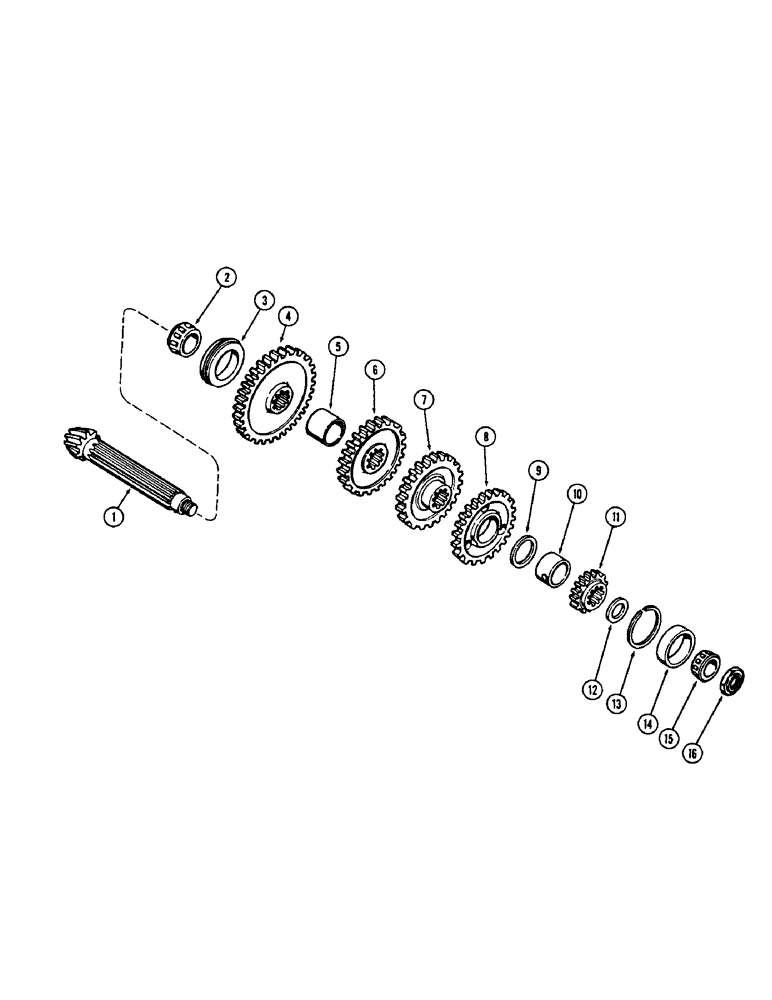

Запчасти Case 480CK (099A) - TRANSMISSION COUNTERSHAFT

1

NSS

NOT SOLD SEPARAT

COUNTERSHAFT - trans. (Order from page 100 or 102)

1шт.

2

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - rear bearing, countershaft

1шт.

3

A30115

CUP

- rear bearing, countershaft

1шт.

4

A38157

SPRING

- 1st, countershaft (47T) (Replaces G10320)

1шт.

5

A36619

BUSHING

SPACER - 1st and 2nd gear (1-5/8" long)

1шт.

6

A37732

GEAR

- 2nd, countershaft (38T)

1шт.

7

A37731

GEAR

- 3rd, countershaft (35T)

1шт.

8

A37730

GEAR

- oil slinger (35T)

1шт.

9

G46070

WASHER

- slinger gear (1-5/8" I.D. x 2-3/8" O.D.)

1шт.

10

G13260

BUSHING

SPACER - 4th gear (1-1/4" long includes rivet)

1шт.

11

G16527

GEAR

- 4th, countershaft (19T)

1шт.

12

A38769

SPACER

- gear (.164") (Replaces G10790)

1шт.

12

A38768

SPACER

- gear (.169") (Replaces G16530)

1шт.

12

A38767

SPACER

- gear (.174") (Replaces G10791)

1шт.

12

A38766

SPACER

- gear (.179") (Replaces G16531)

1шт.

12

A38765

SPACER

- gear (.184") (Replaces G10792)

1шт.

12

A38764

SPACER

- gear (.189") (Replaces G16532)

1шт.

12

A38763

SPACER

- gear (.194") (Replaces G10793)

1шт.

12

A38762

SPACER

- gear (.199") (Replaces G16533)

1шт.

12

A38761

SPACER

- gear (.204") (Replaces G10794)

1шт.

12

A38759

SPACER

- gear (.209") (Replaces G16534)

1шт.

12

A38758

SPACER

- gear (.214") (Replaces G10795)

1шт.

12

A38757

SPACER

- gear (.219") (Replaces G16535)

1шт.

12

A38756

SPACER

- gear (.224") (Replaces G16510)

1шт.

12

A38755

SPACER

- gear (.229") (Replaces G16536)

1шт.

12

A38754

SPACER

- gear (.234") (Replaces G16511)

1шт.

12

A38753

SPACER

- gear (.239") (Replaces G16537)

1шт.

12

A38752

SPACER

- gear (.244") (Replaces G16512)

1шт.

13

A29971

RING

- snap, front bearing

1шт.

14

A29977

BEARING CUP

CUP - front bearing, countershaft

1шт.

15

A30072

ROLLER BEARING,1.19" ID x 0.771"

CONE - front bearing, countershaft

1шт.

16

G49010

LOCK NUT

- adjusting, countershaft

1шт.
