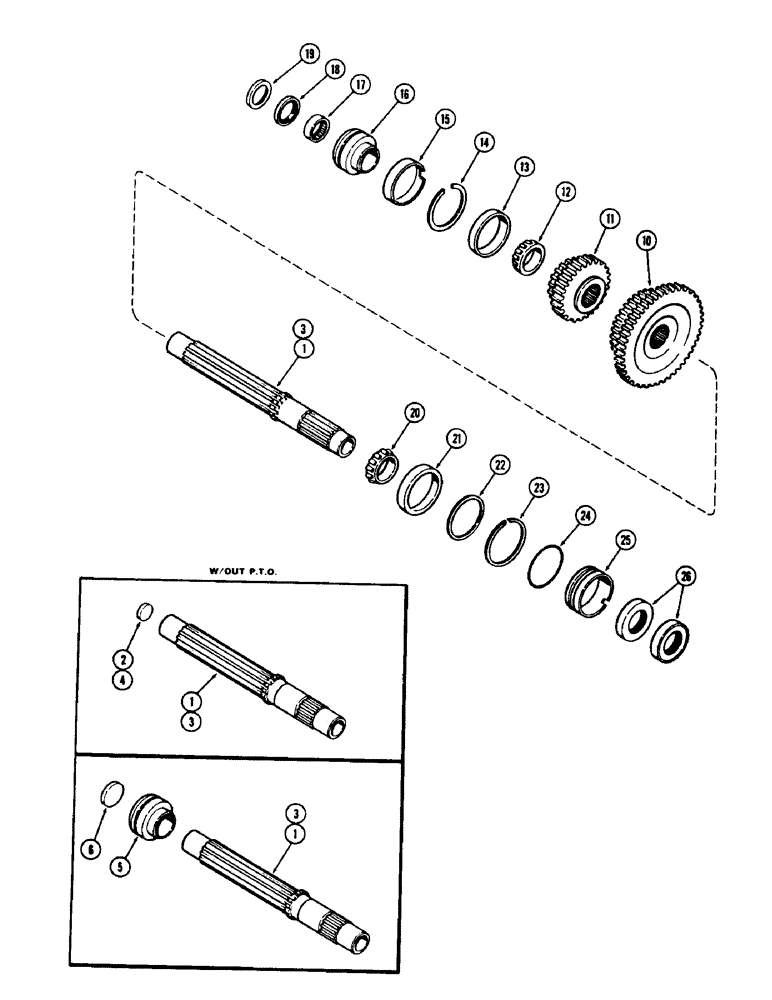

Запчасти Case 480CK (098) - TRANSMISSION MAINSHAFT

1

G13462

SHAFT

ASSY. - w/bushing (14-19/32" long) (Used w/8 speed & shuttle) (Used w/P.T.O.)

1шт.

2

41-1016

PLUG,Cup, 1"

- 1" cup type (Used w/G13462 shaft w/out P.T.O.)

1шт.

3

A36427

SHAFT - w/out bushing (15-9/16" long) (Used w/4 speed & shuttle) (Used w/P.T.O.)

1шт.

4

A38534

PLUG

- 1-1/16" cup type (Used w/A36427 shaft w/out P.T.O.), Start Serial: 8655018

1шт.

5

A37602

HOUSING

ASSY. - rear, mainshaft (w/out P.T.O.), Includes: Ref. 6, Serial Range: -8655018

1шт.

6

41-1024

PLUG,Cup, 1 1/2"

- housing (1-1/2" cup type)

1шт.

10

A38917

GEAR

- 3rd gear (28T) and 4th gear (44T) (Replaces A37728)

1шт.

11

A38630

GEAR

- 1st gear (16T) and 2nd gear (25T) (Replaces A37729 & A38156)

1шт.

12

A29976

ROLLER BEARING

CONE - rear bearing, mainshaft

1шт.

13

A29977

BEARING CUP

CUP - rear bearing, mainshaft

1шт.

14

A29971

RING

- snap, rear bearing

1шт.

15

G10616

CUP

- oil slinger

1шт.

16

A37604

HOUSING

ASSY. - rear oil seal, mainshaft (w/P.T.O.), Includes: Ref. 17 - 19

1шт.

17

A37606

NEEDLE BEARING,1.25" ID x 1.5005" OD x 0.5"

BEARING - needle

1шт.

18

A37605

OIL SEAL

- oil (1-1/4 x 1-5/8 x 3/16")

1шт.

19

A37607

COLLAR CLAMP

COLLAR - oil seal

1шт.

20

G10424

CONE

- front bearing, mainshaft

1шт.

21

G10425

CUP

- front bearing, mainshaft

1шт.

22

G10340

SHIM,.007" Thk

Bearing adjusting .007" Thk

1шт.

22

G10341

SHIM,.005" Thk

Bearing adjusting .005" Thk

1шт.

23

A30092

RING

- snap, oil seal housing

1шт.

24

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

"O" RING - oil seal housing (2-5/8 x 2-7/8 x 1/8")

1шт.

25

G16605

HOUSING

- front oil seal

1шт.

26

G10422

OIL SEAL

- oil, front, mainshaft (1-9/16 x 2-7/16 x 15/32")

2шт.
