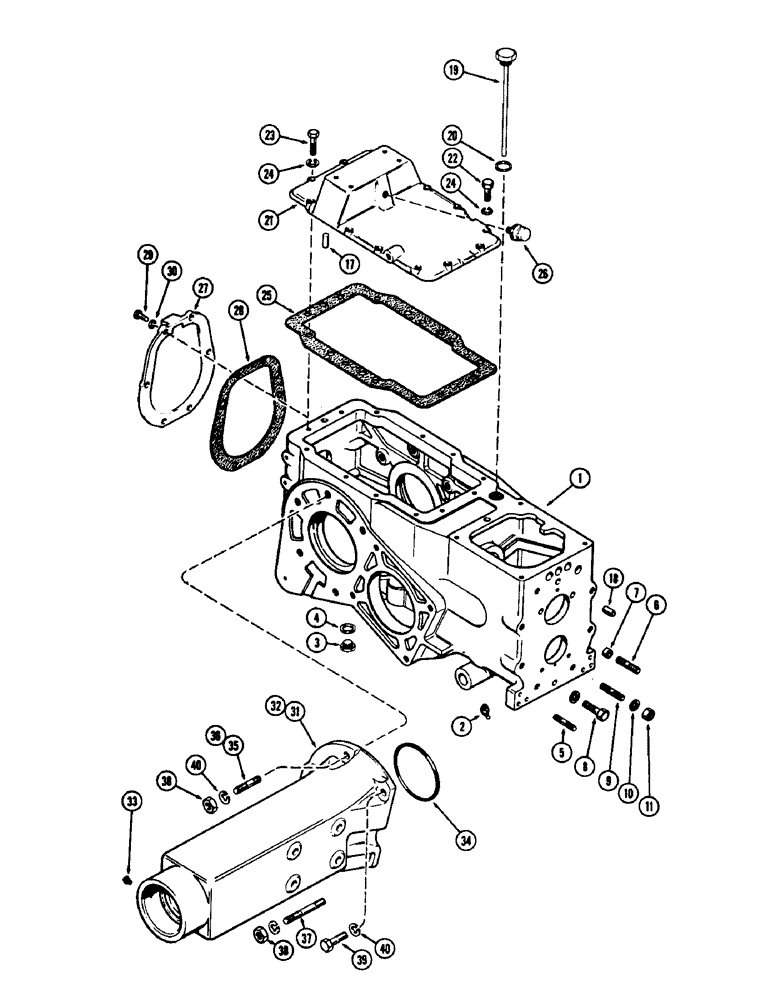

Запчасти Case 480CK (096) - TRANSMISSION CASE AND AXLE HOUSING
№
Артикул
Название
Примечание
Количество
1
A38714
CASE
- transmission (Replaces A37217)
1шт.
2
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING - grease 1/8" P.T. x 45 degrees
2шт.
3
A14280
PLUG
- drain
1шт.
4
A58608
GASKET
- drain plug (Nylon) (Replaces A27927)
1шт.
5
A37992
STUD
- torque tube, upper R.H. (1/2" N.C./N.F. x 2-3/8")
1шт.
6
A37993
X
STUD - torque tube, upper L.H. (1/2" N.C./N.F. x 2-7/16")
1шт.
7
A50011
SLEEVE
- stud, upper L.H.
1шт.
8
13-832
BOLT,Hex, 1/2" - 13 x 2", Gr 5
Torque tube Hex, 1/2"-13 x 2", G5
4шт.
9
A29336
STUD
- torque tube, lower (1/2" N.C./N.F. x 2-1/2")
2шт.
10
92-8
LOCK WASHER,1/2"
8шт.
11
25-118
NUT,1/2"-20, G5
- 1/2" N.F. hex
4шт.
17
138-199
LOCK PIN,1/2" x 3/4", Slotted
PIN, 1/2" x 3/4", Slotted
1шт.
18
A29540
PIN
DOWEL - torque tube to trans. case
1шт.
19
A38306
DIPSTICK
- oil level (Replaces G10348)
1шт.
20
A38660
GASKET
- dipstick (Replaces G10351)
1шт.
21
G1097
COVER - top (w/no hitch)
1шт.
22
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
8шт.
23
13-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5
4шт.
24
92-6
LOCK WASHER,3/8"
12шт.
25
G10941
GASKET
- cover
1шт.
26
A27173
BREATHER
- oil
1шт.
27
A36885
COVER - rear (w/out P.T.O.)
1шт.
28
G10447
GASKET
- rear cover
1шт.
29
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
6шт.
30
92-6
LOCK WASHER,3/8"
5шт.
31
A37068
HOUSING
- R.H. axle
1шт.
32
A37069
HOUSING
- L.H. axle
1шт.
33
219-36
LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF
FITTING - grease, 1/8" P.T. x 45 degrees
2шт.
34
G10347
O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro
"O" RING - axle hsg. to trans. case (5 x 5-1/4 x 1/8")
2шт.
35
G49510
STUD
- axle hsg. (5/8" N.C./N.F. x 2-13/16") (5-w/hitch)
6шт.
36
A29333
STUD
- axle hsg. (5/8" N.C./N.F. x 3") (w/hitch only)
1шт.
37
A26655
STUD
- axle hsg. (5/8" N.C./N.F. x 4-5/8")
2шт.
38
25-1110
NUT,5/8"-18, G5
- 5/8" N.F. hex
8шт.
39
13-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
2шт.
Выбрано товаров: 35
