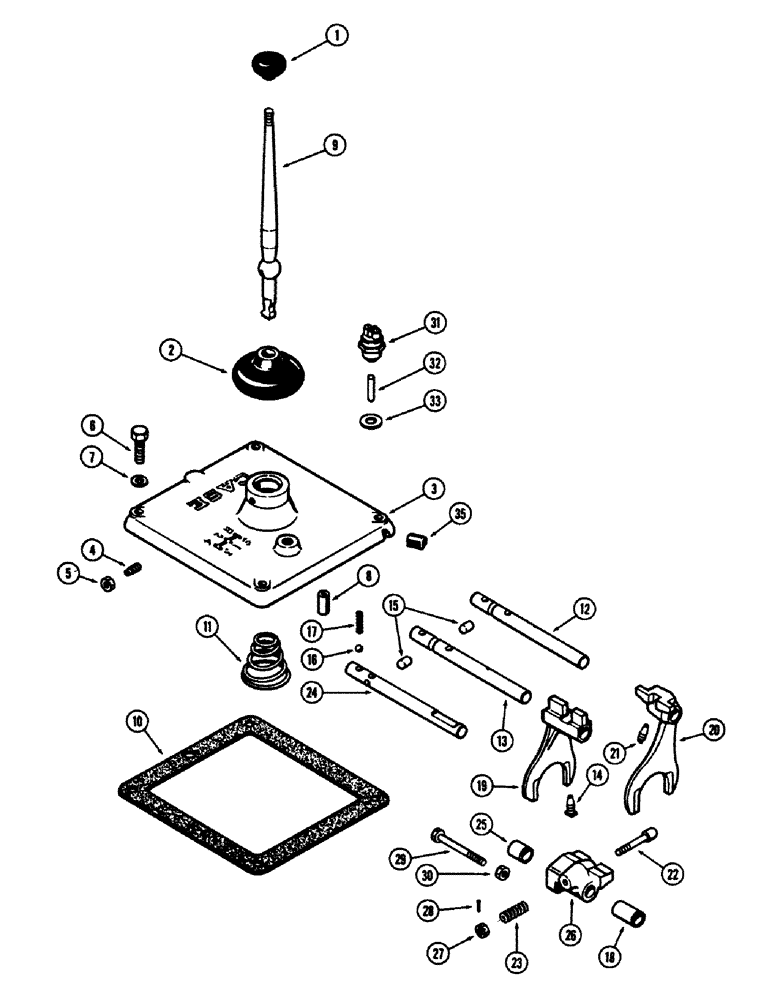

Запчасти Case 480CK (095A) - GEAR SHIFT COVER, USED PRIOR TO TRANSMISSION SERIAL NUMBER 2215189

1

A38920

BALL

KNOB - shift lever (Replaces A26727)

1шт.

2

A57876

COVER

- dust (Replaces A26956)

1шт.

3

G1328

COVER ASSY

COVER - control

1шт.

4

G15468

SET SCREW,5/16" - 18 x 3/4"

- retaining, shift lever

1шт.

5

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" N.C. hex

4шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- cover, 3/8 x 1-1/2" N.C. hex

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

138-199

LOCK PIN,1/2" x 3/4", Slotted

PIN, , Cover to trans. case 1/2" x 3/4", Slotted

1шт.

9

G15465

LEVER

- hand, gear shift

1шт.

10

G10342

GASKET

- cover

1шт.

11

G10611

SPRING

- support, shift lever

1шт.

12

G10327

ROD

RAIL - shift, 3rd & 4th speeds

1шт.

13

G10326

ROD

RAIL - shift, 1st & 2nd speeds

1шт.

14

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- lock, shift fork

2шт.

15

A29060

PLUG

- interlock, shift rail

2шт.

16

211-11

BALL,3/8" Dia

- mesh lock, shift rail, . 3/8" Dia

3шт.

17

G47039

SPRING

- mesh lock

3шт.

18

G49611

SPACER

- reverse shift rail, 1-1/4" long

1шт.

19

G10332

FORK

- shift, 1st & 2nd speeds (Order A41467) (See Figure 94)

1шт.

20

G10333

X

FORT - shift, 3rd & 4th speeds (Order A41468) (See Figure 94)

1шт.

21

A29965

LOCK SCREW,3/8" - 24 x 11/16", Drilled

- lock, shift fork, 3rd & 4th speed

1шт.

22

A29963

PLUNGER

- reverse latc

1шт.

23

T25643

VALVE SPRING

SPRING - plunger

1шт.

24

A35313

RAIL

- reverse shift

1шт.

25

G49632

SPACER

- rear, reverse shift, 3/4" long

1шт.

26

G15585

LUG - reverse shift rail

1шт.

27

25-135

SLOTTED NUT,5/16"-24, G5

NUT - slotted, 5/16" N.F.

1шт.

28

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

29

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16 x 3" N.C. hex

1шт.

30

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 5/16" N.C. hex.

1шт.

31

A20990

SWITCH

- safety, neutral start

1шт.

32

G15574

PLUNGER

- safety switch

1шт.

33

G49401

SHIM,.005" Thk

Safety switch .005" Thk

1шт.

33

G49402

SHIM,.010" Thk

Safety switch .010" Thk

1шт.

35

A35839

PLUG

- control cover

1шт.
