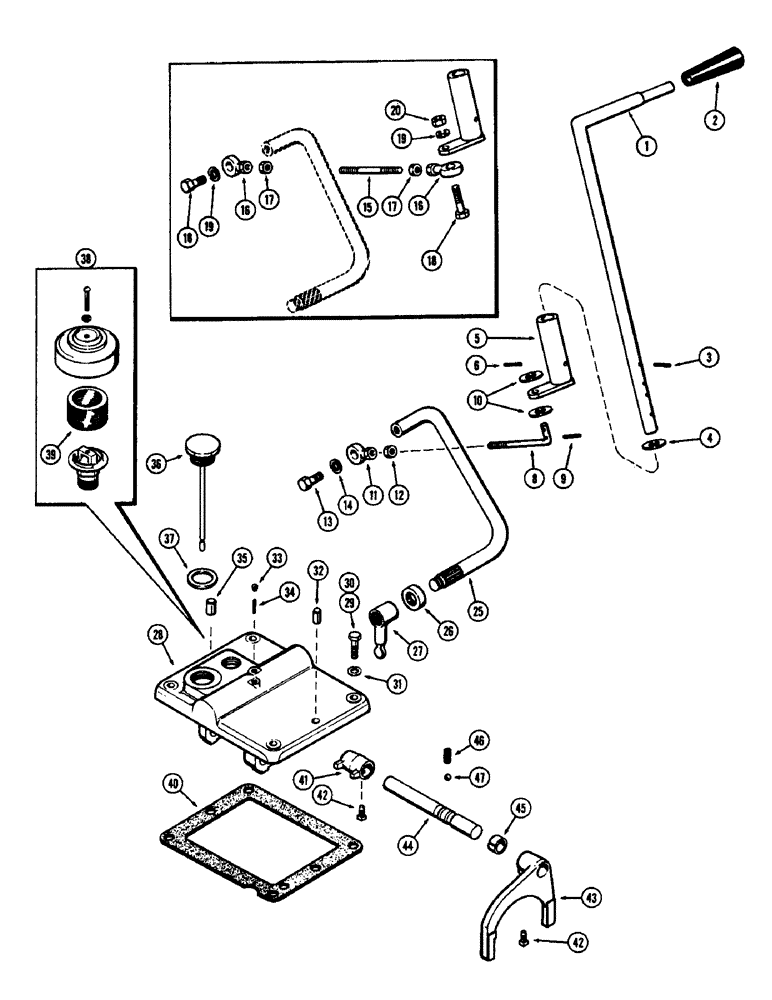

Запчасти Case 480CK (092) - FOUR SPEED SHUTTLE CONTROL COVER

1

A37427

LEVER

- shift, shuttle control

1шт.

2

A37247

KNOB

- control shift lever (Use adhesive)

1шт.

3

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

4

195-41

WASHER,5/8"

1шт.

5

A37242

LEVER

- shuttle linkage

1шт.

6

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

8

A38435

ROD

- connecting, Start Serial: 8359651

1шт.

9

138-45

LOCK PIN,3/32" x 1", Slotted

PIN, , Rod to lower lever 3/32" x 1", Slotted

2шт.

10

95-6

WASHER,3/8"

- plain, 7/16 x 1 x 5/64"

2шт.

11

A32398

BALL JOINT

END - ball joint, Serial Range: rod-lever

1шт.

12

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

1шт.

13

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

End to lever Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

A37246

CONNECTING ROD

ROD - connecting, Serial Range: -8369651

1шт.

16

A32398

BALL JOINT

JOINT - ball, linkage

2шт.

17

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex

2шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

25

A37419

LEVER

- lower, shuttle control

1шт.

26

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- oil, control lever (3/4 x 1-1/4 x 3/8")

1шт.

27

G15659

LEVER

- shuttle shift fork

1шт.

28

A37657

COVER - shuttle shift control

1шт.

29

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex. hd., 3/8 x 1-1/2" N.C.

3шт.

30

166-45

12 PT SCREW,Flg, 3/8" - 16 x 1", Gr 8

SCREW - cap, 3/8 x 1" N.C., 12 pt. ferry

1шт.

31

92-6

LOCK WASHER,3/8"

3шт.

32

A29426

AXLE PIN

PIN - front dowel, control cover (3/8 x 3/4")

1шт.

33

221-1850

PLUG,Hex Soc, 1/16"-27

- pipe, 1/16" hex. sckt. hd.

1шт.

34

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Lever 1/8" x 1", Slotted

1шт.

35

G10711

PIN

- rear dowel, control cover (1/2 x 3/4")

1шт.

36

A38311

DIPSTICK

- oil level gauge (Replaces A37651)

1шт.

37

A38660

GASKET

- dipstick (Nylon) (Replaces G10351)

1шт.

38

A9238

BREATHER

ASSY. - air, control cover, Includes: Ref. 39

1шт.

39

A10059

FILTER, ELEMENT

ELEMENT - filter, breather

1шт.

40

G46842

GASKET

- control cover mtg.

1шт.

41

G16638

LUG

- shuttle shift rail

1шт.

42

A29964

LOCK SCREW,Sq Hd, 3/8" - 24 x 27/32", Drilled

- set, shuttle shift lug & fork

2шт.

43

A36426

FORK

- shift, shuttle

1шт.

44

A36425

RAIL - shift fork, Includes: Ref. 45

1шт.

45

A38203

SPACER

- shift rail (1/2" long) (Replaces G49612, G49628 & G49629)

1шт.

46

G47039

SPRING

- detent, shuttle rail

1шт.

47

211-11

BALL,3/8" Dia

- detent, . steel 3/8" Dia

1шт.
