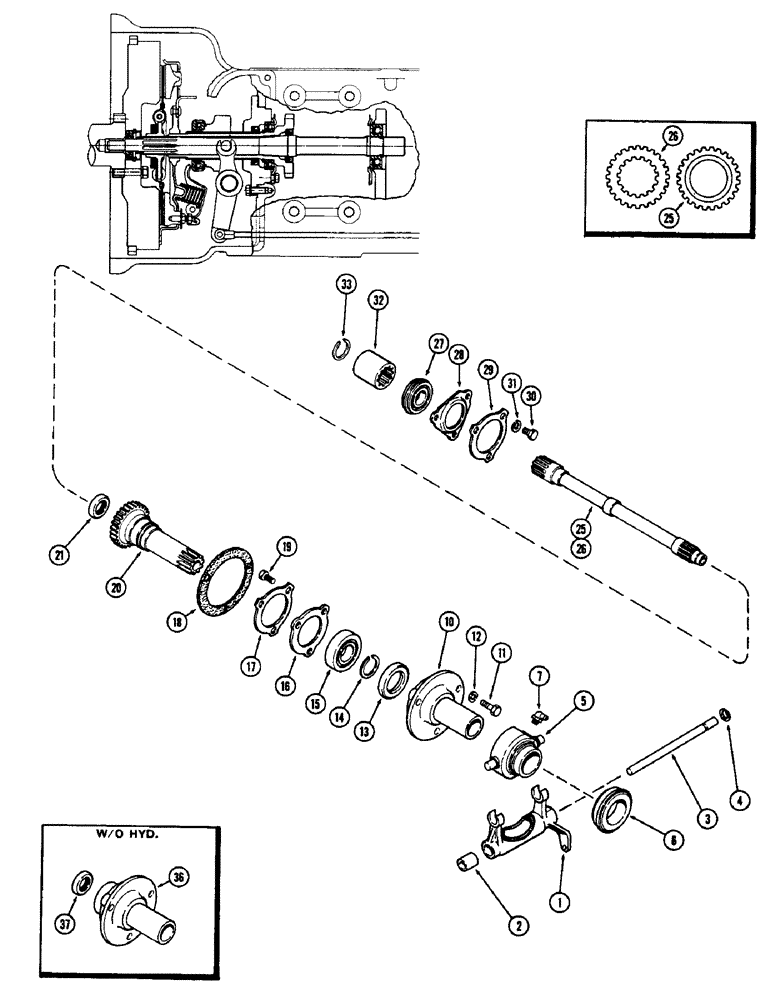

Запчасти Case 480CK (081A) - CLUTCH SHAFT

1

G14469

YOKE

ASSY. - clutch throwout, Includes: Ref. 2

1шт.

2

G49661

BUSHING

1шт.

3

A35029

SHAFT

- pivot, throwout yoke

1шт.

4

A35030

RING

- snap, pivot shaft

1шт.

5

A37774

CARRIER

ASSY. - throwout bearing, Includes: Ref. 6

1шт.

6

A7538

BEARING

- clutch throwout

1шт.

7

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degrees x 1/8" P.T.

1шт.

10

A37612

HOUSING

SLEEVE - throwout carrier (See ref. 36) (Used w/hydraulics or Draft-O-Matic)

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Sleeve Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

12

92-6

LOCK WASHER,3/8"

3шт.

13

A37615

OIL SEAL

- oil carrier (1-7/8 x 2-3/4" x 1/4") (See ref. 37)

1шт.

14

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, bearing retaining

1шт.

15

G10418

BEARING, BALL

BEARING - drive gear

1шт.

16

A37616

RETAINER

CAP - bearing retainer

1шт.

17

G10382

LOCK

- bearing cup

1шт.

18

G10407

GASKET

- housing

1шт.

19

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

3шт.

20

A37610

GEAR

ASSY. - pump drive, Includes: Ref. 21

1шт.

21

A37611

OIL SEAL

- oil, drive gear (1-3/8 x 2-1/8 x 7/16")

1шт.

25

A37618

SHAFT

- clutch, w/out internal spline at rear) (Used w/independent P.T.O.)

1шт.

26

A37619

SHAFT - clutch (w/internal spline at rear) (Used w/standard P.T.O.)

1шт.

27

A37733

BALL BEARING

BEARING - clutch shaft

1шт.

28

G10383

BEARING CAP

CAP - bearing retainer

1шт.

29

G10382

LOCK

- bearing reatainer

1шт.

30

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

36шт.

31

92-5

LOCK WASHER,5/16"

3шт.

32

A37569

COUPLING

- clutch shaft to dual range

1шт.

33

G10438

RING

- snap, coupling

1шт.

36

A38634

CARRIER

ASSY. - throwout (w/out hyd. or Draft-O-Matic), Includes: Ref. 37, Start Serial: 8356762

1шт.

37

A37611

OIL SEAL

- oil (1-3/8 x 2-1/8 x 7/16")

1шт.
