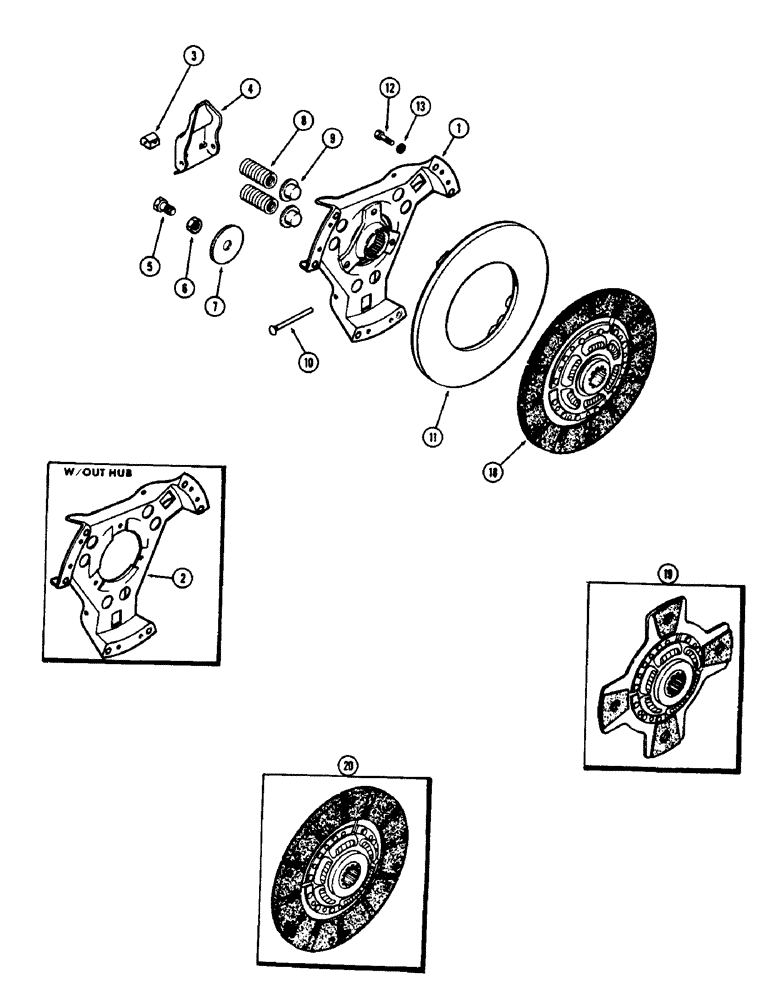

Запчасти Case 480CK (078) - CLUTCH

A37566

PLATE

ASSY. - pressure (Incl. ref. 1 & 3 thru 11) (Used models w/hydraulics or Draft-O-Matic)

1шт.

A37566R

REMAN-CLUTCH PLATE

Remanufactured, CLUTCH PLATE

1шт.

A37566C

CORE-CLUTCH PLATE

Return Number, Plate Assy., Pressure

1шт.

A38636

X

PLATE ASSY. - pressure (Incl. ref. 2 thru 11) (Used models w/no hydraulics) (Order A37566)

1шт.

1

NSS

NOT SOLD SEPARAT

BRACKET - w/hub (For A37566 plate assy.)

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET - w/out hub (For A38636 plate assy.)

1шт.

3

G46061

CLIP

- clutch return

3шт.

4

A40885

LEVER

- pressure spring

3шт.

5

G49004

SCREW

- adjusting

3шт.

6

G49005

NUT - jam

3шт.

7

G49048

WASHER

- plain (21/64 x 1-1/4 x 1/8")

3шт.

8

G47013

SPRING

- lever (White) (See note)

6шт.

9

G47012

CUP - spring seat

6шт.

10

A41427

AXLE PIN

PIN - pivot (Replaces G47011)

3шт.

11

G45063

PLATE - pressure

1шт.

12

G11207

BOLT

- clutch to flywheel (5/16 x 1" N.C. hex)

6шт.

13

92-5

LOCK WASHER,5/16"

6шт.

18

A37568

PLATE

- driving (Gas)

1шт.

19

A38389

PLATE

- driven; driving (Diesel), Start Serial: 2654834

1шт.

20

A37567

PLATE - driving (Diesel) (Order A38389), Serial Range: -2654834

1шт.
