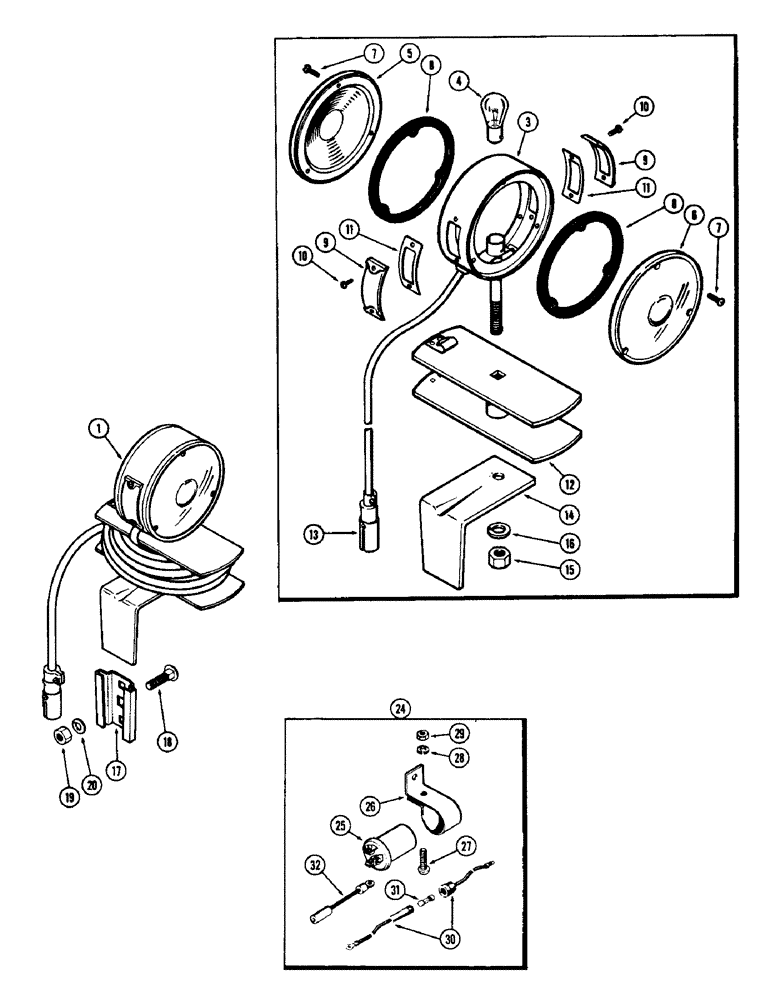

Запчасти Case 480CK (075A) - WARNING LAMP

1

A11066

WARNING LAMP ATT. (Mach. item), Includes: Ref. 3 - 16

1шт.

NSS

NOT SOLD SEPARAT

LAMP ASSY. (Order A11066)

1шт.

3

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

4

33686

BULB

- 12 volt 21 C.P.

1шт.

5

B50337

LENS

- front (Amber)

1шт.

6

B53962

LENS

- rear (Red)

1шт.

7

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens, #6-32 x 1/2" rd. hd.

6шт.

8

B50317

GASKET - lens, front & rear

2шт.

9

B50328

LENS - side (Clear)

2шт.

10

182-43

SCREW - #6-20 x 5/16" pan hd.

4шт.

11

B50329

GASKET - side lens

2шт.

12

B50330

SPOOL - cable

1шт.

13

B50259

PLUG

- auxiliary socket

1шт.

14

B50331

BRACKET - mounting

1шт.

15

129-104

NUT,7/16"-14, G5

1шт.

16

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

17

A8179

SOCKET

- mounting bracket

1шт.

18

11-510

SCREW,Short Nk, 5/16" - 18 x 5/8", Gr 2

BOLT - 5/16 x 5/8" N.C. rd. hd. sq. nk.

2шт.

19

25-205

NUT - 5/16" N.C. hex

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

24

A22630

FLASHER ATTACHMENT (Mach. Item), Includes: Ref. 25 - 32

1шт.

25

A22627

LIGHT, WARNING

FLASHER - warning lamp, attachment

1шт.

26

A22626

BRACKET - mounting, flasher attachment

1шт.

27

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- #10-24 x 1/2" rd. hd., flasher attachment

1шт.

28

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, , Flasher attachment #10

1шт.

29

129-17

NUT,Hex, #10 - 24

NUT - hex, flasher attachment #10-24

1шт.

30

A22629

WIRE ASSY. - flasher to power, flasher attachment, Includes: Ref. 31

1шт.

31

223-4

FUSE,4 Amp, Type 3AG

(4 amp.), flasher attachment

1шт.

32

A22628

WIRE -, Serial Range: flasher-socket

1шт.
