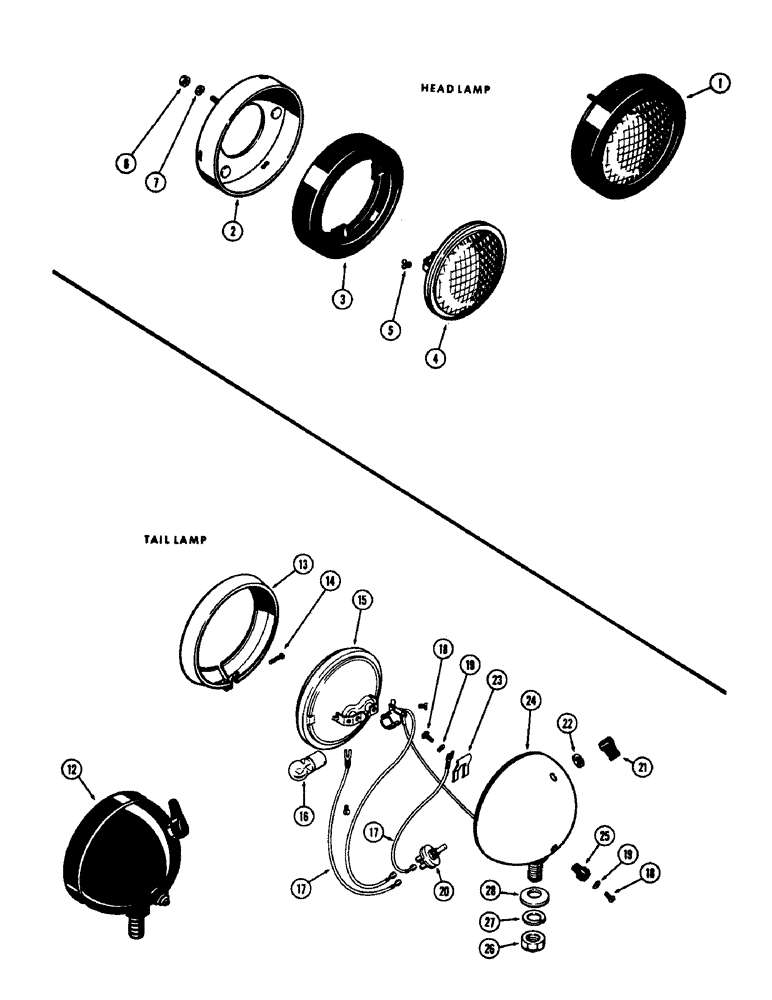

Запчасти Case 480CK (074) - HEAD LAMP

1

D30243

LAMP

ASSY. - head, Includes: Ref. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

FRAME

1шт.

3

D31441

RETAINER

- rubber (Use w/guide lamp)

1шт.

3

A25213

RETAINER

- rubber (Use w/Hobbs lamp)

1шт.

4

D33182

LAMP

- sealed unit (Mfrs. #4410)

1шт.

5

182-57

SCREW - brass, #8-32 x 5/16" pan hd.

1шт.

6

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

6шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

15

A20965

LAMP BASE

LAMP ASSY - flood & tail, Includes: Ref. 16 - 31

1шт.

16

B50255

MOLDING

- lamp retaining, tail

1шт.

17

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - molding, tail lamp

1шт.

18

A40855

LAMP BASE

LAMP - sealed unit, tail

1шт.

19

B50223

BULB

- red 15 C.P. 12 volt, tail lamp

1шт.

20

B50273

WIRE - switch, tail lamp

2шт.

21

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- wire (#8 x 1/4" N.C. rd. hd.), tail lamp

2шт.

22

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER - lock, 1/4", tail lamp

2шт.

23

B50275

SWITCH

- lamp, tail

1шт.

24

B50310

SWITCH

KNOB - switch, tail lamp

1шт.

25

B50224

SPECIAL NUT

- switch, tail lamp

1шт.

26

10927

SPRING

- terminal, tail lamp

1шт.

27

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A20965), tail

1шт.

28

B50293

TERMINAL CONNECTOR

TERMINAL - wire, tail lamp

1шт.

29

129-105

NUT,Hex, 1/2" - 13, Gr 5

Tail lamp 1/2"-13, G5

1шт.

30

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , Tail lamp 1/2"

1шт.

31

10923

WASHER

- bearing, concave, tail lamp

1шт.
