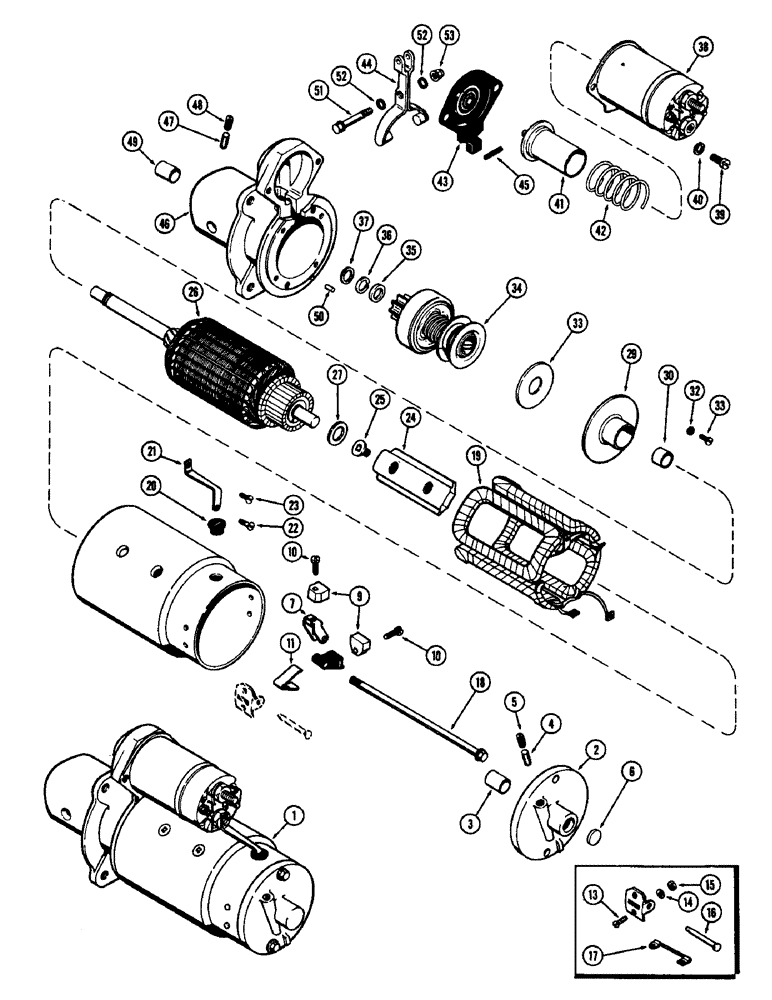

Запчасти Case 480CK (071A) - A36582 STARTER, (188) DIESEL ENGINE

1

A36582

SPARE PART STARTING MOTOR (Delco-Remy #1107584) (Order A36583) (See Figure 70) (See Figure 71C for rebuild starter kit), Includes: Ref. 2 - 53

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

HEAD ASSY. - commutator end, Includes: Ref. 3 - 6

1шт.

3

R15020

BUSHING

BUSHING - armature shaft

1шт.

4

A41979

WICK

WICK - oil

1шт.

5

221-1041

PLUG

PLUG - oil wick hole

1шт.

6

R15021

PLUG

PLUG - expansion

1шт.

7

A40217

HOLDER

HOLDER - brush, ground

2шт.

8

R15027

HOLDER

HOLDER - brush, insulating

2шт.

9

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

4шт.

10

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush holder

4шт.

11

A25359

SPRING

SPRING - brush pressure

2шт.

12

A25379

KIT

SUPPORT KIT - brush holder, Includes: Ref. 13 - 17

1шт.

13

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - brush support, #10-24 x 1/2 rd. hd.

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

R15032

X

NUT - support screw (#10-24 hex.)

1шт.

16

A41983

PIN

PIN - brush holder

2шт.

17

A25363

ELECTRICAL WIRE

WIRE LEAD - brush holder

2шт.

18

A25552

BOLT

BOLT - thru

2шт.

19

A25319

COIL

COIL - field

1шт.

20

A41980

GROMMET

GROMMET - connector

1шт.

21

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR - solenoid

1шт.

22

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - connector, #10-32 x 7/16" rd. hd.

1шт.

23

A42023

SCREW,#10 - 32 x 1/2"

SCREW -, Serial Range: connector-solenoid

1шт.

24

A25391

SHOE

SHOE - pole

4шт.

25

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoes, 3/8 x 5/8" N.F. flat hd.

8шт.

26

A40219

ARMATURE

ARMATURE - starter

1шт.

27

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - brake, comm. end

1шт.

A40215

PLATE ASSY.

PLATE ASSY. - center bearing, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

PLATE - center bearing (Order A40215)

1шт.

30

A42125

BUSHING

BEARING - center

1шт.

31

A41959

SCREW,#10 - 32 x 3/8"

SCREW - plate to drive housing

2шт.

32

193-42

WASHER, LOCK,Ext-Int Tooth, #10

WASHER - lock, #10 int.-ext. Shakeproof

2шт.

33

R15043

WASHER

WASHER - thrust, center bearing

1шт.

34

A41871

DRIVE

DRIVE ASSY. - starter

1шт.

35

R15049

COLLAR

COLLAR - stop, starter drive

1шт.

36

R15048

RING

RING - snap, collar

1шт.

37

A25385

WASHER

WASHER - thrust, starter drive

1шт.

38

G44891

SOLENOID

SOLENOID ASSY. (See Figure 71C)

1шт.

39

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

SCREW - solenoid to drive hsg. (1/4 x 1/2" N.C. rd. hd.)

2шт.

40

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

41

A40218

PLUNGER

PLUNGER - solenoid

1шт.

42

A40221

SPRING

SPRING - plunger return

1шт.

43

A42126

GASKET

BOOT - solenoid cover

1шт.

44

A40220

LEVER

LEVER - shift

1шт.

45

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, , shift lever to plunger 3/16" x 13/16", Slotted

1шт.

46

A40226

FRAME

HOUSING ASSY. - drive end, Includes: Ref. 47 - 49

1шт.

47

R15129

WICK

WICK - oil

1шт.

48

221-1041

PLUG

PLUG - oil wick hole

1шт.

49

A25387

BEARING

BUSHING - housing (15/32 x 5/8 x 13/16")

1шт.

50

R15041

SPARE PART PIN - drive end housing

1шт.

51

A40520

BOLT

STUD - pivot, shift lever

1шт.

52

A42181

SEALING WASHER

WASHER - lock, pivot stud (Seal type)

2шт.

53

425-145

JAM NUT,Jam, 5/16"-18, G5

NUT, , Pivot stud Jam, 5/16"-18, G5

1шт.
