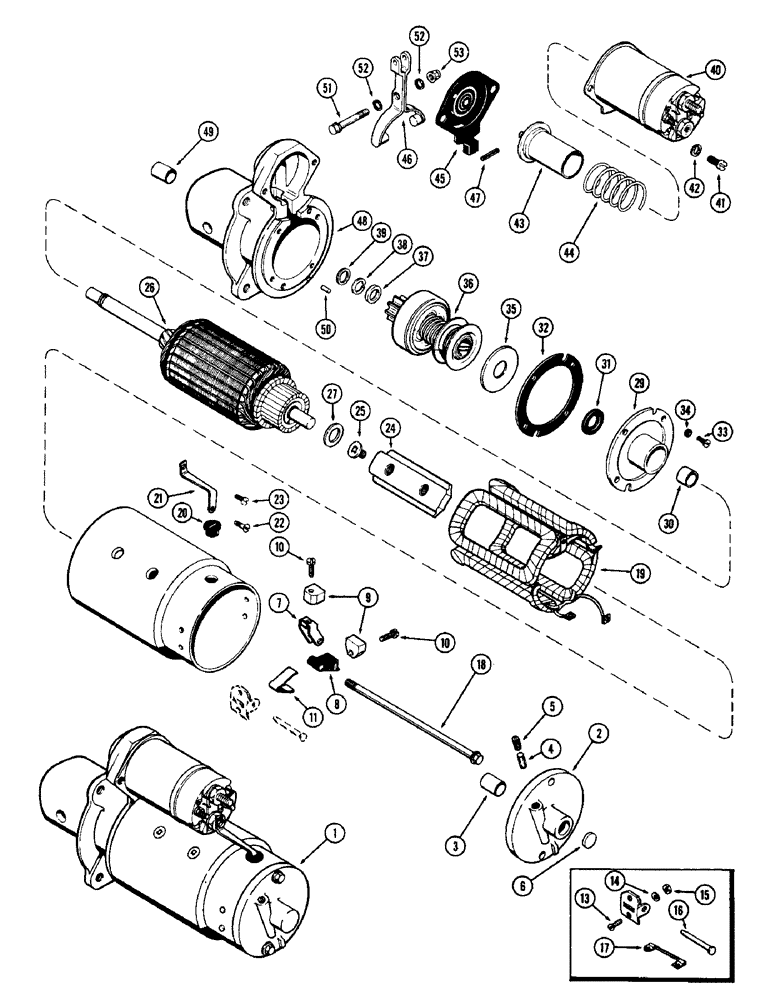

Запчасти Case 480CK (070) - A36583 STARTER, (188) DIESEL ENGINE

1

A36583

STARTER MOTOR

STARTING MOTOR - (Delco Remy #1107583) (See figure 71C for rebuild starter kit), Includes: Ref. 2 - 53

1шт.

1

104198A2R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104198A1C

CORE-STARTER

Return Part Number

1шт.

2

A25304

FRAME

HEAD ASSY. - commutator end, Includes: Ref. 3 - 6

1шт.

3

R15020

BUSHING

BUSHING - armature shaft

1шт.

4

A41979

WICK

WICK - oil

1шт.

5

221-1041

PLUG

PLUG - oil hole, 1/8" P.T. slotted hd.

1шт.

6

R15021

PLUG

PLUG - bushing hole

1шт.

7

A40217

HOLDER

HOLDER - brush ground

1шт.

8

R15027

HOLDER

HOLDER - brush, insulated

2шт.

9

A25356

BRUSH, COMMUTATOR

BRUSH BRUSH - armature

4шт.

10

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush to holder

4шт.

11

A25359

SPRING

SPRING - brush tension

2шт.

12

A25379

KIT

SUPPORT KIT - brush holder, Includes: Ref. 13 - 17

2шт.

13

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

SCREW - support, #10-24 x 1/2" rd. hd.

2шт.

14

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

15

R15052

SPARE PART NUT - holder screw (#10-24 hex)

2шт.

16

A41983

PIN

PIN -, Serial Range: holder-support

1шт.

17

A42494

ELECTRICAL WIRE

WIRE LEAD - brush ground

1шт.

18

A25552

BOLT

BOLT - thru

2шт.

19

A25319

COIL

COIL ASSY. - field

1шт.

20

A41980

GROMMET

GROMMET - coil connector

1шт.

21

A40225

CONNECTOR, ELEC

CONNECTOR CONNECTOR -, Serial Range: coil-solenoid

1шт.

22

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

SCREW - conn. to coil, #10-32 x 7/16" rd. hd.

1шт.

23

A42023

SCREW,#10 - 32 x 1/2"

SCREW -, Serial Range: conn.-solenoid

1шт.

24

A25391

SHOE

SHOE - pole

4шт.

25

74-610

SCREW,3/8" - 24 x 5/8"

SCREW - pole shoe, 3/8 x 5/8" N.F. flat hd.

8шт.

26

A40219

ARMATURE

ARMATURE

1шт.

27

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

WASHER - brake, commutator end

1шт.

A40223

PLATE

PLATE ASSY. - center bearing, Includes: Ref. 29 - 31

1шт.

29

NSS

NOT SOLD SEPARAT

PLATE - center bearing (Order A40223)

1шт.

30

A41982

BUSHING

BEARING - center plate

1шт.

31

A40228

OIL SEAL

OIL SEAL - brg. (3/4" I.D. x 1-1/4" O.D.)

1шт.

32

A41981

GASKET

GASKET - center bearing

1шт.

33

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

SCREW - brg. plate to housing, #10-32 x 3/8" rd. hd.

4шт.

34

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

35

R15043

WASHER

WASHER - thrust, center bearing

1шт.

36

A41871

DRIVE

DRIVE - starter

1шт.

37

R15049

COLLAR

COLLAR - stop, starter drive

1шт.

38

R15048

RING

RING - snap, collar retaining

1шт.

39

A25385

WASHER

WASHER - thrust, starter drive

1шт.

40

G44891

SOLENOID

SOLENOID ASSY. (See Figure 71C)

1шт.

41

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

SCREW - solenoid to housing (1/4 x 1/2" N.C. rd. hd.)

2шт.

42

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

43

A40218

PLUNGER

PLUNGER - solenoid

1шт.

44

A40221

SPRING

SPRING - plunger return

1шт.

45

A40222

BOOT

BOOT - solenoid cover

1шт.

46

A40220

LEVER

LEVER - shift

1шт.

47

138-93

LOCK PIN,3/16" x 13/16", Slotted

PIN, , lever to plunger 3/16" x 13/16", Slotted

1шт.

48

A40224

FRAME

HOUSING ASSY. - drive end, Includes: Ref. 49

1шт.

49

A40227

BUSHING

BUSHING - housing (1/2 x 9/16 x 25/32")

1шт.

50

R15041

SPARE PART PIN - locating, drive housing

1шт.

51

A40520

BOLT

STUD - pivot, shift lever

1шт.

52

A42181

SEALING WASHER

WASHER - pivot stud (Seal type)

2шт.

53

425-145

JAM NUT,Jam, 5/16"-18, G5

NUT, , Pivot stud Jam, 5/16"-18, G5

2шт.
