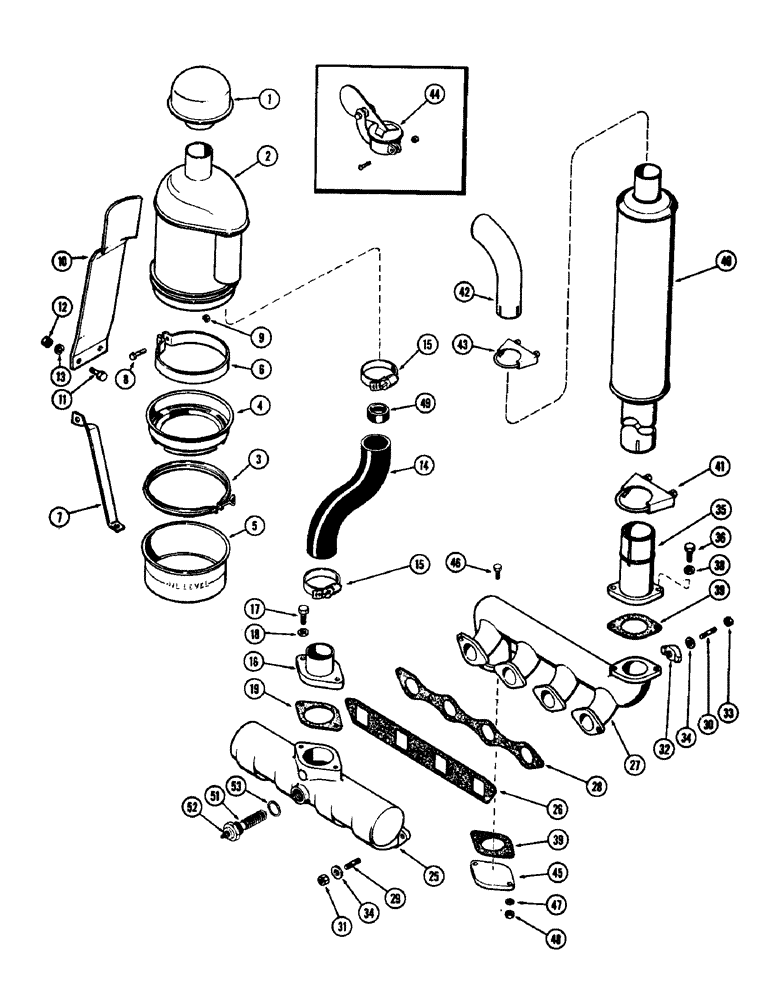

Запчасти Case 480CK (006) - AIR CLEANER, MANIFOLD, MUFFLER, (188) DIESEL ENGINE

1

D22685

CAP

ASSY. - air cleaner

1шт.

2

A35585

AIR CLEANER

CLEANER ASSY. - air, Includes: Ref. 3 - 5

1шт.

3

G45153

CLAMP

ASSY. - oil cup retainer

1шт.

4

G46324

CUP

- oil, inner

1шт.

5

G46325

CUP

- oil, outer

1шт.

6

G15614

BAND - air cleaner mounting

2шт.

7

A37788

BRACE - air, Serial Range: cleaner-manifold

1шт.

8

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex. hd., 1/4 x 1-3/4" N.C.

2шт.

9

131-48

LOCK NUT,1/4"-20, GB

NUT - hex. lock, 1/4" N.C.

2шт.

10

A36056

BRACE - air cleaner

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

25-106

NUT,3/8"-16, G5

- hex,. 3/8" N.C.

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

A35589

LARGE HOSE

HOSE - air, Serial Range: cleaner-manifold

1шт.

15

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, 2-5/16" to 3-1/4"

2шт.

16

A37098

FLANGE

- manifold inlet

1шт.

17

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

D22670

GASKET

- flange mounting

1шт.

25

A35782

MANIFOLD

- intake

1шт.

26

G46871

GASKET

- intake manifold mounting

1шт.

27

G2113

EXHAUST MANIFOLD

MANIFOLD - exhaust

1шт.

28

G46872

MANIFOLD GASKET

- exhaust manifold mounting

1шт.

29

A29431

STUD

- manifold mounting (3/8" N.C. x 1-3/4")

4шт.

30

A35175

STUD

- mtg., int. & exh. manifold (3/8" N.C. x 2-7/16")

5шт.

31

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

5шт.

32

A35028

CLAMP

- manifold retainer

6шт.

33

131-903

NUT,3/8"-16

NUT - hex., 3/8" N.C. (Seez-Pruf)

5шт.

34

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

10шт.

35

G2125

OUTLET

- exh. manifold (w/upright muffler)

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

G46853

MANIFOLD GASKET

- exh. outlet & cover plate

2шт.

40

A39020

MUFFLER

- exhaust (Black) (Replaces G45264)

1шт.

41

A13240

CLAMP,2-5/8" ID

ASSY. - muffler retaining

1шт.

42

A39023

PIPE

- exhaust extension (Black) (Replaces A38182), Start Serial: 8321776

1шт.

44

G45048

CAP

ASSY. - weather, muffler (w/upright muffler), Serial Range: -8321776

1шт.

45

A38188

PLATE

COVER - opening, exhaust manifold (Replaces G2044)

1шт.

46

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex. hd., 3/8 x 1-1/2" N.C.

2шт.

47

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.

48

131-903

NUT,3/8"-16

NUT - hex., 3/8" N.C. (Seez-Pruf)

2шт.

49

A36420

HOSE - spacing, air cleaner

1шт.

51

A37775

HEATER

ASSY. - manifold, Includes: Ref. 52

1шт.

52

129-503

NUT,1/4"-20, Brass

1шт.

53

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.
