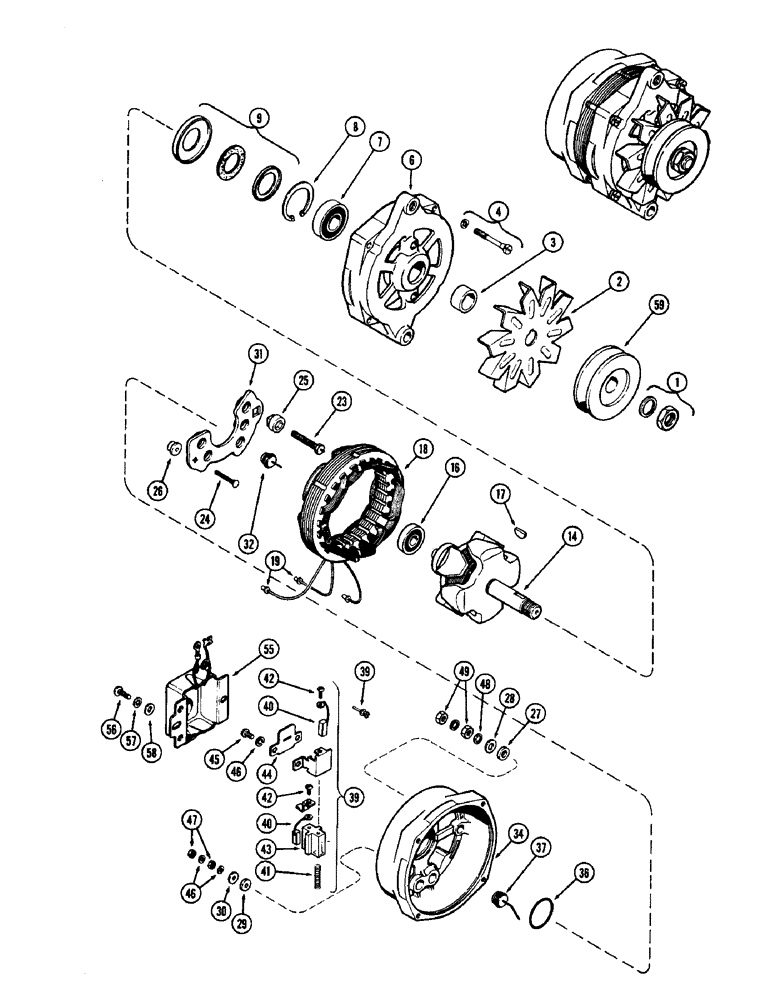

Запчасти Case 480CK (066) - A38815 ALTERNATOR, (188) DIESEL AND (148) SPARK IGNITION ENGINES
№
Артикул
Название
Примечание
Количество
A38815
ALTERNATOR
ALTERNATOR ASSY. - production only (Eltra #ALK-7314) (Order A42776, A42777 & A42098), Includes: Ref. 1 - 49
1шт.
A42776
ALTERNATOR
ALTERNATOR ASSY. - service only (Eltra #ALK-6314-S) (Does not incl. pulley or regulator), Includes: Ref. 1 - 49
1шт.
A45324
ALTERNATOR
SPARE PART ALTERNATOR - 12 Volt 35 AMP
1шт.
87746858
REMAN-ALTERNATOR
480CK
1шт.
AC187508
CORE-ALTERNATOR
Return Part Number
1шт.
104025A1R
REMAN-ALTERNATOR
Remanufactured 12 VOLT, 35 AMP Alternator
1шт.
104025A1C
CORE-ALTERNATOR
Return Part Number, 12 VOLT, 35 AMP Alternator
1шт.
103799A1R
REMAN-ALTERNATOR
Remanufactured Alternator- 12V 63A
1шт.
103799A1C
CORE-ALTERNATOR
Return Part Number, Alternator - 12V 63A
1шт.
87297244
REMAN-ALTERNATOR
Remanufactured Alternator - 12V 61A
1шт.
87297245
CORE-ALTERNATOR
Return Part Number, Alternator - 12V 61A
1шт.
A187916GV
ALTERNATOR
Value
1шт.
AR187916
REMAN-ALTERNATOR
45A 24V
1шт.
AC187916
CORE-ALTERNATOR
Return Part Number
1шт.
1
A40581
KIT
PACKAGE - nut & washer, rotor shaft
1шт.
2
A41066
FAN
FAN - ventilating
1шт.
3
A41078
BUSHING
SPACER - rotor shaft
1шт.
4
A41081
SPARE PART PACKAGE - thru bolt (Set of 4 includes washers)
1шт.
6
A42262
HEAD
SPARE PART HEAD ASSY. - drive end, Includes: Ref. 7 - 12
1шт.
7
A42263
BALL
BEARING - ball
1шт.
8
NSS
NOT SOLD SEPARAT
RING - snap, bearing retainer
1шт.
9
A42268
KIT
PACKAGE - retainer & seal, Includes: Ref. 10 - 12
1шт.
10
NSS
NOT SOLD SEPARAT
RETAINER - seal
1шт.
11
NSS
NOT SOLD SEPARAT
SEAL - felt
1шт.
12
NSS
NOT SOLD SEPARAT
RETAINER - felt seal
1шт.
14
A42774
KIT
ROTOR ASSY. - alternator
1шт.
16
A41077
BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"
BEARING - ball, rotor shaft (Sealed)
1шт.
17
126-112
WOODRUFF KEY,#6, 5/32" x 5/8", HT
WOODRUFF KEY, , Pulley #6, 5/32" x 5/8", HT
1шт.
18
A42775
STATOR
STATOR ASSY. - alternator
1шт.
19
A41065
KIT
PACKAGE - eyelet, wire end (Set of 6)
1шт.
A42771
STUD
PACKAGE - terminal stud, Includes: Ref. 23 - 30
1шт.
23
NSS
NOT SOLD SEPARAT
STUD - battery terminal
1шт.
24
NSS
NOT SOLD SEPARAT
STUD - auxiliary terminal
1шт.
25
NSS
NOT SOLD SEPARAT
BUSHING - insulation, battery terminal
1шт.
26
NSS
NOT SOLD SEPARAT
BUSHING - insulation, auxiliary term.
1шт.
27
NSS
NOT SOLD SEPARAT
WASHER - insulating, battery terminal
1шт.
28
NSS
NOT SOLD SEPARAT
WASHER - plain, battery terminal
1шт.
29
NSS
NOT SOLD SEPARAT
WASHER - insulating, auxiliary terminal
1шт.
30
NSS
NOT SOLD SEPARAT
WASHER - plain, auxiliary, terminal
1шт.
31
A42773
HEAD (CYLINDER)
PLATE ASSY. - rectifier
1шт.
32
A41075
DIODE
DIODE - positive
1шт.
34
A42772
SPARE PART HEAD ASSY. - slip ring end, Includes: Ref. 36 - 38
1шт.
36
A41072
O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro
"O" RING - sealing
1шт.
37
A41071
DIODE
DIODE - negative
4шт.
38
A42266
KIT
PACKAGE - plugs (Set of 10)
1шт.
39
A42495
HOLDER
HOLDER ASSY. - brush, Includes: Ref. 40 - 43
1шт.
40
A41063
BRUSH, COMMUTATOR
BRUSH BRUSH SET - alternator (Set of 2)
1шт.
41
A41064
VALVE SPRING
SPRING - brush set (Set of 2)
1шт.
42
NSS
NOT SOLD SEPARAT
SCREW - machine, brush retainer
2шт.
43
NSS
NOT SOLD SEPARAT
CLIP - brush holder
1шт.
44
A41073
COVER
INSULATION - brush holder cover
1шт.
45
187-1012
SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"
SCREW - #10-24 x 3/8" rd. hd.
2шт.
46
92-3
LOCK WASHER,#10
WASHER, LOCK, #10
8шт.
47
129-667
NUT,#10-32, LH
NUT - jam, #10-32 hex
2шт.
48
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
49
131-902
NUT,1/4"-28
NUT - 1/4" N.F. hex
2шт.
55
A42098
VALVE
REGULATOR ASSY. - voltage
1шт.
56
NSS
NOT SOLD SEPARAT
SCREW - machine, regulator mounting
2шт.
57
NSS
NOT SOLD SEPARAT
WASHER - lock
2шт.
58
NSS
NOT SOLD SEPARAT
WASHER - plain
2шт.
59
A42777
PULLEY
PULLEY - drive, alternator
1шт.
This is a 3" pulley which subs to a 2.5" pulley (part nbr A41082).
1шт.
Выбрано товаров: 63
