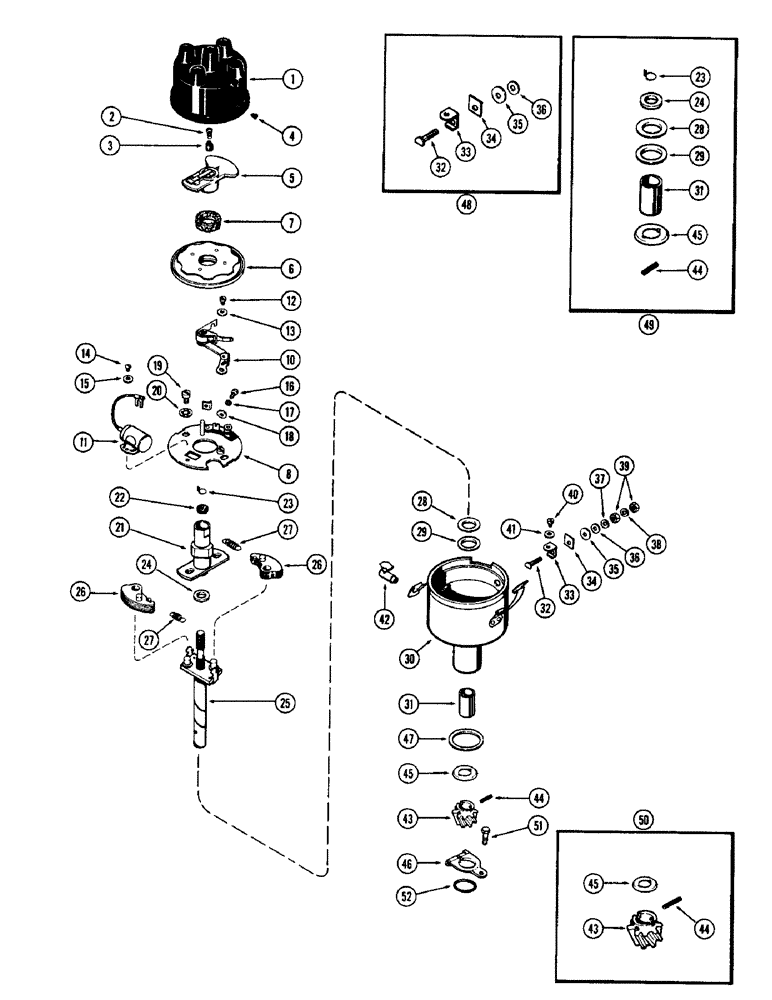

Запчасти Case 480CK (065A) - G11051 DISTRIBUTOR, WITHOUT TACHOMETER DRIVE

G11051

DISTRIBUTOR

ASSY. (Prestolite #IAD-6003-2J), Includes: Ref. 1 - 1 - 39

1шт.

1

A8368

CAP

ASSY. - distributor, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - brush tension

1шт.

3

NSS

NOT SOLD SEPARAT

BRUSH - contact

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG - rubber, vent hole

1шт.

5

A8369

ROTOR

- contact

1шт.

6

A25194

PLATE

COVER ASSY - breaker plate, Includes: Ref. 7

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - dust, felt

1шт.

8

A25196

PLATE

ASSY. - breaker, Includes: Ref. 10 - 18

1шт.

A40929

KIT

- points & condenser, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

POINT SET - breaker (Order A40929)

1шт.

11

NSS

NOT SOLD SEPARAT

CONDENSER - breaker (Order A40929)

1шт.

12

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

13

177-72

SCREW - point set (#8-32 x 16)

1шт.

14

177-56

SCREW - condenser (#6-32 x 3/16" fill hd.)

1шт.

1

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

16

171-216

SCREW,Sl Flat Hd, #6 - 32 x 5/16"

- spring clamp (#6-32 x 5/16" flat hd.)

1шт.

17

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

18

195-6

WASHER,#6

- flat #6

1шт.

19

177-94

SCREW,Sl Fil Hd, #10 - 32 x 5/16"

- plate (#10-32 x 15/16" fill hd.)

2шт.

20

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

21

A25193

CAM

ASSY. - distributor

1шт.

22

NSS

NOT SOLD SEPARAT

WICK - oiler

1шт.

23

A25180

RING, SNAP

RING - snap (See A40322)

1шт.

24

A25197

SPACER

- cam (See A40322)

1шт.

25

A25177

SHAFT

- drive

1шт.

26

A25198

WEIGHT

- governor

2шт.

27

A25208

SET

SPRING KIT - governor weight (Set of 2)

1шт.

28

A24752

WASHER

- thrust, inner (See A40322)

1шт.

29

A24753

WASHER

- thrust, outer (See A40322)

1шт.

30

NSS

NOT SOLD SEPARAT

BASE ASSY. (Order G11051)

1шт.

31

NSS

NOT SOLD SEPARAT

BEARING - drive shaft (Order A40322)

1шт.

32

NSS

NOT SOLD SEPARAT

CONTACT - lo-tension termial (Order A40321)

1шт.

33

NSS

NOT SOLD SEPARAT

CONNECTOR - lo-tension (Order A40321)

1шт.

34

NSS

NOT SOLD SEPARAT

INSULATION - inner (Order A40321)

1шт.

35

NSS

NOT SOLD SEPARAT

BUSHING - insulator (Order A40321)

1шт.

36

NSS

NOT SOLD SEPARAT

INSULATION - contact order (Order A40321)

1шт.

37

195-5

WASHER

- #10 plain

1шт.

38

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

39

129-27

NUT,Hex, #10 - 32

- hex #10-32

2шт.

40

174-56

SCREW - connector (#6-32 x 3/16" rd. hd), Includes: Ref. 41 - 45

1шт.

41

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

1шт.

42

A24887

OILER - drive shaft

1шт.

43

NSS

NOT SOLD SEPARAT

GEAR - drive (Order A40323)

1шт.

44

138-56

LOCK PIN,1/8" x 11/16", Slotted

PIN, (See A40323) 1/8" x 11/16", Slotted

1шт.

45

A25200

WASHER

- thrust gear (See A40322 & A40323)

1шт.

46

A29989

ARM

ASSY. - advance

1шт.

47

A30080

THRUST WASHER

- thrust, advance arm

1шт.

48

A40321

KIT

- terminal stud

1шт.

49

A40322

KIT

- shaft bearing, distributor

1шт.

50

A40323

GEAR

KIT - gear, distributor drive

1шт.

51

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

52

A29456

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" RING - distributor to block (1-1/16 x 1-5/16 x 1/8")

1шт.
