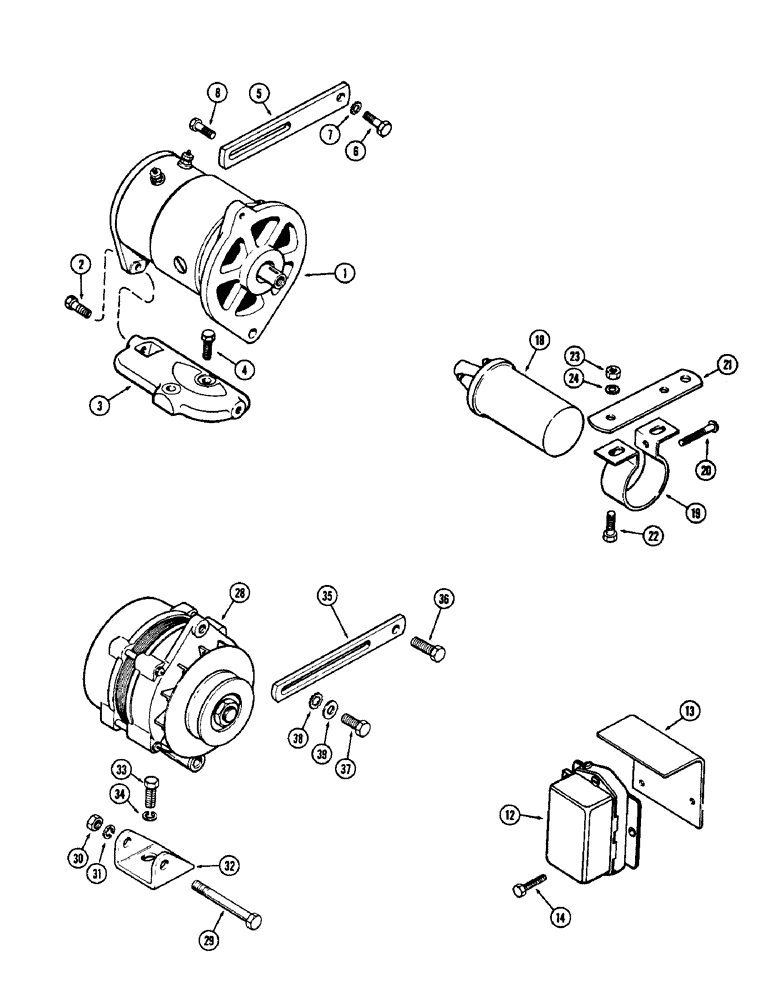

Запчасти Case 480CK (063E) - ELECTRICAL MOUNTING PARTS AND HARDWARE, (148B) SPARK IGNITION ENGINE

1

A41452

GENERATOR ASSY. - less pulley & fan (See Figure 69A)

1шт.

2

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16 x 1" N.C. hex

2шт.

3

A38746

BRACKET

- generator mounting (Replaces G2131)

1шт.

4

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- 5/16 x 1-3/8" N.C. hex hd

2шт.

5

G11344

STRAP - generator adjusting

1шт.

6

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

7

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

- 5/16 x 1-1/4" N.C. hex

1шт.

12

A36194

REGULATOR

- voltage

1шт.

13

A38230

SHIELD

- voltage regulator

1шт.

14

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4 x 3/4" N.F. hex

3шт.

18

A40778

COIL

- ignition (6 volt) (Used w/alternator)

1шт.

18

A41820

COIL

- ignition (12 volt) (Used w/generator)

1шт.

19

G46106

BRACKET

- coil mounting, Includes: Ref. 20

1шт.

20

187-540

SCREW - #10 x 1-1/2" self tapping

1шт.

21

G11705

BRACKET

STRAP - coil, Serial Range: support-engine

1шт.

22

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

23

9635082

NUT,5/16" - 18, Gr 5

2шт.

24

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

28

A38815

ALTERNATOR

ASSY. - (See Figure 66) (Order A-42776, A42777 & A42098)

1шт.

29

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

30

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

31

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

A38492

BRACKET

- alternator mounting

1шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

34

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

35

A59167

STRAP

- alternator adjusting

1шт.

36

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

37

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

38

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

39

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

1шт.
