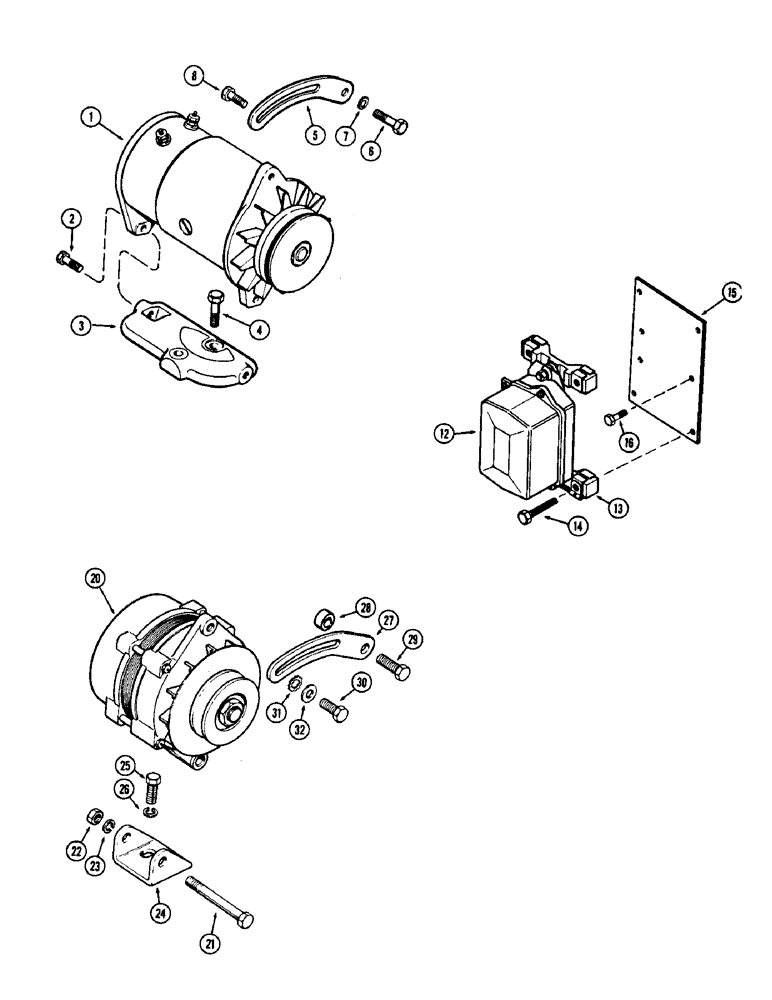

Запчасти Case 480CK (063C) - ELECTRICAL MOUNTING PARTS AND HARDWARE, (188) DIESEL ENGINE

1

A36563

GENERATOR

ASSY. (Repairs figure 68)

1шт.

2

13-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- 5/16 x 1-3/8" N.C. hex hd.

2шт.

3

A38746

BRACKET

- generator mounting (Replaces G2131)

1шт.

4

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

5

A37017

STRAP

- generator adjusting

1шт.

6

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

7

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

8

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8 x 1-1/4" N.C. hex

1шт.

12

A41464

REGULATOR

- voltage (Replaces A36564)

1шт.

13

D32596

MOUNTING PARTS

MOUNTING KIT - regulator shock absorber

1шт.

14

114-6

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 5

4шт.

15

A37405

PLATE - regulator mounting

1шт.

16

114-5

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- 1/4 x 3/4" N.F. hex

3шт.

20

A38815

ALTERNATOR

ASSY. (See Figure 66) (Order A42776, A42777 & A42098)

1шт.

21

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

22

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

24

A38492

BRACKET

- alternator mounting

1шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

27

A37017

STRAP

- alternator adjusting

1шт.

28

G11271

SPACER

-, Serial Range: strap-cover

1шт.

29

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

30

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

32

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

1шт.
