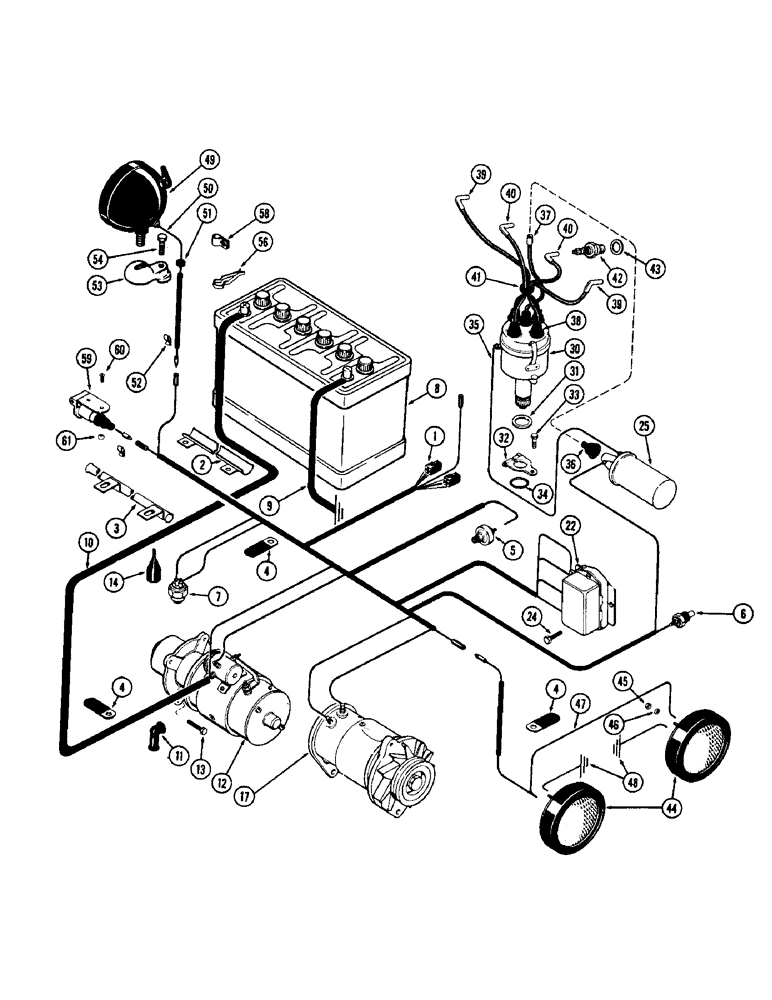

Запчасти Case 480CK (063A) - ELECTRICAL EQUIPMENT AND WIRING, (148B) SPARK IGNITION ENGINE, USED PRIOR TO TRACTOR S/N 8656686

1

A37514

HARNESS

ASSY. - main wire (Includes plugs)

1шт.

2

A37506

CONDUIT - wire (Under fuel tank)

1шт.

3

A37511

X

CONDUIT - wire (On transmission case)

1шт.

4

A37179

CLIP

- wire

1шт.

5

A13794

TRANSMITTER

UNIT - sender, engine oil pressure

1шт.

6

A21462

SENDER UNIT

UNIT - sender, engine temperature

1шт.

7

A20990

SWITCH

- safety, neutral start

1шт.

8

F22631

DRY BATTERY

(12 volt)

1шт.

9

A27985

CABLE

- battery ground (13" long)

14шт.

10

A21486

CABLE

-, Serial Range: battery-starter

1шт.

11

A21753

CAP

NIPPLE - cable to starter solenoid

1шт.

12

A36581

MOTOR ASSY. - starting (Repairs figure 73A)

1шт.

13

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex

3шт.

14

A20991

BOOT

- dust, neutral start switch

1шт.

17

A41452

GENERATOR ASSY. - less pulley & fan (See Figure 69A) (See Figure 63E for mtg. parts) (Replaces A36195)

1шт.

22

A36194

REGULATOR

- voltage (See Figure 63E for mtg. parts)

1шт.

25

A41820

COIL

- ignition (See Figure 63E for mtg. parts)

1шт.

30

G11051

DISTRIBUTOR

ASSY. - w/out tach. drive (See Figure 65A)

1шт.

35

G13085

ELECTRICAL WIRE

WIRE - lo-tension, dist. to coil (12")

1шт.

36

G46803

BOOT

NIPPLE - coil wire

1шт.

37

CASA30038

CABLE

WIRE - hi-tension, coil to dist. (11")

1шт.

38

A29338

COVER

NIPPLE - distributor wire

5шт.

39

A29994

CABLE

WIRE - #1 & #4 spark plugs (10-1/2")

2шт.

40

A30018

CABLE

WIRE - #2 & #3 spark plugs (8-1/2" long)

2шт.

41

A30109

WASHER

RING - wire harness

1шт.

42

A44840

HOUSING

PLUG ASSY. - spark, engine, Includes: Ref. 43

4шт.

43

G46839

GASKET

- spark plug

1шт.

44

D30243

LAMP

ASSY. - head (See Figure 74)

2шт.

45

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

6шт.

46

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

47

D39242

ELECTRICAL WIRE

WIRE ASSY. - head lamp

1шт.

48

A11768

ELECTRICAL WIRE

WIRE - ground, head lamp

2шт.

49

A20965

LAMP BASE

LAMP - flood & tail (See Figure 74)

1шт.

50

A37516

WIRE - tail, Serial Range: lamp-harness

1шт.

51

A27338

GROMMET

- rubber, fender

1шт.

52

G46047

CLIP - tail light wire to fender & tool box

2шт.

53

A34046

BRACKET

- mounting, flood & tail lamp

1шт.

54

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

56

A37975

CLIP

- tail light harness

2шт.

58

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLIP - tail light wire to fender

1шт.

59

A8170

SOCKET

- auxiliary outlet

1шт.

60

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" rd. hd.

2шт.

61

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 Keps

2шт.
