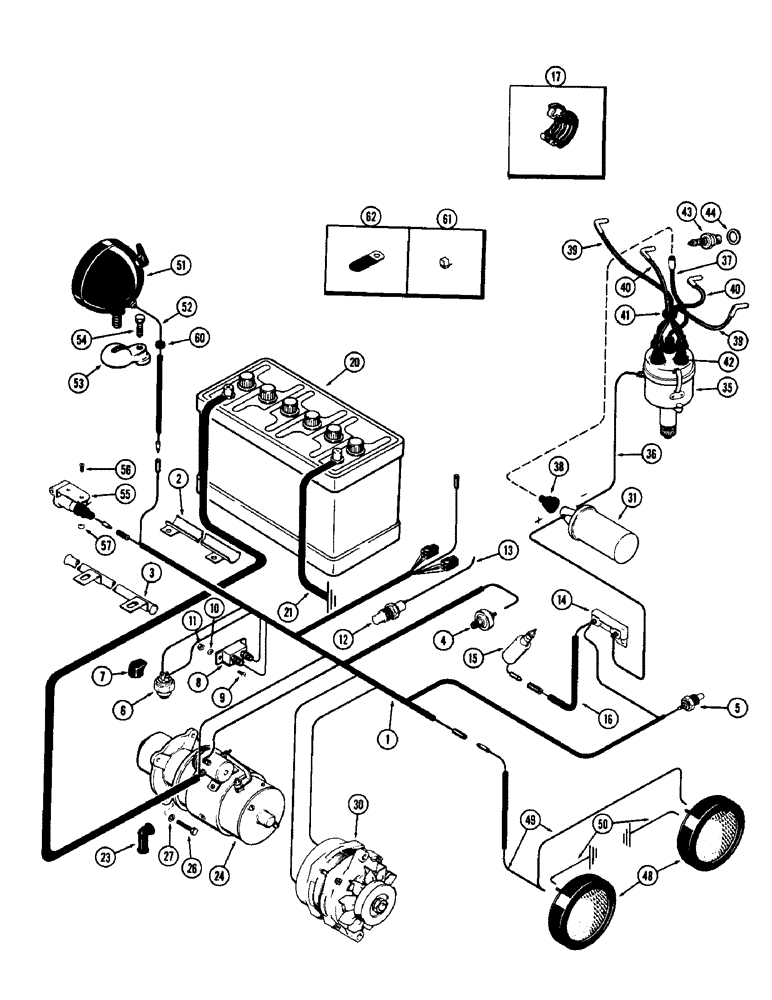

Запчасти Case 480CK (062) - ELECTRICAL EQUIPMENT AND WIRING, (148B) SPARK IGNITION ENGINE, FIRST USED TRACTOR SERIAL NO. 8656686

1

A38950

HARNESS

HARNESS ASSY. - main wire (Includes plugs)

1шт.

2

A37506

SPARE PART CONDUIT - wire (Under fuel tank)

1шт.

3

A38826

CONDUIT

CONDUIT - wire (On trans. case)

1шт.

4

A13794

TRANSMITTER

SENDER - engine oil pressure

1шт.

5

A21462

SENDER UNIT

SENDER SENDER - engine temperature

1шт.

6

A20990

SWITCH

SWITCH - safety, neutral start

1шт.

7

A61028

BOOT

BOOT - safety switch

1шт.

8

A22877

BREAKER,40A

BREAKER - circuit

1шт.

9

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

SCREW - #8 x 3/8" N.C. rd. hd.

2шт.

10

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

11

129-16

NUT,#8-32

NUT, #8-32

2шт.

14

A24504

RESISTOR

RESISTOR - ballast

1шт.

15

A41472

SOLENOID

SOLENOID - fuel shut-off (On carb.)

1шт.

16

A38244

SPARE PART WIRE - shut-off, Serial Range: solenoid-resistor

1шт.

17

L37100

CLAMP - wire

1шт.

20

A37473

BATTERY

BATTERY - 12 volt

1шт.

21

A27985

CABLE

CABLE - battery ground 13" long

1шт.

22

A38415

CABLE

CABLE - battery to starter solenoid

1шт.

23

A21753

CAP

NIPPLE - solenoid terminal

1шт.

24

A36584

STARTING MOTOR

STARTER (Prestolite #MDU-7104A) (Repairs figure 72)

1шт.

24

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

24

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

26

113-219

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

3шт.

27

192-72

WASHER - lock, 3/8" int.-ext Shakeproof

3шт.

30

A38815

ALTERNATOR

ALTERNATOR ASSY. - (Repairs page 66) (Order A42776, A42777 & A42098) (See Figure 63E for mounting parts)

1шт.

31

A40778

COIL

COIL - ignition (See Figure 63E for mounting parts)

1шт.

32

A38832

ELECTRICAL WIRE

WIRE WIRE -, Serial Range: resistor-coil

1шт.

35

A18461

DISTRIBUTOR

SPARE PART DISTRIBUTOR ASSY. (w/tach drive) (Replaces figure 64)

1шт.

36

A25965

HARNESS

WIRE - dist to coil (Lo tension)

1шт.

37

CASA30038

CABLE

WIRE - coil to dist (Hi tension)

1шт.

38

G46803

BOOT

NIPPLE -, Serial Range: wire-coil

1шт.

39

A29994

CABLE

WIRE - #1 & #4 spark plug (10-1/2")

2шт.

40

A30018

CABLE

WIRE - #2 & #3 spark plug (8-1/2")

2шт.

41

A30109

WASHER

RING - harness, dist. wires

1шт.

42

A29338

COVER

NIPPLE - wires to dist. cap

5шт.

43

G44840

SPARK PLUG

PLUG ASSY. - spark, Includes: Ref. 44

4шт.

44

G46839

GASKET

GASKET - spark plug

1шт.

48

D30243

LAMP

LAMP ASSY. - head (Repairs figure 74)

2шт.

49

D39242

ELECTRICAL WIRE

WIRE WIRE ASSY. - head, Serial Range: lamp-harness

1шт.

50

A11768

ELECTRICAL WIRE

WIRE WIRE - ground, head lamp

2шт.

51

A20965

LAMP BASE

LAMP ASSY. - flood & tail (Repairs figure 74)

1шт.

52

A37516

SPARE PART WIRE - tail, Serial Range: clamp-harness

1шт.

53

A34046

BRACKET

BRACKET -, Serial Range: lamp-fender

1шт.

54

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/2", G5

1шт.

55

A8170

SOCKET

SOCKET - auxiliary outlet

1шт.

56

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

SCREW - #10-32 x 1/2" rd. hd.

2шт.

57

193-1000

NUT,Keps, w/LW,#10-32

NUT - #10-32 Keps

2шт.

60

A27338

GROMMET

GROMMET -, Serial Range: wire-fender

1шт.

61

A46047

SPARE PART CLIP - rear wires

4шт.

62

A37179

CLIP

CLIP - wire harness

5шт.
