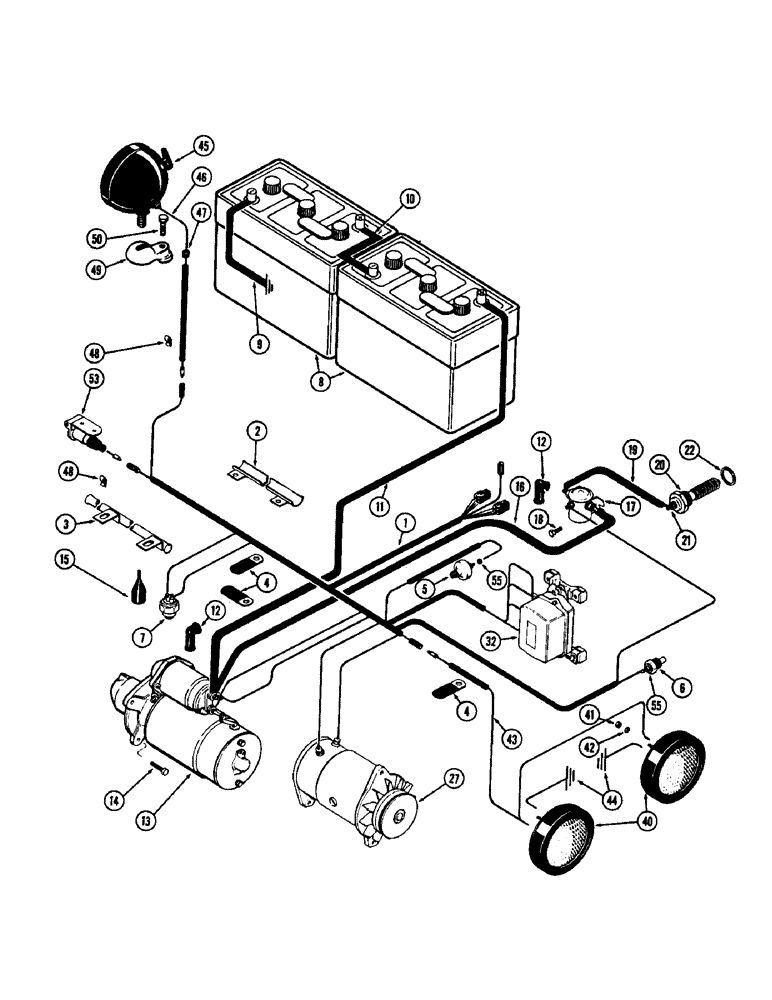

Запчасти Case 480CK (061A) - ELECTRICAL EQUIPMENT & WIRING, (188) DIESEL ENG., USED W/ GENERATOR, USED PRIOR TO TRAC. S/N 8656686

1

A37514

HARNESS

ASSY. - main wire (Includes plugs)

1шт.

2

A37506

CONDUIT - wire (Under fuel tank)

1шт.

3

A37511

X

CONDUIT - wire (On transmission case)

1шт.

4

A37179

CLIP

- wire

1шт.

5

A13794

TRANSMITTER

UNIT - sender, engine oil pressure

1шт.

6

A21462

SENDER UNIT

UNIT - sender, engine temperature

1шт.

7

A20990

SWITCH

- safety, neutral start

1шт.

8

D44313

BATTERY (6 volt)

2шт.

9

A27985

CABLE

STRAP - battery ground

1шт.

10

A37515

ELECTRIC CABLE

CABLE -, Serial Range: battery-battery

1шт.

11

A27987

CABLE

- battery to starter motor

1шт.

12

A21753

CAP

NIPPLE - terminal, solenoid

2шт.

13

A36582

STARTER ASSY. (Delco #1107584) (See Figure 71A) (Order A36583)

1шт.

13

A36583

STARTER MOTOR

STARTER ASSY. (Delco #1107583) (See Figure 70)

1шт.

14

A38826

CONDUIT

BOLT - 3/8 x 2" N.C. hex hd.

3шт.

15

A20991

BOOT

- dust, neutral start switch

1шт.

16

A36896

CABLE PULLING GRIP

CABLE - starter to heater solenoid (6")

1шт.

17

A57069

SOLENOID

- heater

1шт.

18

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

2шт.

19

A21483

CABLE

- solenoid to heater (15-3/4" lg.)

1шт.

20

A37775

HEATER

ASSY. - manifold, Includes: Ref. 21

1шт.

21

129-503

NUT,1/4"-20, Brass

1шт.

22

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

27

A36563

GENERATOR

ASSY. (Delco #1100443) (Repairs figure 68) (See Figure 63C for mounting parts)

1шт.

32

A41464

REGULATOR

- voltage (See Figure 63C for mtg. parts)

1шт.

40

D30243

LAMP

ASSY. - head (Repairs figure 74)

2шт.

41

129-17

NUT,Hex, #10 - 24

NUT - hex #10-24

6шт.

42

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

6шт.

43

D39242

ELECTRICAL WIRE

WIRE ASSY. - head lamp

1шт.

44

A11768

ELECTRICAL WIRE

WIRE - ground, head lamp

2шт.

45

A20965

LAMP BASE

LAMP - flood & tail (Repairs figure 74)

1шт.

46

A37516

WIRE - tail, Serial Range: lamp-harness

1шт.

47

A27338

GROMMET

- rubber, fender

1шт.

48

G46047

CLIP - wire to fender & tool box

5шт.

49

A34046

BRACKET

- mounting, flood & tail lamp

1шт.

50

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

53

A8170

SOCKET

- auxiliary outlet

1шт.
