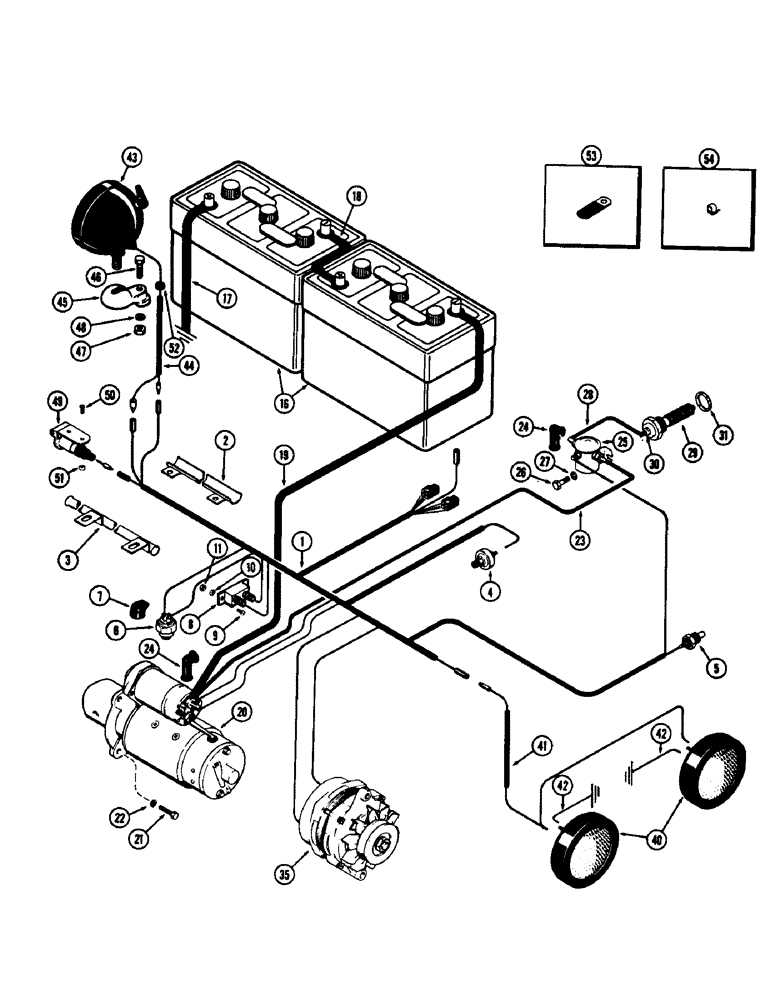

Запчасти Case 480CK (060) - ELECTRICAL EQUIPMENT AND WIRING, (188) DIESEL ENGINE, USED W/ ALTERNATOR, 1ST USED TRAC. S/N 8656686

1

A38950

HARNESS

ASSY. - main wire (Includes plugs)

1шт.

2

A37506

CONDUIT - wire harness (Under fuel tank)

1шт.

3

A38826

CONDUIT

- wire harness (On trans. case)

1шт.

4

A13794

TRANSMITTER

SENDER - engine oil pressure

1шт.

5

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

6

A20990

SWITCH

- safety, neutral start

1шт.

7

A61028

BOOT

- safety switch

1шт.

8

A22877

BREAKER,40A

- circuit

1шт.

9

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- #8 x 3/8" N.C. rd. hd.

2шт.

10

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

11

129-16

NUT,#8-32

2шт.

16

D44313

BATTERY - 6 volt

2шт.

17

A27985

CABLE

STRAP - ground, battery

1шт.

18

A37515

ELECTRIC CABLE

CABLE - jumper, battery

1шт.

19

A27987

CABLE

- battery to starter solenoid (Replaces A31061)

1шт.

20

A36582

STARTER ASSY. (Delco #1107584) (Repairs figure 71A) (Order A36583)

1шт.

20

A36583

STARTER MOTOR

STARTER (Delco #1107583) (Repairs figure 71A)

1шт.

21

113-129

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5, Full Thd

- 3/8 x 2" N.C. hex

3шт.

22

193-72

LOCK WASHER

- lock, 3/8" int.-ext. Shakeproof

3шт.

23

A36896

CABLE PULLING GRIP

CABLE - starter to heater solenoid

1шт.

24

A21753

CAP

NIPPLE - solenoid terminal

2шт.

25

A57069

SOLENOID

- heater

1шт.

26

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

27

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

2шт.

28

A21483

CABLE

-, Serial Range: solenoid-heater

1шт.

29

A37775

HEATER

ASSY. - manifold, Includes: Ref. 30

1шт.

30

129-503

NUT,1/4"-20, Brass

1шт.

31

A20916

MANIFOLD GASKET

GASKET -, Serial Range: heater-manifold

1шт.

35

A38815

ALTERNATOR

ASSY. - (Repairs figure 66) (Order A-42776, A-42777 & A42098) (See Figure 63C for mounting parts)

1шт.

40

D30243

LAMP

ASSY. - head (See Figure 74)

2шт.

41

D39242

ELECTRICAL WIRE

WIRE ASSY. - head, Serial Range: lamp-harness

1шт.

42

A11768

ELECTRICAL WIRE

WIRE - ground, head lamp

2шт.

43

A20965

LAMP BASE

LAMP ASSY. - flood & tail (See Figure 74)

1шт.

44

A37516

WIRE - tail, Serial Range: lamp-harness

1шт.

45

A34046

BRACKET

- tail, Serial Range: lamp-fender

1шт.

46

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

47

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

48

193-72

LOCK WASHER

- lock, 3/8" int.-ext. Shakeproof

1шт.

49

A8170

SOCKET

- auxiliary outlet

1шт.

50

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- #10-32 x 1/2" rd. hd.

2шт.

51

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 Keps

2шт.

52

A27338

GROMMET

- wire through fender

1шт.

53

A37179

CLIP

- wire harness

5шт.

54

G46047

CLIP - rear wire

4шт.
