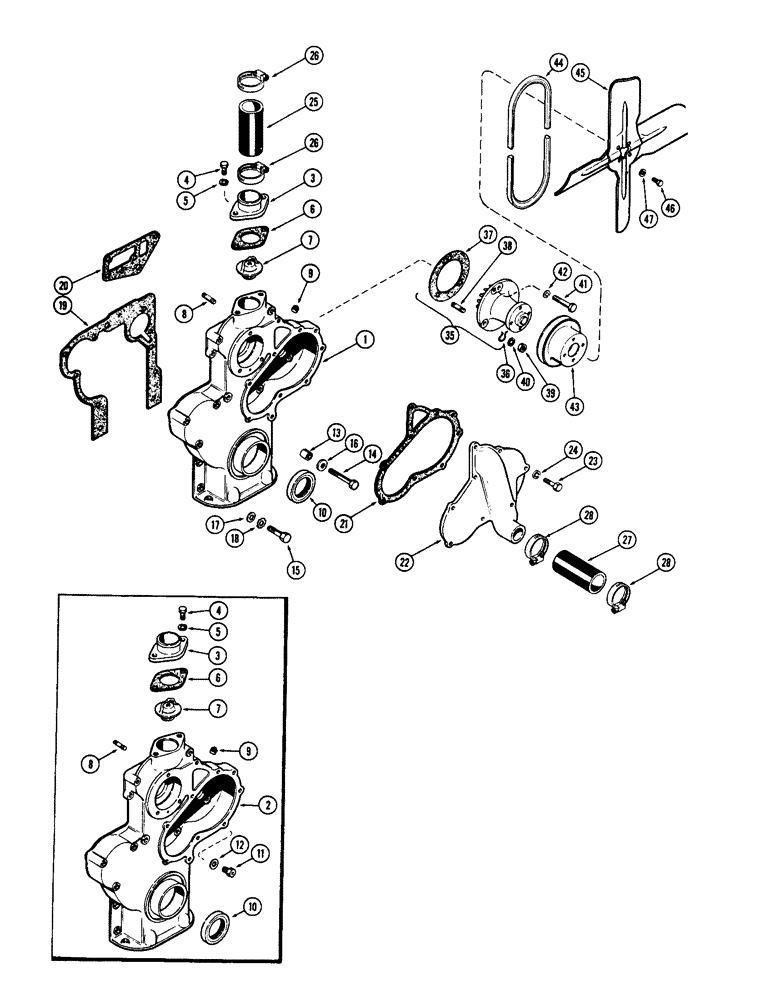

Запчасти Case 480CK (005C) - TIMING GEAR COVER, (188) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2679761

1

A38088

COVER ASSY. - timing gear (Incl. ref. 3 thru 10) (Order A38955) (See Figure 5A), Includes: Ref. 3 - 10, Serial Range: 2631491-2679761

1шт.

2

A36823

COVER

ASSY. - timing gear (Incl. ref. 3 thru 10) (Used prior to ser. no. 2631491), Includes: Ref. 3 - 10

1шт.

3

G2144

FITTING

CONNECTOR - water outlet

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

2шт.

6

G46907

GASKET

-, Serial Range: connection-cover

1шт.

7

A57641

THERMOSTAT

- water, 180 degrees (Replaces G45788)

1шт.

8

G11204

STUD

- inj. pump mtg. 3/8" N.C. x 1-7/16"

3шт.

9

221-1843

PLUG

- pipe, 3/8" socket hd.

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft 2-3/32 x 3 x 1/2"

1шт.

11

G49083

BOLT

- drilled, 1/2 x 3/4" N.C. hex. (Used w/A36823 cover)

1шт.

12

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (Used w/G49083 bolt) Int Tooth, 1/2"

1шт.

13

A29442

RING

- dowel, Serial Range: cover-block

2шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex

1шт.

14

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- 3/8 x 2-3/4" N.C. hex

3шт.

14

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex

1шт.

14

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex

3шт.

15

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

15

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex

1шт.

16

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

5шт.

17

92-6

LOCK WASHER,3/8"

12шт.

18

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

19

A38228

GASKET

- cover to block (Replaces G46857)

1шт.

20

A38084

GASKET,1.27mm Thk

- cover to head (Replaces G46858)

1шт.

21

G46859

GASKET

- gear cover mounting

1шт.

22

G2077

COVER ASSY

COVER - drive opening

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

23

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex

1шт.

24

92-6

LOCK WASHER,3/8"

9шт.

25

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper 2.00" ID x 4.88", SAE 20R2

1шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

27

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower 1.75" ID x 2.50", SAE 20R2

1шт.

28

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

35

A39074

PUMP

ASSY. - water (Replaces A37758), Includes: Ref. 36 and 37

1шт.

Use part nbr A146584 water pump (comes with 4 mounting holes even though only 3 bolts are used to mount the pump on any application - made this way so that same pump can be used for all 188D and 207D applications).

1шт.

35

A146584

PUMP, WATER

Water Pump

1шт.

35

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

35

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Water Pump

1шт.

35

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

35

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

35

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

36

A30067

RING

- retainer, water pump

1шт.

37

A38083

GASKET

- pump to cover (Replaces G46875), water

1шт.

38

A29433

STUD

- pump mtg., 3/8" N.C. x 1" (3 used some models), water

2шт.

39

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex, water pump, Includes: Ref. 40

2шт.

40

92-6

LOCK WASHER,3/8"

water pump 3/8"

2шт.

41

A38085

BOLT

- pump mtg., 3/8 x 2-7/8" N.C. hex, water

1шт.

42

A22317

WASHER

- 29/64 x 9/16 x 3/64" copper, water pump

1шт.

43

G11339

PULLEY

- fan, water pump

1шт.

44

G46238

BELT,0.55" W x 17.78" L

Fan and Generator Drive, Water Pump 0.55" W x 17.78" L

1шт.

45

G45243

FAN

- engine, water pump

1шт.

46

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Water pump Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

47

92-5

LOCK WASHER,5/16"

water pump 5/16"

4шт.
