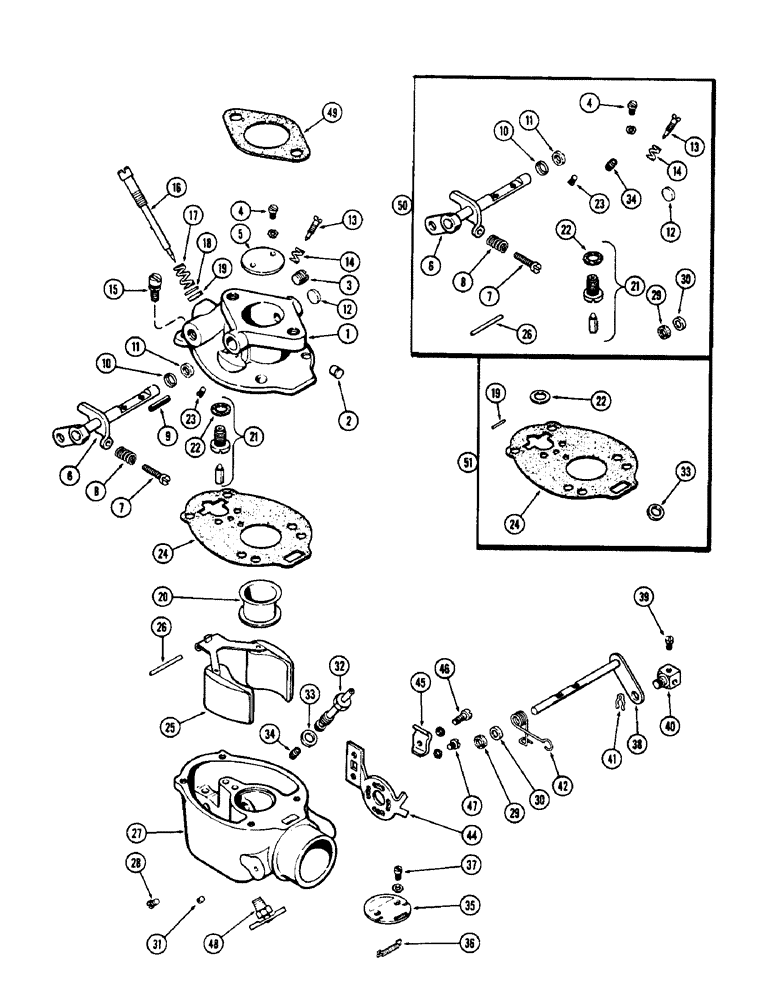

Запчасти Case 480CK (057C) - A38243 CARBURETOR WITHOUT SOLENOID

A38243

CARBURETOR

ASSY. (Marvel-Schebler #TSX-936), Includes: Ref. 1 - 48

1шт.

1

A41582

BODY ASSY. - throttle, Includes: Ref. 2 - 12

1шт.

2

B51874

PLUG - idle drilling

1шт.

3

221-1041

PLUG

- fuel inlet

1шт.

4

B51685

SCREW

- throttle plate

2шт.

Part of carburetor repair kit P/N A41580

1шт.

5

B51669

PLATE - throttle

1шт.

6

B51662

SHAFT

ASSY. - throttle, Includes: Ref. 7 - 10

1шт.

Part of carburetor repair kit P/N A41580

1шт.

7

B51680

SCREW - stop

1шт.

Part of carburetor repair kit P/N A41580

1шт.

8

B51742

SPRING

- stop screw

1шт.

Part of carburetor repair kit P/N A41580

1шт.

9

B51862

PIN - throttle stop

1шт.

10

B51853

RETAINER

- shaft packing

1шт.

Part of carburetor repair kit P/N A41580

1шт.

11

B51805

PACKING

- throttle shaft

1шт.

Part of carburetor repair kit P/N A41580

1шт.

12

B51852

CUP

PLUG - shaft end

1шт.

Part of carburetor repair kit P/N A41580

1шт.

13

B51877

SPLIT PIN

NEEDLE - idle adjusting

1шт.

Part of carburetor repair kit P/N A41580

1шт.

14

B51744

SPRING

- idle needle

1шт.

Part of carburetor repair kit P/N A41580

1шт.

15

B51683

SCREW,#12 - 24 x 5/8"

- throttle, Serial Range: body-bowl

4шт.

16

B51797

NEEDLE BEARING CAGE

NEEDLE - high speed

1шт.

17

B51732

VALVE SPRING

SPRING - high speed needle

1шт.

18

B51870

WASHER

SPRING - high speed needle

1шт.

19

B51723

GASKET

- high speed needle

1шт.

Part of gasket kit P/N A30241

1шт.

Part of carburetor repair kit P/N A41580

1шт.

20

A41567

VENTURI

1шт.

21

A41581

VALVE

& SEAT ASSY. - float, Includes: Ref. 22

1шт.

Part of carburetor repair kit P/N A41580

1шт.

22

B51703

GASKET

- valve seat

1шт.

Part of gasket kit P/N A30241

1шт.

Part of carburetor repair kit P/N A41580

1шт.

23

B51833

JET - idle

1шт.

Part of carburetor repair kit P/N A41580

1шт.

24

B51708

GASKET

- throttle, Serial Range: body-bowl

1шт.

Part of gasket kit P/N A30241

1шт.

Part of carburetor repair kit P/N A41580

1шт.

25

B51772

FLOAT

- fuel body

1шт.

26

B51779

SHAFT

- float

1шт.

Part of carburetor repair kit P/N A41580

1шт.

27

A41587

BOWL ASSY. - fuel, Includes: Ref. 28 - 31

1шт.

28

B51700

SCREW

- plug, nozzle hole

1шт.

29

B51803

PACKING

- choke shaft

1шт.

Part of carburetor repair kit P/N A41580

1шт.

30

B51854

RETAINER

- packing

1шт.

Part of carburetor repair kit P/N A41580

1шт.

31

A41026

PLUG - choke shaft hole

1шт.

32

A41585

NOZZLE - main

1шт.

33

B51720

GASKET

- main nozzle

1шт.

Part of gasket kit P/N A30241

1шт.

Part of carburetor repair kit P/N A41580

1шт.

34

A41584

- power

1шт.

Part of carburetor repair kit P/N A41580

1шт.

35

B51763

VALVE

FLY ASSY. - choke, Includes: Ref. 36

1шт.

36

B51735

SPRING

- choke fly

1шт.

37

B51685

SCREW

- choke, Serial Range: fly-shaft

1шт.

Part of carburetor repair kit P/N A41580

1шт.

37

B51685

SCREW

- choke, Serial Range: fly-shaft

1шт.

38

B51757

SHAFT

ASSY. - choke, Includes: Ref. 39 - 41

1шт.

39

B51698

SCREW,0.164" - 32 x 5/16"

- swivel

1шт.

40

B51764

PIVOT

SWIVEL - choke control

1шт.

41

B51877

SPLIT PIN

PIN - cotter

1шт.

42

B51741

SPRING - choke return

1шт.

F12777

BRACKET ASSY. - choke control, Includes: Ref. 44 - 48

1шт.

44

B51767

BRACKET

1шт.

45

B51765

CLIP

- control rod

1шт.

46

B59373

SCREW - clip

1шт.

47

B51686

SCREW - bracket mounting

1шт.

48

B51879

FITTING

COCK - drain

1шт.

49

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.

50

A41580

KIT

- carburetor repair, Includes: Refs. 4, 6 - 8, 10 - 14, 19, 21 - 24, 26, 29, 30, 33, 34, 37 and 51

1шт.

51

A30241

GASKET KIT

Includes: Ref. 19, 22, 24 and 33

1шт.
