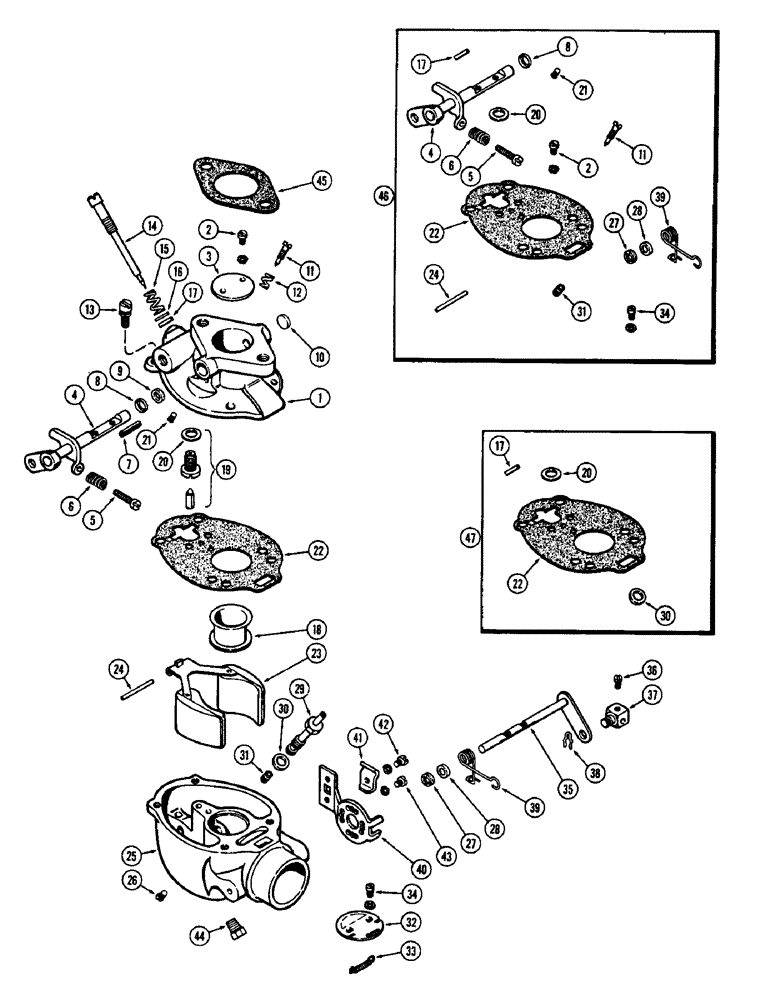

Запчасти Case 480CK (057A) - G11050 CARBURETOR WITHOUT SOLENOID, (148B) SPARK IGNITION ENGINE

G11050

X

CARBURETOR ASSY. (Marvel-Schebler #TSX-635) (Order A38243) (See Figure 57C), Includes: Ref. 1 - 44

1шт.

1

B51905

BODY ASSY. - throttle, Includes: Ref. 2 - 10

1шт.

2

B51685

SCREW

- throttle plate

2шт.

Part of carburetor repair kit P/N B51926

1шт.

3

B51669

PLATE - throttle

1шт.

4

B51662

SHAFT

ASSY. - throttle, Includes: Ref. 5 and 6

1шт.

Part of carburetor repair kit P/N B51926

1шт.

5

B51680

SCREW - stop, throttle

1шт.

Part of carburetor repair kit P/N B51926

1шт.

6

B51742

SPRING

- throttle stop screw

1шт.

Part of carburetor repair kit P/N B51926

1шт.

7

B51862

PIN - throttle stop

1шт.

8

B51853

RETAINER

- shaft packing

1шт.

Part of carburetor repair kit P/N B51926

1шт.

9

B51805

PACKING

- throttle shaft

1шт.

10

B51852

CUP

PLUG - cup, shaft end

1шт.

11

B51788

NEEDLE

- idle adjusting

1шт.

Part of carburetor repair kit P/N B51926

1шт.

12

B51744

SPRING

- idle needle

4шт.

13

B51683

SCREW,#12 - 24 x 5/8"

- throttle, Serial Range: body-bowl

4шт.

14

B51797

NEEDLE BEARING CAGE

NEEDLE - high speed adjusting

1шт.

15

B51732

VALVE SPRING

SPRING - high speed needle

1шт.

16

B51870

WASHER

- high speed needle

1шт.

17

B51723

GASKET

- high speed needle

1шт.

Part of carburetor repair kit P/N B51926

1шт.

Part of gasket kit P/N A30241

1шт.

18

B51815

VENTURI - carb. throat (25/32" dia.)

1шт.

19

A30244

SHUT-OFF VALVE

VALVE & SEAT ASSY. - float, Includes: Ref. 20

1шт.

20

B51703

GASKET

- valve seat

1шт.

Part of carburetor repair kit P/N B51926

1шт.

Part of gasket kit P/N A30241

1шт.

21

B51828

JET

- idling

1шт.

Part of carburetor repair kit P/N B51926

1шт.

22

B51708

GASKET

- throttle, Serial Range: body-bowl

1шт.

Part of carburetor repair kit P/N B51926

1шт.

Part of gasket kit P/N A30241

1шт.

23

B51772

FLOAT

- carb. fuel

1шт.

24

B51779

SHAFT

- float

1шт.

Part of carburetor repair kit P/N B51926

1шт.

25

NSS

NOT SOLD SEPARAT

BOWL ASSY. - carburetor, Includes: Ref. 26 - 28

1шт.

26

B51700

SCREW

PLUG - nozzle hole

1шт.

27

B51803

PACKING

- choke shaft

1шт.

Part of carburetor repair kit P/N B51926

1шт.

28

B51854

RETAINER

- choke shaft packing

1шт.

Part of carburetor repair kit P/N B51926

1шт.

29

B51826

NOZZLE INJECTION

NOZZLE - main

1шт.

Part of carburetor repair kit P/N B51926

1шт.

30

B51720

GASKET

- main nozzle

1шт.

Part of carburetor repair kit P/N B51926

1шт.

Part of gasket kit P/N A30241

1шт.

31

B51839

JET

- power

1шт.

Part of carburetor repair kit P/N B51926

1шт.

32

B51763

VALVE

FLY ASSY. - choke shaft, Includes: Ref. 33

1шт.

33

B51735

SPRING

- choke fly

1шт.

34

B51685

SCREW

- choke fly mounting

2шт.

35

B51757

SHAFT

ASSY. - choke, Includes: Ref. 36 - 38

1шт.

36

B51698

SCREW,0.164" - 32 x 5/16"

- choke shaft swivel

1шт.

37

B51764

PIVOT

SWIVEL - choke control

1шт.

38

B51877

SPLIT PIN

PIN - cotter, swivel retaining

1шт.

39

B51741

SPRING - choke return

1шт.

40

B51770

BRACKET ASSY. - choke shaft, Includes: Ref. 41 and 42

1шт.

41

B51765

CLIP

- choke bracket

1шт.

42

B51687

SCREW - clip mounting

1шт.

43

B51686

SCREW - choke bracket mounting, Includes: Ref. 44

1шт.

44

B51887

PLUG

- carburetor drain

1шт.

45

A29956

GASKET

- carburetor, Serial Range: mounting-manifold

1шт.

46

B51926

KIT

REPAIR KIT - carburetor, Includes: Ref. 2, 4 - 6, 8, 11, 17, 20 - 22, 24, 27 - 31 and 47

1шт.

47

A30241

GASKET KIT

Includes: Ref. 17, 20, 22 and 30

1шт.
