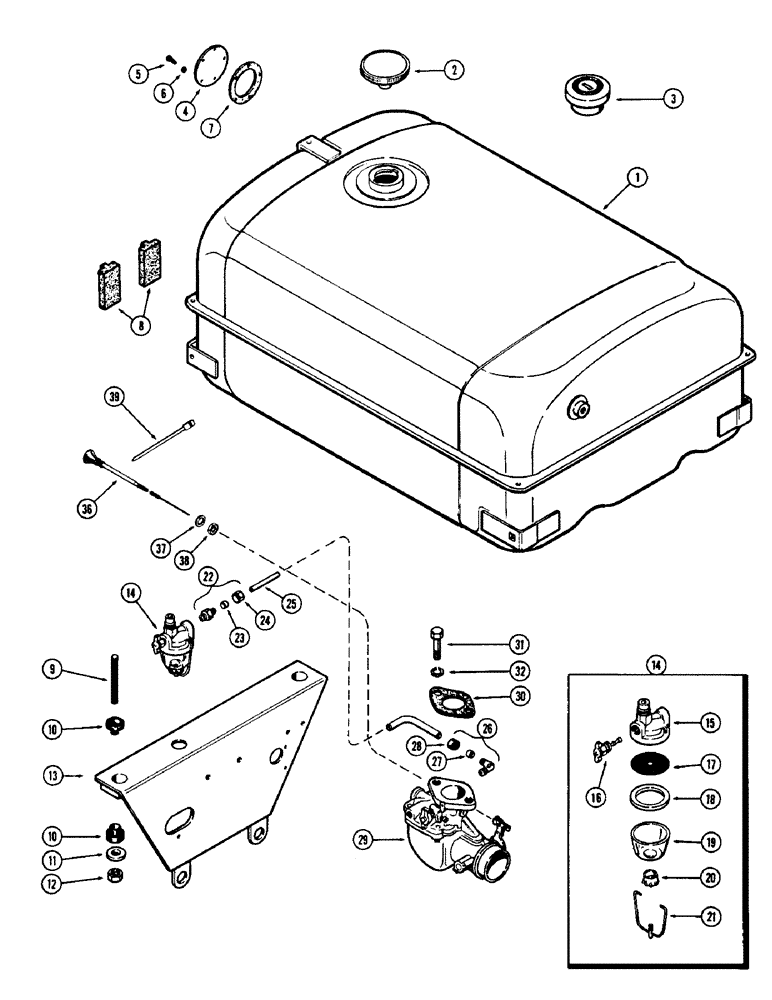

Запчасти Case 480CK (054) - FUEL TANK, (148B) SPARK IGNITION ENGINE

1

A37308

TANK - fuel

1шт.

2

A32119

CAP

- fuel tank (See ref. 3)

1шт.

3

A32120

CAP

- fuel tank, locking type (Keys included)

1шт.

4

G16143

COVER - sending unit opening

1шт.

5

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" rd. hd.

5шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

7

A11822

GASKET

-, Serial Range: cover-tank

1шт.

8

A37315

PAD

- rear, tank support

2шт.

9

A37310

STUD

- tank mounting (3/8" N.C. x 3-1/4")

4шт.

10

A37311

BUSHING

- mounting (Rubber)

8шт.

11

F62051

WASHER

- stud nut (13/32" I.D. x 1-1/2" O.D.)

4шт.

12

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" N.C. hex (Gripco)

4шт.

13

A38951

SUPPORT

- front, fuel tank (Replaces A37312)

1шт.

14

A30049

STRAINER ELEMENT

STRAINER ASSY. - fuel, Includes: Ref. 15 - 21

1шт.

15

A11214

HEAD

- strainer

1шт.

16

A11205

VALVE

- shut-off

1шт.

17

A11211

FILTER SCREEN

SCREEN - fuel

1шт.

18

A11208

GASKET

- bowl

1шт.

19

A11209

BOWL

- fuel

1шт.

20

A11210

ADJUSTER

NUT - retaining

1шт.

21

A11212

BAIL

ASSY. - bowl

1шт.

22

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR ASSY. - fuel line to strainer, Includes: Ref. 27 and 28

1шт.

23

222-103

SLEEVE,5/16" Tube

1шт.

24

222-104

SLEEVE,3/8" Tube

NUT - for 5/16" tube

1шт.

25

G46268

FUEL TUBE,0.312" OD x 20.5" L

LINE - fuel, strainer to carburetor

1шт.

26

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

ASSY. - fuel line to carburetor

1шт.

27

222-653

SLEEVE,5/16" Tube, Comp

- 5/16" tube

1шт.

28

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 5/16" tube

1шт.

29

A38242

CARBURETOR

ASSY. - w/solenoid (Repairs, figure 56), Start Serial: 2638707

1шт.

29

G11050

X

CARBURETOR ASSY. - engine fuel (Repairs, figure 57A & 57C) (Order A38242), Serial Range: -2638707

1шт.

30

A29956

GASKET

-, Serial Range: carburetor-manifold

1шт.

31

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

32

92-5

LOCK WASHER,5/16"

2шт.

36

A38458

CONTROL

ASSY. - choke (Replaces A36578)

1шт.

37

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

14шт.

38

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex. jam, 3/8" N.F.

1шт.

39

L11547

STRAP - choke control

1шт.
