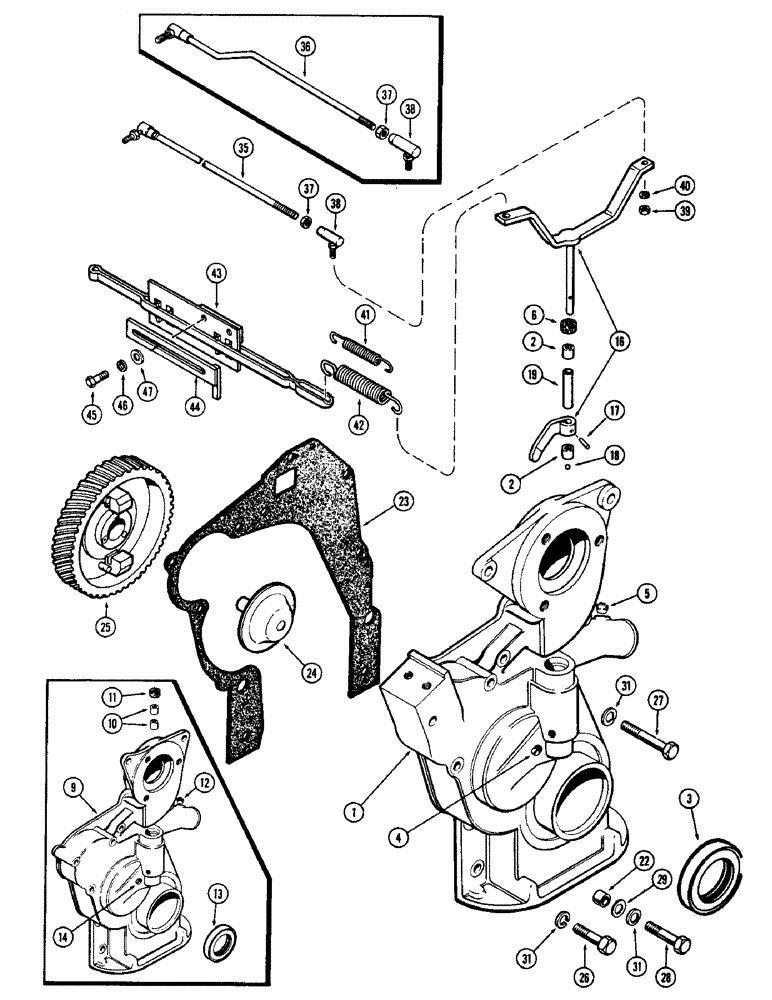

Запчасти Case 480CK (050) - GOVERNOR AND TIMING GEAR COVER, (148B) SPARK IGNITION ENGINE

1

A38913

COVER

ASSY. - timing gear, Includes: Ref. 2 - 5, Start Serial: 2684784

1шт.

2

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - needle

2шт.

3

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft front, 2 x 3 x 1/2"

1шт.

4

A30016

FITTING

PLUG - 1/8" P.T. slotted head

1шт.

5

221-1843

PLUG

- 3/8" P.T. socket hd.

1шт.

6

A30011

SEAL

- dust, governor shaft (3/8 x 13/16 x 3/8" felt)

1шт.

9

A36979

COVER

ASSY. - timing gear, Includes: Ref. 10 - 14, Serial Range: -2684784

1шт.

10

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - needle, governor shaft

2шт.

11

A30011

SEAL

- dust, governor shaft (3/8 x 13/16 x 3/8" felt)

1шт.

12

221-1013

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, 3/8" sq. hd.

1шт.

13

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, crankshaft front (2 x 3 x 1/2")

1шт.

14

A30016

FITTING

PLUG - pipe, 1/8" slotted

1шт.

16

A30125

SHAFT

& LEVER ASSY. - governor, Includes: Ref. 17

1шт.

17

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

18

211-5

BALL,3/16" Dia

- thrust, governor shaft (.) 3/16" Dia

1шт.

19

A30012

SPACER

- thrust, governor shaft

1шт.

22

A29442

RING

- dowel, Serial Range: cover-block

2шт.

23

A38226

GASKET

- cover to block (Replaces A30010)

1шт.

24

A29957

SHAFT

ASSY. - governor

1шт.

25

G37066

GEAR

ASSY. - camshaft (Includes governor weights)

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

3шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex hd.

2шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex

1шт.

27

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

28

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex hd.

3шт.

29

195-25

WASHER,3/8"

(13/32 x 13/16 x 1/16")

5шт.

29

G49400

WASHER

(13/32 x 1-5/32 x 10 ga.)

1шт.

31

92-6

LOCK WASHER,3/8"

10шт.

35

A38301

ROD

ASSY. - governor to carburetor (Straight) Includes Refs. 37 & 38, Start Serial: 2646898

1шт.

36

G45222

ROD

ASSY. - governor to carburetor (Off-set), Includes: Ref. 37 and 38, Serial Range: -2646898

1шт.

37

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

1шт.

38

A10329

BALL JOINT,1/4" - 28 x 1"

- flexible

1шт.

39

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

41

G48514

SPRING

- inner, governor speed (Red)

1шт.

42

G48511

SPRING

- outer, governor (Black coded)

1шт.

43

G45793

ROD

- governor control

1шт.

44

G45792

STOP

GUIDE - control rod

1шт.

45

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

46

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

47

195-521

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.
