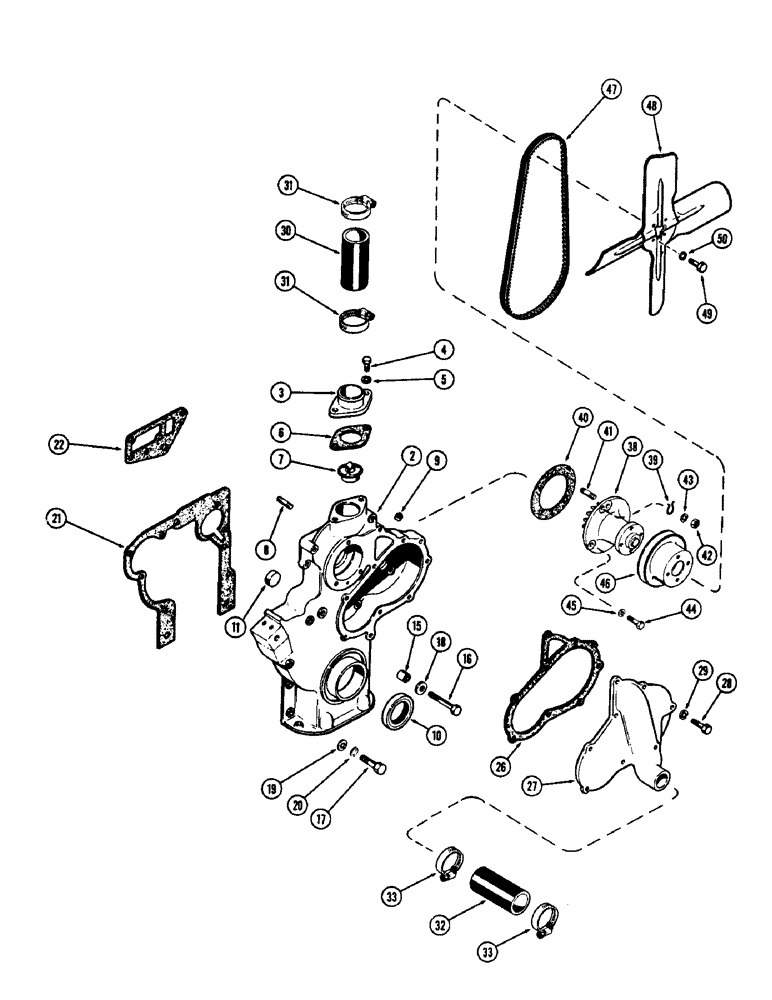

Запчасти Case 480CK (005A) - TIMING GEAR COVER, (188) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2679761

A38955

SPARE PART COVER ASSY. - timing gear, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - timing gear

1шт.

3

G2144

FITTING

CONNECTION - water outlet

1шт.

4

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

5

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

6

G46907

GASKET

GASKET -, Serial Range: connection-cover

1шт.

7

A57641

THERMOSTAT

THERMOSTAT - 180 degrees

1шт.

8

G11204

STUD

STUD - injection pump, 3/8" N.C. x 1-7/16"

3шт.

9

221-1022

PLUG,Sq Soc, 1/2"-14 NPTF

PLUG - pipe, 3/8" socket head

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

SEAL - oil, crankshaft, 2-3/32 x 3 x 1/2"

1шт.

11

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 49/64" cup type

1шт.

15

A29442

RING

RING - dowel, Serial Range: cover-block

2шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT - 3/8 x 2" N.C. hex

1шт.

16

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - 3/8 x 2-3/4" N.C. hex

3шт.

16

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT - 3/8 x 3" N.C. hex

1шт.

16

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

BOLT - 3/8 x 3-1/4" N.C. hex

3шт.

17

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

17

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" N.C. hex

1шт.

18

195-25

WASHER,3/8"

WASHER - 13/32 x 13/16 x 1/16"

5шт.

19

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

12шт.

20

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

21

A38228

GASKET

GASKET - cover to block (Replaces G46857)

1шт.

22

A38084

GASKET,1.27mm Thk

GASKET -, Serial Range: cover-head

1шт.

26

G46859

GASKET

GASKET - gear cover

1шт.

27

G2077

COVER ASSY

COVER - drive opening

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

29

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

9шт.

30

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

RADIATOR HOSE, Upper

1шт.

31

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

HOSE CLAMP, #36, 1.81/2.75 Type F Worm

2шт.

32

G46269

RADIATOR HOSE,1.75" ID x 2.50", SAE 20R2

Lower

1шт.

33

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

38

A39074

PUMP

PUMP ASSY. - water (Replaces A37758), Includes: Ref. 39 and 40

1шт.

This comes with 4 mounting holes even though only 3 bolts are used to mount the pump on any application. Made so that same pump can be used for all 188D and 207D applications.

1шт.

38

A146584

PUMP, WATER

Water Pump

1шт.

38

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

38

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Water Pump

1шт.

38

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

38

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

38

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

39

A30067

RING

RING - retainer, water pump

1шт.

40

A38083

GASKET

GASKET - pump to cover, water

1шт.

41

A29433

STUD

STUD - pump mounting 3/8" N.C. x 1", water

2шт.

42

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex, water pump

2шт.

43

92-6

LOCK WASHER,3/8"

LOCK WASHER, , water pump 3/8"

2шт.

44

A38085

BOLT

BOLT - pump mounting 3/8 x 2-7/8" N.C. hex, water

1шт.

45

A22317

WASHER

WASHER - 25/64 x 9/16 x 3/64" copper, water pump

1шт.

46

G11339

PULLEY

PULLEY - fan, water pump

1шт.

47

A38824

BELT

Fan and Alternator Drive, Water Pump

1шт.

48

G45243

FAN

FAN - radiator, water pump

1шт.

49

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, , Water pump Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

50

92-5

LOCK WASHER,5/16"

LOCK WASHER, , water pump 5/16"

4шт.
