(048) - ENGINE GASKET KITS, (148B) SPARK IGNITION ENGINE

Запчасти Case 480CK (048) - ENGINE GASKET KITS, (148B) SPARK IGNITION ENGINE

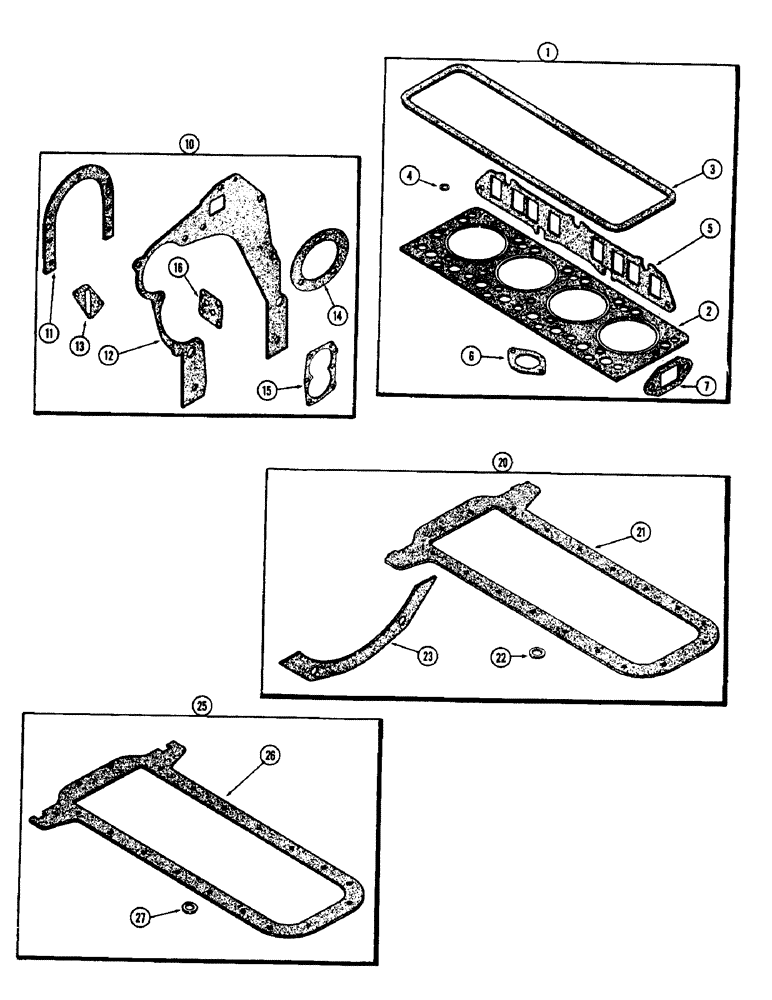

Схема запчастей Case 480CK - (048) - ENGINE GASKET KITS, (148B) SPARK IGNITION ENGINE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

G11917

KIT

VALVE GRIND GASKET KIT - engine, Includes: Ref. 2 - 7

1шт.

For complete engine overhaul on tractors with cast iron oil pans order 1-G11917, 1-A41465 and 1-A41447. For tractors with stamped oil pans order 1-G11917, 1-A41465 and 1-A40712.

1шт.

2

G10672

CYLINDER HEAD GASKET

-, Serial Range: head-block

1шт.

3

A30009

GASKET

- valve cover

1шт.

4

G46851

SEAL

- valve stem

4шт.

5

A30030

GASKET

- manifold

1шт.

6

A29956

GASKET

- carburetor

1шт.

7

A30003

GASKET

- water outlet elbow

1шт.

10

A41465

GASKET

CYLINDER BLOCK GASKET KIT - engine (Replaces G11916), Includes: Ref. 11 - 16

1шт.

For complete engine overhaul on tractors with cast iron oil pans order 1-G11917, 1-A41465 and 1-A41447. For tractors with stamped oil pans order 1-G11917, 1-A41465 and 1-A40712.

1шт.

11

A38196

GASKET

- rear oil seal retainer

1шт.

12

A38226

GASKET

- timing gear cover (Replaces A30010)

1шт.

13

G46902

GASKET

- fuel pump opening

1шт.

14

A38083

GASKET

- water pump

1шт.

15

G46852

GASKET

- oil pump cover

1шт.

16

G46854

GASKET

- oil filter bracket

1шт.

20

A41447

KIT

OIL PAN GASKET KIT (Used w/cast iron pan), Includes: Ref. 21 - 23

1шт.

For complete engine overhaul on tractors with cast iron oil pans order 1-G11917, 1-A41465 and 1-A41447. For tractors with stamped oil pans order 1-G11917, 1-A41465 and 1-A40712.

1шт.

21

NSS

NOT SOLD SEPARAT

GASKET - oil pan to block (Order ref. 20)

1шт.

22

A58608

GASKET

- drain plug (Nylon)

1шт.

23

G46913

GASKET

- block to torque tube

1шт.

25

A40712

KIT

OIL PAN GASKET KIT - engine (Usd w/stamped pan), Includes: Ref. 26 and 27

1шт.

For complete engine overhaul on tractors with cast iron oil pans order 1-G11917, 1-A41465 and 1-A41447. For tractors with stamped oil pans order 1-G11917, 1-A41465 and 1-A40712.

1шт.

26

NSS

NOT SOLD SEPARAT

GASKET - oil pan to block (Order ref. 25)

1шт.

27

A58608

GASKET

- drain plug (3/4" I.D.) (Nylon)

1шт.
