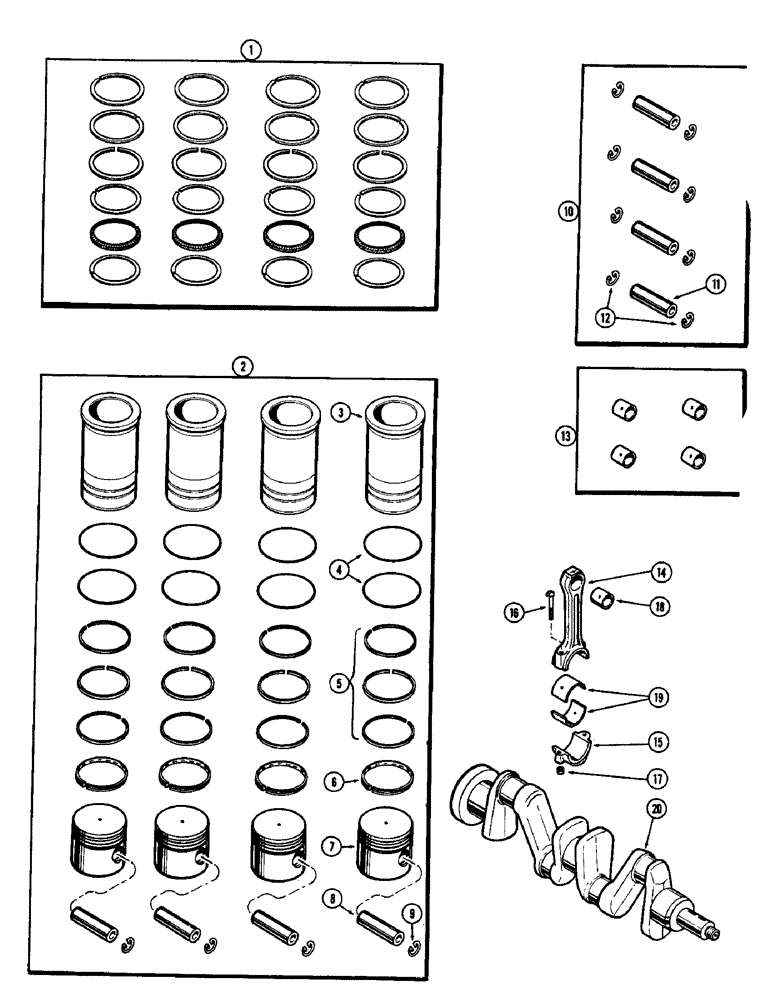

Запчасти Case 480CK (044) - PISTON ASSEMBLY AND CONNECTING RODS, (148B) SPARK IGNITION ENGINE

1

G11116

PISTON RING SET

RING SET - piston (Re-ring of 4 pistons)

1шт.

2

G11007

SLEEVE ASSY

PISTON & SLEEVE KIT - matched set of 4, Includes: Ref. 3 - 9

1шт.

3

G1061

SLEEVE

- cylinder

4шт.

4

G46909

O-RING,3.112" ID x 3.344" OD

"O" RING - cylinder sleeve

8шт.

5

G1062

OIL SEAL

RING - compression, piston

12шт.

6

G1063

OIL SEAL

RING - oil control, piston

4шт.

7

G1060

PISTON

- cylinder (3-1/2" Bore)

4шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 10)

4шт.

9

A30023

RETAINER

RING - retaining, piston pin

8шт.

10

G11925

PISTON PIN

PIN KIT - piston (Set of 4 pins & 8 retainers), Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - piston (Order G11925)

4шт.

12

A30023

RETAINER

RING - retaining, piston pin

8шт.

13

G11955

KIT

BUSHING SET - connecting rod (Set of 4)

1шт.

14

G11592

EXCHANGE CONROD

ROD ASSY. - connecting, Includes: Ref. 15 - 18

1шт.

15

NSS

NOT SOLD SEPARAT

CAP - conn. rod (Order G11592)

4шт.

16

G11701

BOLT

- rod cap

2шт.

17

G49060

NUT

- rod cap bolt

2шт.

18

NSS

NOT SOLD SEPARAT

BUSHING - connecting rod (Order ref. 13)

1шт.

19

A36500

SEAL

LINER KIT - brg., conn. rod (-.002") (Set of 2)

4шт.

19

A36502

LINING

LINER KIT - brg., conn. rod (-.010") (Set of 2)

4шт.

19

A36503

BEARING LINER

LINER KIT - brg., conn. rod (-.020") (Set of 2)

4шт.

19

A36504

KIT

LINER KIT - brg., conn. rod (-.030") (Set of 2)

4шт.

20

A37210

CRANKSHAFT

- engine

1шт.
