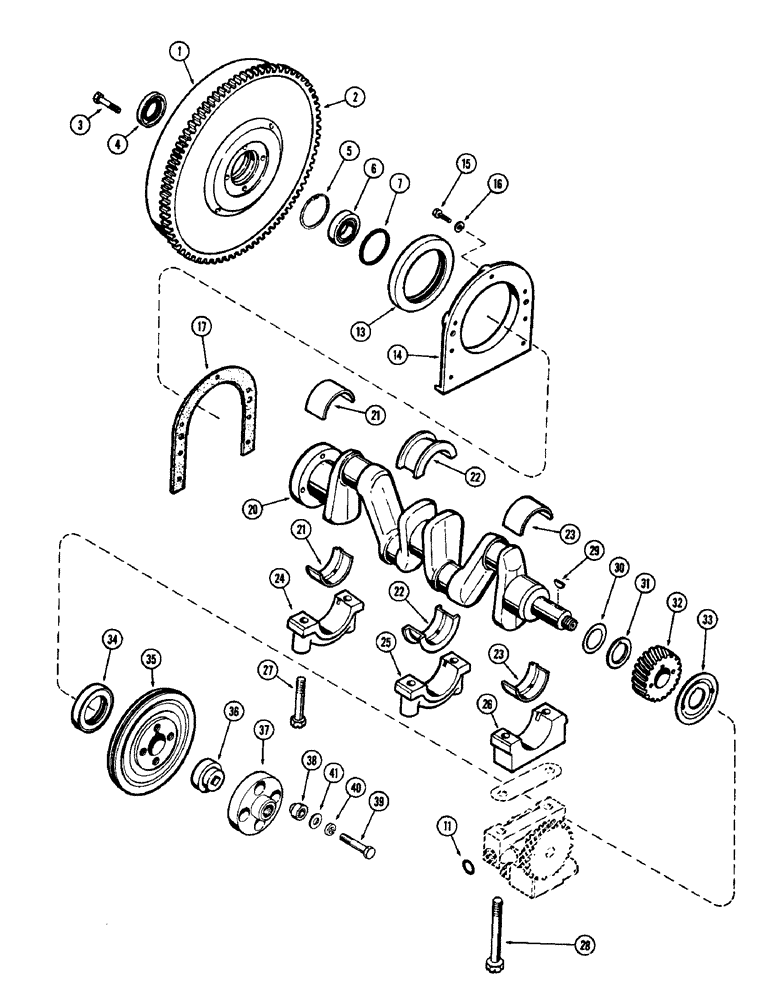

Запчасти Case 480CK (042) - CRANKSHAFT AND FLYWHEEL, (148B) SPARK IGNITION ENGINE

1

A37214

ASSY. - engine, Includes: Ref. 2

1шт.

2

G11710

GEAR

- ring (135T)

1шт.

3

A37216

BOLT

- flywheel, 7/16 x 2" N.F. place

4шт.

4

A37647

OIL SEAL

- oil, flywheel (1-3/16 x 2-5/32 x 1/4")

1шт.

5

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , brg 2.125", Int, #212

1шт.

6

T17389

BALL BEARING,1.1811" ID x 2.1654" OD x 0.5118"

BEARING - flywheel

1шт.

7

A37646

O-RING,2.237" ID x 2.443" OD x 0.103"

RING - seal, flywheel (2-1/4 x 2-7/16 x 7/64")

1шт.

13

A36610

OIL SEAL

- oil, crankshaft, rear (4 x 5 x 1/2")

1шт.

14

A38390

RETAINER

- oil seal, rear (Replaces G2017)

1шт.

15

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- Hex, 1/4"-20 x 3/4" G8, Full Thd

4шт.

15

113-26

BOLT

- 1/4 x 1" N.C. hex hd

3шт.

16

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

17

A38196

GASKET

- retainer, rear oil seal (Replaces G46802)

1шт.

20

A37210

CRANKSHAFT

- engine

1шт.

21

G37051

KIT

LINER KIT - rear bearing (Std.) (Set of 2)

1шт.

21

G37052

KIT

LINER KIT - rear bearing (-.002") (Set of 2)

1шт.

21

A42322

FIP KIT

LINER KIT - rear bearing (-.010") (Set of 2)

1шт.

21

G37053

KIT

LINER KIT - rear bearing (-.020") (Set of 2)

1шт.

21

G37054

KIT

LINER KIT - rear bearing (-.040") (Set of 2)

1шт.

22

G37047

KIT

LINER KIT - center bearing (Std.) (Set of 2)

1шт.

22

G37048

KIT

LINER KIT - center bearing (-.002") (Set of 2)

1шт.

22

A42321

FIP KIT

LINER KIT - center bearing (-.010") (Set of 2)

1шт.

22

G37049

KIT

LINER KIT - center bearing (-.040") (Set of 2)

1шт.

23

G37043

KIT

LINER KIT - front bearing (Std.) (Set of 2)

1шт.

23

G37044

KIT

LINER KIT - front bearing (-.002") (Set of 2)

1шт.

23

A42320

BEARING LINER

LINER KIT - front bearing (-.010") (Set of 2)

1шт.

23

G37045

KIT

LINER KIT - front bearing (-.020") (Set of 2)

1шт.

23

G37046

KIT

LINER KIT - front bearing (-.040") (Set of 2)

1шт.

24

G2037

CAP

- rear bearing liner

1шт.

25

G2036

CAP

- center bearing liner

1шт.

26

G2035

CAP

- front bearing liner

1шт.

27

G49037

BOLT

- bearing cap (1/2 x 3" N.C. hex)

4шт.

28

G49059

BOLT

- oil pump & frt. brg. cap (1/2 x 4-3/4" N.C. hex.)

2шт.

29

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley & gear to crankshaft

2шт.

30

A29293

SHIM,.010" Thk

Thrust .010" Thk

1шт.

31

A29294

BUSHING

SPACER - thrust

1шт.

32

A29263

GEAR

- crankshaft (24T)

1шт.

33

A29259

SLINGER

- oil

1шт.

34

A36609

OIL SEAL

- oil, crankshaft, front (2 x 3 x 1/2")

1шт.

35

G11342

X

PULLEY - fan drive

1шт.

36

A35673

NUT

-, Serial Range: pulley-crankshaft

1шт.

37

D140524

FLEXIBLE COUPLING,13T

COUPLING ASSY. - flexible, Includes: Ref. 38

1шт.

38

G36905

BLOCK

BUSHING - flex

4шт.

39

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

40

92-7

LOCK WASHER,7/16"

4шт.

41

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

(29/64 x 3/4 x 16 ga.)

4шт.
