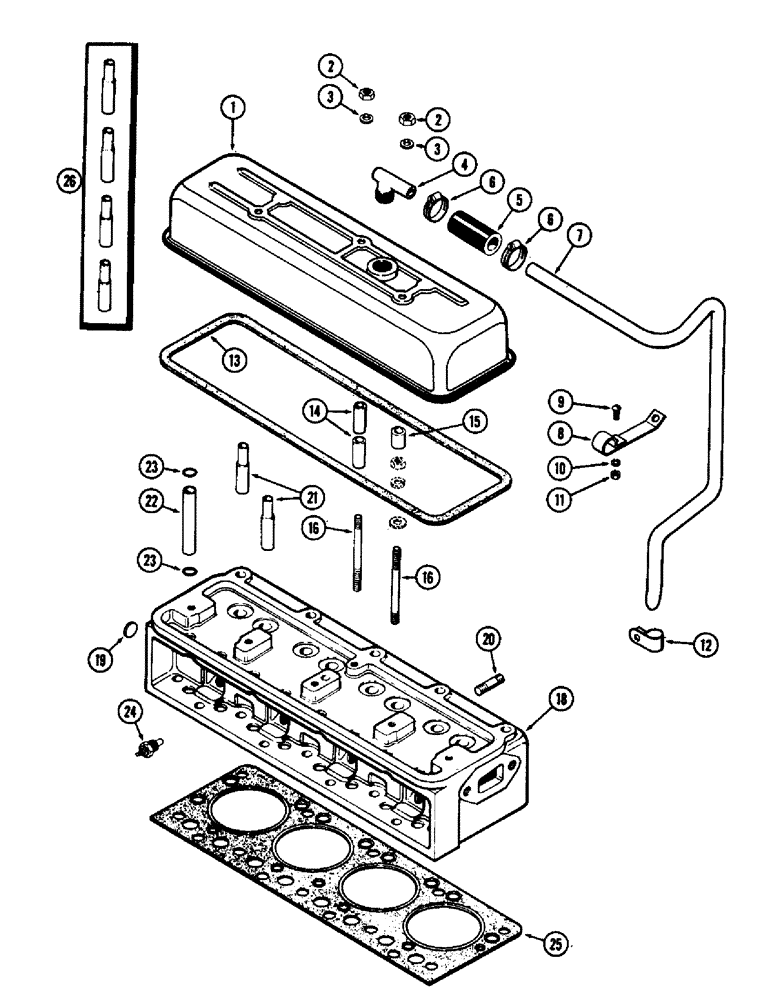

Запчасти Case 480CK (039A) - CYLINDER HEAD ASSEMBLY, (148B) SPARK IGNITION ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2638707

1

A37212

COVER

- cylinder head

1шт.

2

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

3шт.

3

A29277

WASHER

- cover stud (13/32 x 1 x 1/8")

3шт.

4

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

5

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube to elbow 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

7

A39570

HOSE

- breather, cyl. head (Replaces A37417)

1шт.

8

A38134

SPRING

CLIP -, Serial Range: tube-manifold

1шт.

9

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

- 1/4 x 1/2" N.C. rd. hd.

1шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

25-104

NUT,1/4"-20, G5

1шт.

12

D35026

CLAMP - breather tube

1шт.

13

A30009

GASKET

- cyl. head cover

1шт.

14

A30065

SPACER

- cyl. hd. cover

2шт.

15

A29999

SPACER

- cyl. head cover

2шт.

16

G49505

STUD

- cl. head cover (3/8" N.C. x 4-5/8")

3шт.

18

G11909

HEAD ASSY. - cylinder, stripped (Casting no. G1148) (Order G11874 or G11888) (See Figure 38), Includes: Ref. 19 - 23

1шт.

19

41-18

PLUG

- rear (1-1/8" dia.)

1шт.

20

A29431

STUD

- manifold mounting (3/16" N.C. x 1-3/4")

7шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - valve stem (Order Ref. 26)

8шт.

22

G11360

TUBE,0.687" OD x 3.687" L

- guide, push rod

8шт.

23

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - push rod tube (11/16 x 7/8 x 3/32")

16шт.

24

A21462

SENDER UNIT

UNIT - temp. sending engine

1шт.

25

G10672

CYLINDER HEAD GASKET

- cyl., Serial Range: head-block

1шт.

26

A30270

GUIDE

S - valve stem (Set of 4)

2шт.
