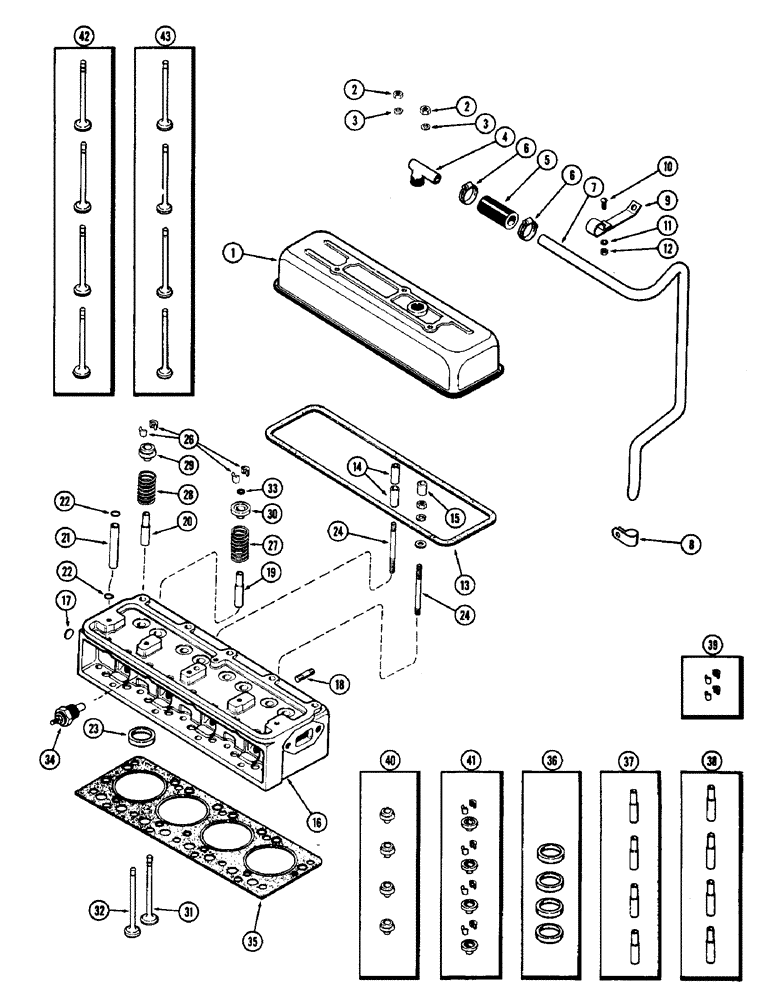

Запчасти Case 480CK (038) - CYLINDER HEAD ASSEMBLY, (148B) SPARK IGNITION ENGINE, FIRST USED ENGINE SERIAL NUMBER 2638707

1

A37212

COVER

- cylinder head

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

3

A29277

WASHER

- cover stud (13/32 x 1 x 1/18")

3шт.

4

A9155

90 ELBOW

- breather, Serial Range: tube-cover

1шт.

5

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube to elbow 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

6

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16 tp 1-3/4"

2шт.

7

A39570

HOSE

- breather (Replaces A37417)

1шт.

8

D35026

CLAMP - breather tube

1шт.

9

A38134

SPRING

CLIP -, Serial Range: tube-manifold

1шт.

10

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

0 1/4 x 1/2" N.C. rd. hd.

1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

25-104

NUT,1/4"-20, G5

1шт.

13

A30009

GASKET

- cylinder head cover

1шт.

14

A30065

SPACER

- cylinder head cover

2шт.

15

A29999

SPACER

- cylinder head cover

2шт.

G11888

HEAD ASSY. - cylinder, complete (Casting no. G2088), Includes: Ref. 16 - 33

1шт.

16

G11874

HEAD (CYLINDER)

HEAD ASSY. - cylinder, stripped (Casting no. G2088), Includes: Ref. 17 - 23

1шт.

17

41-18

PLUG

- REAR (1-1/8" expansion)

1шт.

18

A29431

STUD

- manifold (3/16" N.C. x 1-3/4")

7шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - intake valve (Order ref. 37)

4шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve (Order ref. 38)

4шт.

21

G11360

TUBE,0.687" OD x 3.687" L

- push rod

8шт.

22

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - tube seal (11/16 x 7/8 x 3/32")

16шт.

23

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 36)

4шт.

24

G49505

STUD

- cylinder head cover (3/8" N.C. x 4-5/8")

3шт.

26

NSS

NOT SOLD SEPARAT

LOCK - valve spring (Order ref. 39)

16шт.

27

A30025

SPRING

- intake valve

4шт.

28

G10004

SPRING

- exhaust valve

4шт.

29

NSS

NOT SOLD SEPARAT

ROTO-CAP - exhaust valve (Order ref. 40)

4шт.

30

NSS

NOT SOLD SEPARAT

RETAINER - intake valve spring (Order ref. 41)

4шт.

31

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. 42)

4шт.

32

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. 43)

4шт.

33

G46851

SEAL

- intake valve stem

4шт.

34

A21462

SENDER UNIT

UNIT - temperature sending

1шт.

35

G10672

CYLINDER HEAD GASKET

- cylinder head to block (Replaces A38239)

1шт.

36

G11960

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

37

G10269

KIT

GUIDES - intake valve stem (Set of 4)

1шт.

38

A30270

GUIDE

S - exhaust valve stem (Set of 4)

1шт.

39

G11929

LOCK

S - valve spring (Set of 4)

4шт.

40

G11928

CAP

ROTO-CAPS - exhaust valve (Set of 4)

1шт.

41

G11927

RETAINER

S - intake valve spring (Set of 4 w/locks)

1шт.

42

G11961

VALVE

S - intake (Set of 4)

1шт.

43

G11962

VALVE, ENG EXHAUST,

VALVES - exhaust (Set of 4)

1шт.
