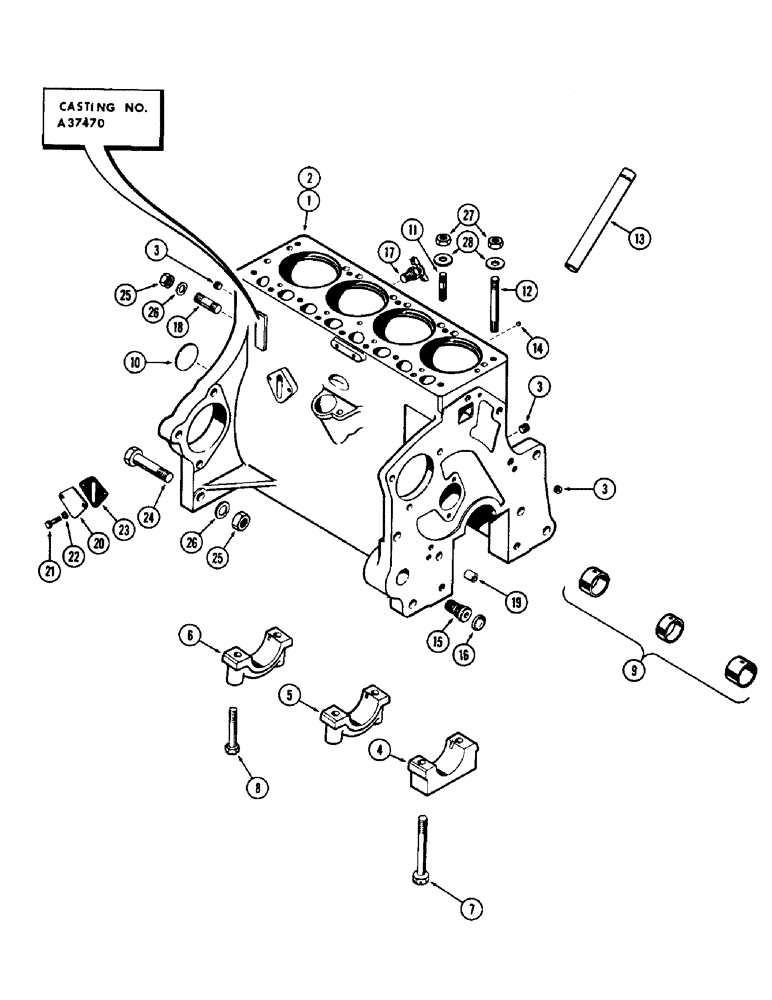

Запчасти Case 480CK (036) - CYLINDER BLOCK ASSEMBLY, (148B) SPARK IGNITION ENGINE

1

A41598

BLOCK ASSY. - engine, short (Incl. stripped block, crankshaft & brgs., camshaft, pistons & rings, conn. rods & liners and oil pump) (Used w/cast pan)(Casting #A37470), Includes: Ref. 2 - 18, Start Serial: 2639790

1шт.

1

A41598

BLOCK ASSY. - engine (Short) (Incl. stripped block, crankshaft & brgs., camshaft, pistons & rings, conn. rods & liners and oil pump) (Used w/stamped pan)(Casting #A37470), Includes: Ref. 2 - 18, Serial Range: -2639790

1шт.

2

A37828

SKELETON ENGINE

BLOCK ASSY. - engine (Stripped) (Casting #A37470), Includes: Ref. 3 - 16

1шт.

3

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Oil gallery Hex Soc, 1/4"-18 NPTF

3шт.

4

G2035

CAP

- crankshaft front bearing

1шт.

5

G2036

CAP

- crankshaft center bearing

1шт.

6

G2037

CAP

- crankshaft rear bearing

1шт.

7

G49059

BOLT

- frt. brg. cap (1/2 x 4-3/4" N.C. hex., sltd.)

2шт.

8

G49037

BOLT

- center & rear brg. cap (1/2 x 3" N.C. hex., sltd.)

4шт.

9

A41225

KIT

BUSHING SET - camshaft (Set of 3) (Replaces A30346)

1шт.

10

A39241

PLUG,Exp, 2.12" dia

- rear camshaft opening (2-1/8" exp.)

1шт.

11

A30057

STUD

- cyl. head to block, 1/2" N.C. x 2"

9шт.

12

A29436

STUD

- cyl. head to block, 1/2" N.C. x 5-7/8"

5шт.

13

A37149

TUBE

- oil filler & level gauge

1шт.

14

221-850

PLUG,Hex Soc, 1/16"-27

- pipe, 1/16" ctsk hd.

1шт.

15

A153552

ADAPTER

- oil filter mounting

1шт.

16

41-1016

PLUG,Cup, 1"

- filter adapter (1" cup type)

1шт.

17

A23656

COCK, DRAIN

VALVE - drain, cyl. block water

1шт.

18

A29333

STUD

- engine to torque tube (5/8" N.F. x 3)

2шт.

19

A29442

RING

- dowel, timing cover bolt

2шт.

20

G11702

COVER

- fuel pump opening

1шт.

21

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

22

92-5

LOCK WASHER,5/16"

2шт.

23

G46902

GASKET

- pump opening cover

1шт.

24

A38710

BOLT

BOLT - engine mounting (5/8 x 3-1/2" N.F. hex)

2шт.

25

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex

4шт.

26

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

4шт.

27

A30021

NUT

- cyl. head stud, 1/2" N.F. hex

14шт.

28

G49404

WASHER

- plain, head stud (17/32 x 27/32 x 1/16")

14шт.
