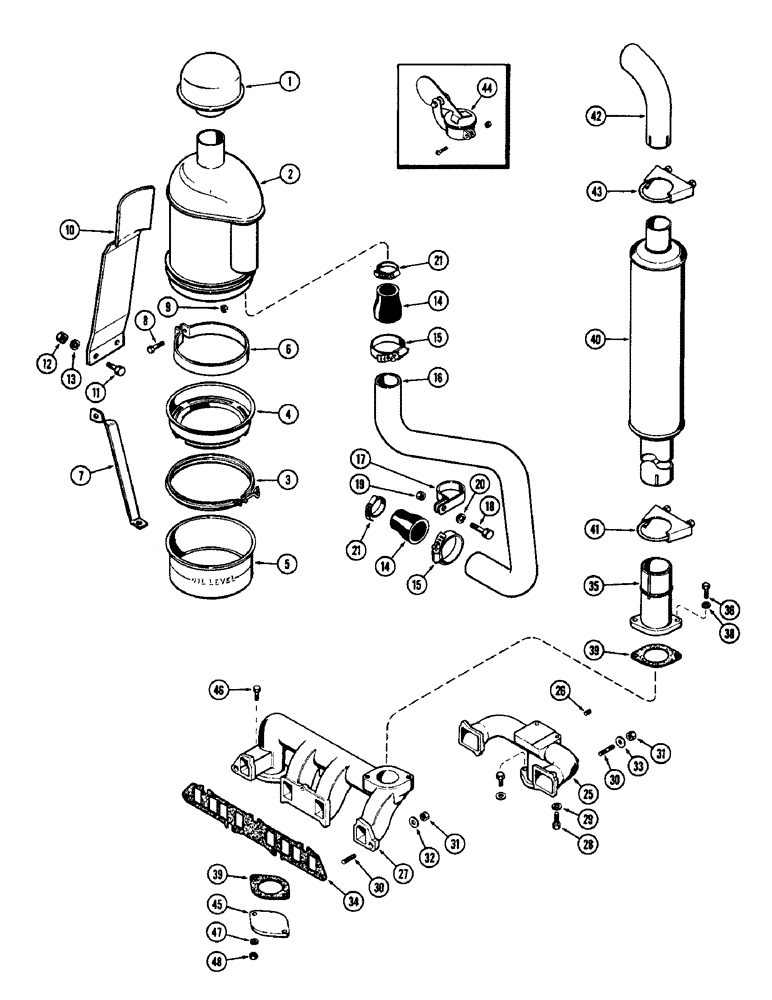

Запчасти Case 480CK (034) - AIR CLEANER, MANIFOLD, MUFFLER, (148B) SPARK IGNITION ENGINE

1

A30532

CAP

- air cleaner

1шт.

2

A36421

CLEANER ASSY. - air, engine, Includes: Ref. 3 and 4

1шт.

3

10811

STUD

CLAMP ASSY. - oil cup

1шт.

4

G46013

CUP

- oil, inner

1шт.

G46012

CUP - oil, outer

1шт.

6

G15662

BAND - air cleaner mounting

2шт.

7

A35590

BRACE - air cleaner

1шт.

8

173-216

SCREW,Sl Rnd Hd, 1/4" - 20 x 1 3/4"

- mach., 1/4 x 1-3/4" N.C.

2шт.

9

131-48

LOCK NUT,1/4"-20, GB

NUT - hex., lock, 1/4" N.C.

2шт.

10

A36422

BRACKET - mounting, air cleaner

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

12

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

A36423

HOSE

- adapter, air cleaner tube

2шт.

15

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

16

A35588

TUBE

- air, Serial Range: cleaner-carburetor

1шт.

17

A39356

CLAMP - air tube retainer

1шт.

18

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

19

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

25

A37172

MANIFOLD

- intake

1шт.

26

221-12

PLUG,Sq Hd, 1/4"-18

- pipe, 1/4" sq. hd.

1шт.

27

G2042

MANIFOLD

- exhaust

1шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

30

A29431

STUD

- manifold to head (3/8" N.C. x 1-3/4")

7шт.

31

131-903

NUT,3/8"-16

NUT - manifold stud, 3/8" N.C. hex (Seez-Pruf)

7шт.

32

A30058

WASHER

- heavy plain (13/32 x 7/8 x 1/8")

4шт.

33

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

3шт.

34

A30030

GASKET

- manifold to cyl. head

1шт.

35

G2125

OUTLET

- exhaust muffler

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

39

G46853

MANIFOLD GASKET

- exhaust outlet and cover

2шт.

40

A39020

MUFFLER

- exhaust (Black) (Replaces G45264)

1шт.

41

A13240

CLAMP,2-5/8" ID

ASSY. - muffler retainer

1шт.

42

A39023

PIPE

- extension, exhaust (Black) (Replaces A38182), Start Serial: 8321776

1шт.

43

R11500

CLAMP

- pipe to muffler (Replaces G13184), Start Serial: 8321776

1шт.

44

G45048

CAP

ASSY. - weather, muffler, Serial Range: -8321776

1шт.

45

A38188

PLATE

COVER - exhaust opening

1шт.

46

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex. hd., 3/8 x 1-1/2" N.C.

2шт.

47

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

2шт.

48

131-903

NUT,3/8"-16

NUT - hex., 3/8" N.C. hex. (Seez-Pruf)

2шт.
