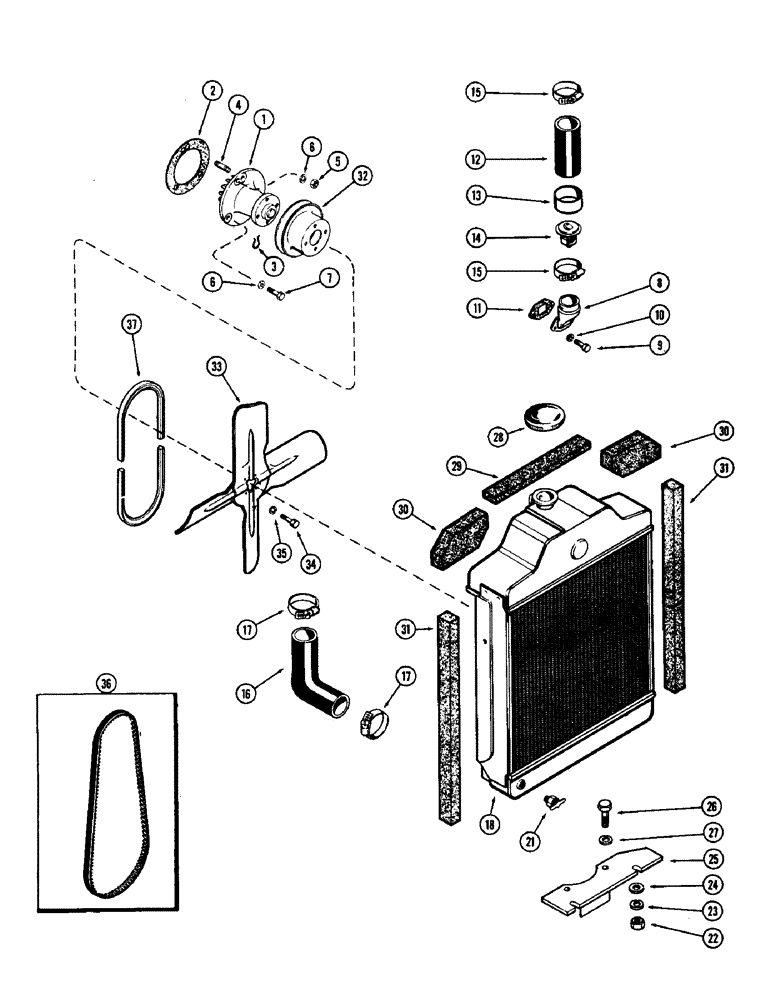

Запчасти Case 480CK (032) - ENGINE COOLING SYSTEM, (148B) SPARK IGNITION ENGINE

1

A39074

PUMP

PUMP ASSY. - water (Replaces A37758), Includes: Ref. 2 and 3, Serial Range: -2684784

1шт.

Order part nbr A146584 (This comes with 4 mounting holes even though only 3 bolts are used to mount it on any application, so that pump can be used on any 188D or 207D application).

1шт.

1

G11956

WATER PUMP

4 mounting holes - PUMP ASSY. - water, Includes: Ref. 2 and 3, Start Serial: 2684784

1шт.

Description should read "used after engine SN 2684784".

1шт.

1

A48364

REMAN-WATER PUMP

3 mounting holes - Remanufactured WATER PUMP

1шт.

1

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

1

A146584

PUMP, WATER

Water Pump

1шт.

1

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

1

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Water Pump

1шт.

1

A146584C

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

1

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

1

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

2

A38083

GASKET

GASKET - pump to cover (Replaces G46875)

1шт.

3

A30067

RING

RING - retainer

1шт.

4

A29433

STUD

STUD - pump mounting (3/8" N.C. x 1")

1шт.

5

25-106

NUT,3/8"-16, G5

N.C. hex

1шт.

6

193-30

LOCK WASHER,Int Tooth, 3/8"

3шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

7

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

8

G11965

ELBOW

ELBOW - engine, Serial Range: outlet-radiator

1шт.

9

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Full Thd

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

A30003

GASKET

GASKET - elbow

1шт.

12

G46239

RADIATOR HOSE,2.00" ID x 4.88", SAE 20R2

Upper

1шт.

13

G49625

SUPPORT

SPACER - thermostat

1шт.

14

G11065

CASE

THERMOSAT - water (177 degrees to 182 degrees F)

1шт.

15

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

upper

3шт.

16

G46361

RADIATOR HOSE,1.75" ID x 5.13", SAE 20R4

Lower

1шт.

17

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

lower

2шт.

18

A35604

RADIATOR

RADIATOR ASSY. - engine coolant

1шт.

21

217-103

COCK, DRAIN

VALVE - radiator drain

1шт.

22

25-106

NUT,3/8"-16, G5

NUT - radiator stud, N.C. hex

2шт.

23

92-6

LOCK WASHER,3/8"

2шт.

24

95-6

WASHER,3/8"

(5/32 x 5/16 x 1/32")

2шт.

25

A35574

BRACKET

BRACKET - radiator mounting

1шт.

26

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

G45179

CAP

CAP - radiator

1шт.

29

G46280

BAFFLE

BAFFLE - top center (Use adhesive 345-19)

1шт.

30

G46278

BAFFLE

BAFFLE - top side (Use adhesive 345-19)

2шт.

31

D31270

INSULATOR

BAFFLE - side (Use adhesive 345-19)

2шт.

32

G11339

PULLEY

PULLEY - fan & pump drive

1шт.

33

G45243

FAN

FAN - cooling

1шт.

34

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Full Thd

4шт.

35

92-5

LOCK WASHER,5/16"

74шт.

36

A38824

BELT

Fan and Alternator Drive, Start Serial: 2679578

1шт.

37

G46238

BELT,0.55" W x 17.78" L

Fan and Alternator Drive, Serial Range: -2679578

1шт.
