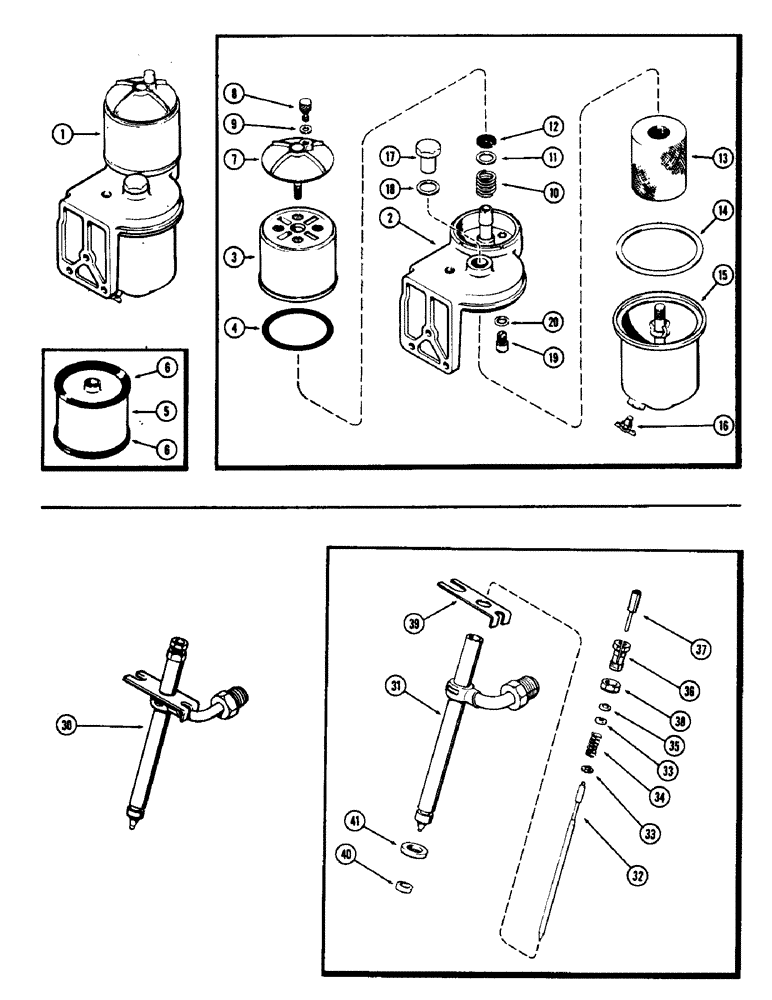

Запчасти Case 480CK (030) - FUEL FILTER, (188) DIESEL ENGINE

1

A35735

FILTER

ASSY. - fuel, Includes: Ref. 2 - 20

1шт.

2

A35664

HEAD

- mounting, fuel filter

1шт.

3

A39109

FILTER

ELEMENT ASSY. - final filter (Replaces A37187)

1шт.

4

A37188

GASKET

- final filter (See Ref. 6)

1шт.

5

A35668

FILTER

ELEMENT KIT - final filter (Order A39109)

1шт.

6

G46895

GASKET

- final filter (See Ref. 4)

2шт.

7

A35672

CAP

ASSY. - final filter

1шт.

8

A35971

SCREW,1/4" - 20 x 0.695"

VALVE - bleeder

1шт.

9

A35972

BUSHING

GASKET - bleeder valve

1шт.

10

A35669

SPRING

- final filter

1шт.

11

A35670

WASHER

- final filter

1шт.

12

A35671

GASKET

- rubber, final filter

1шт.

13

A35863

FILTER, ELEMENT

ELEMENT KIT - primary filter

1шт.

14

A28056

GASKET

- filter body

1шт.

15

CASA37099

HOUSING

BODY - primary filter

1шт.

16

217-81

VALVE

- drain

1шт.

17

A21131

NUT

- primary filter body

1шт.

18

A28055

GASKET

-, Serial Range: nut-head

1шт.

19

G49080

PLUG

- drain

1шт.

20

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - drain plug (3/8 x 9/16 x 3/32") (Replaces G46886)

1шт.

30

A37836

NOZZLE

ASSY. - fuel injector, Includes: Ref. 31 - 41

4шт.

Whenever nozzle is removed from head the seal ref. 40 and washer ref. 41 must be replaced before nozzle is installed back in head.

1шт.

A140829R

REMAN-INJECT NOZZLE

480CK, Reman For New P/N A37836

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

31

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A37836), fuel injector

1шт.

32

NSS

NOT SOLD SEPARAT

VALVE - nozzle (Order A37836), fuel injector

1шт.

33

A41401

SEAT

- pressure spring, fuel injector

2шт.

34

A41444

VALVE SPRING

SPRING - pressure adjusting, fuel injector

1шт.

35

A41407

WASHER

- ball type, fuel injector

1шт.

36

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting, fuel injector

1шт.

37

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting, fuel injector

1шт.

38

A42424

LOCK NUT

- lock, fuel injector

1шт.

39

A41405

PLATE

- locating, nozzle, fuel injector

1шт.

40

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, fuel injector

1шт.

41

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- plain, fuel injector

1шт.
