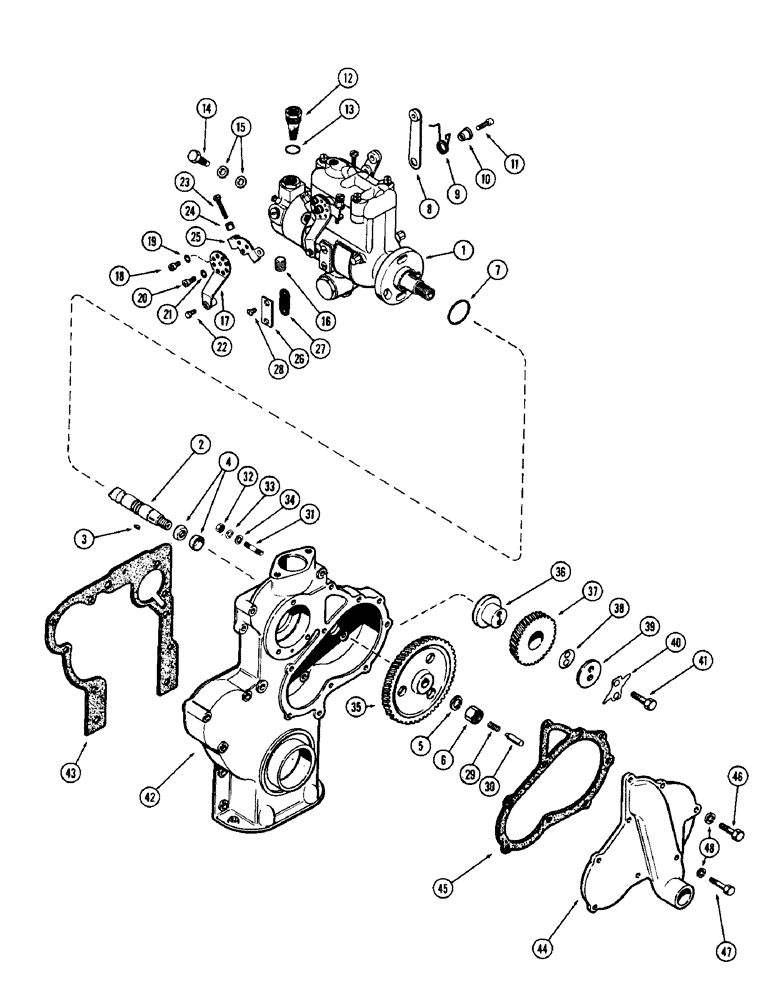

Запчасти Case 480CK (028) - FUEL INJECTION PUMP AND DRIVE, (188) DIESEL ENGINE

1

G37030

PUMP ASSY. - fuel injection Includes: Ref. 2 - 30

1шт.

2

G47113

SHAFT

- drive

1шт.

3

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

4

R14711

SEAL

- drive shaft

2шт.

5

192-24

LOCK WASHER,9/16"

WASHER, LOCK, , Drive shaft 9/16"

1шт.

6

25-159

JAM NUT,Jam, 9/16"-18, G5

- jam, 9/16" N.F. hex

1шт.

7

74244

SEAL,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

SEAL - pilot tube

1шт.

8

G45338

ARM

- throttle

1шт.

9

G48505

SPRING

- throttle arm

1шт.

10

G49621

RETAINER

- throttle arm spring

1шт.

11

G49079

SET SCREW

SCREW - throttle arm

1шт.

12

73671

ROPE

CAP & FILTER

1шт.

13

51200280

SEAL

- filter

1шт.

14

73613

SCREW

- connector, injection tube

4шт.

15

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector screw

8шт.

16

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe Hex Soc, 1/4"-18 NPTF

1шт.

17

G45337

ARM

- shut-off

1шт.

18

73646

SCREW

- position, shut-off arm

1шт.

19

73645

SEALING RING COLLAR

- position screw

1шт.

20

73670

SCREW

- retaining, shut-off arm

1шт.

21

73630

LOCK WASHER

WASHER - retaining screw

1шт.

22

463-2086

SCREW,Slotted Hex Hd, #8-32 x 3/8"

- pivot

1шт.

23

G49088

ADJUSTMENT SCREW,#10 - 32 x 1.781"

- adjusting, high idle

1шт.

24

86837534

LOCK WASHER

- high idle screw

1шт.

25

NSS

NOT SOLD SEPARAT

LEVER - shut-off

1шт.

26

G46330

COVER

- timing window

2шт.

27

73453

GASKET

- cover

2шт.

28

NLS

NO LONGER SERVICED

- timing cover

4шт.

29

G48502

SPRING

- thrust, pump drive shaft

1шт.

30

G47128

PLUNGER

- thrust spring

1шт.

31

G11204

STUD

- pump mounting (3/8 x 1-7/16")

3шт.

32

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

3шт.

33

92-6

LOCK WASHER,3/8"

3шт.

34

A30043

WASHER

- mounting stud

3шт.

35

G2076

GEAR

- drive, injection pump

1шт.

36

G11726

HUB

- idler gear, pump drive

1шт.

37

G11852

GEAR

ASSY. - idler (Includes bushing)

1шт.

38

G11728

SHIM,.005" Thk

Idler gear .005" Thk

1шт.

38

G11729

SHIM,.006" Thk

Idler gear .006" Thk

1шт.

38

G11730

SHIM,.007" Thk

Idler gear .007" Thk

1шт.

38

G11731

SHIM,.009" Thk

Idler gear .009" Thk

1шт.

39

G11732

PLATE

- thrust, idler gear

1шт.

40

G11746

PLATE

- lock, idler gear

1шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex

2шт.

42

NSS

NOT SOLD SEPARAT

COVER ASSY. - pump drive (Order from page 5A or 5C)

1шт.

43

A38228

GASKET

- cover to block (Replaces G46857)

1шт.

44

G2077

COVER ASSY

COVER - gear

1шт.

45

G46859

GASKET

- cover

1шт.

46

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

47

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex

1шт.

48

92-6

LOCK WASHER,3/8"

9шт.
