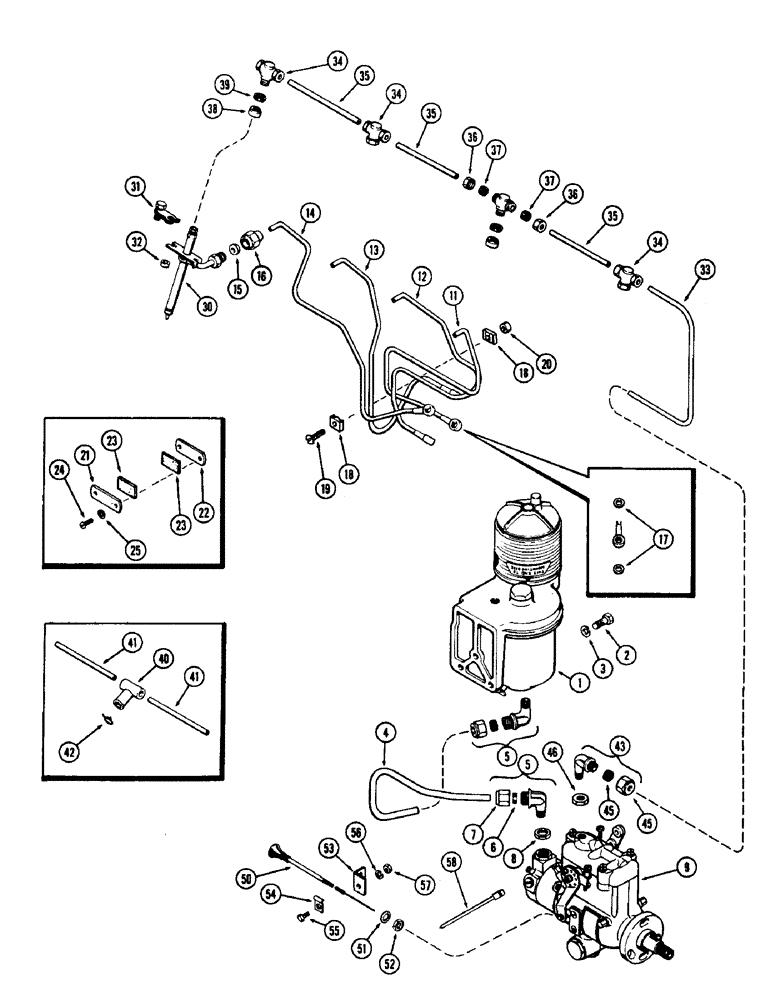

Запчасти Case 480CK (026) - FUEL INJECTION SYSTEM, (188) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2627377

1

A35735

FILTER

ASSY. - fuel (Repairs figure 30)

1шт.

2

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

3

92-5

LOCK WASHER,5/16"

3шт.

4

A36566

TUBE

LINE - fuel, Serial Range: filter-pump

1шт.

5

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" O.D. x 1/4" P.T., Includes: Ref. 6 and 7

2шт.

6

222-104

SLEEVE,3/8" Tube

- 3/8" Tube

1шт.

7

222-114

NUT,5/8"-24

NUT - 3/8" tube

1шт.

8

A38161

LOCK NUT

- sealing (1/4" P.T.)

1шт.

9

G37030

PUMP ASSY. - fuel injection (Repairs figure 28)

1шт.

11

A41391

TUBE

ASSY. - pump to #1 inj. (Incl. Refs. 15, 16 & 17)

1шт.

12

A41392

TUBE

ASSY. - pump to #2 inj. (Incl. Refs. 15, 16 & 17)

1шт.

13

A41393

TUBE

ASSY. - pump to #3 inj. (Incl. Refs. 15, 16 & 17)

1шт.

14

A41394

TUBE

ASSY. - pump to #4 inj. (Incl. Refs. 15, 16 & 17)

1шт.

Not illustrated properly the part pictured is A35061 see 310G crawler pg 40 for illustration of all tubes if customer requires tube which looks like picture.

1шт.

15

A37850

PIPE FITTING

SLEEVE - tube

1шт.

16

A37851

NUT

- tube

1шт.

17

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - screw connector

2шт.

18

A58709

BRACKET

CLAMP - inj. tubes, Start Serial: 2651269

4шт.

19

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp, #10-24 x 1" rd. hd.

2шт.

20

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10-24

2шт.

21

A27978

CLAMP

- injection tubes (w/o tapped holes), Serial Range: -2651269

2шт.

22

A38186

CLAMP - injection tubes (w/tapped holes), Serial Range: -2651269

2шт.

23

A27980

CUSHION

- injection tube clamp (Use w/A27978 & A38186)

2шт.

24

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

- clamp, #10-24 x 1" rd. hd.

2шт.

25

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

30

A37836

NOZZLE

ASSY. - fuel injector (See figure 30)

4шт.

A140829R

REMAN-INJECT NOZZLE

480CK FIRST USED ENGINE SERIAL NUMBER 2627377, Reman For New P/N A37836

4шт.

A140829C

CORE-NOZZLE, INJECT

Return Number

1шт.

31

A37837

CLAMP

ASSY. - injector nozzle

4шт.

32

A37839

SPACER

- nozzle clamp

4шт.

33

A38158

TUBE

- leak-off to injection pump

1шт.

34

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle leak-off (metal)

4шт.

35

A38644

TUBE

- leak-off (3-7/8" long) (Used w/A58960 tee)

3шт.

36

87017024

TUBE NUT,1/2"-24

SLEEVE - leak-off tube (1/4" hole)

8шт.

37

222-102

SLEEVE,1/4" Tube

Leak-off tube 1/4" Tube

8шт.

38

A58961

NUT

- nozzle to tee (Used w/A58960 tee)

4шт.

39

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- nozzle to tee (Used w/A58960 tee)

4шт.

0

A37838

BOOT

- nozzle leak-off (Nylon) (Order 3-A38644, 4-A58960, 4-A58961, 4-A58962, 8-222-102 & 8-222-112)

4шт.

41

A37840

TUBE

- leak-off (4-3/16" long) (Use w/A37838 nylon boot)

3шт.

42

214-104

HOSE CLAMP,#9, 9/16", Spring

CLAMP - spring type (Used w/A37838 boot)

4шт.

43

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - 1/4" tube x 1/8 P.T. Includes: Ref. 44 and 45

1шт.

44

222-102

SLEEVE,1/4" Tube

1шт.

45

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

46

A38160

LOCK NUT

- sealing (1/8" P.T.)

1шт.

50

A38454

CONTROL LEVER

CONTROL - fuel shut-off (Replaces A36573)

1шт.

51

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

52

86585245

SPECIAL NUT,JAM, 5/8" - 18

- control, 3/8" N.F. jam

1шт.

53

A38449

BRACKET - clip, shut-off control

1шт.

54

A26673

CLIP

- control cable

1шт.

55

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

- clip, 1/4 x 1/2" N.C. hex.

1шт.

56

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

57

25-104

NUT,1/4"-20, G5

1шт.

58

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - shut-off control

1шт.
