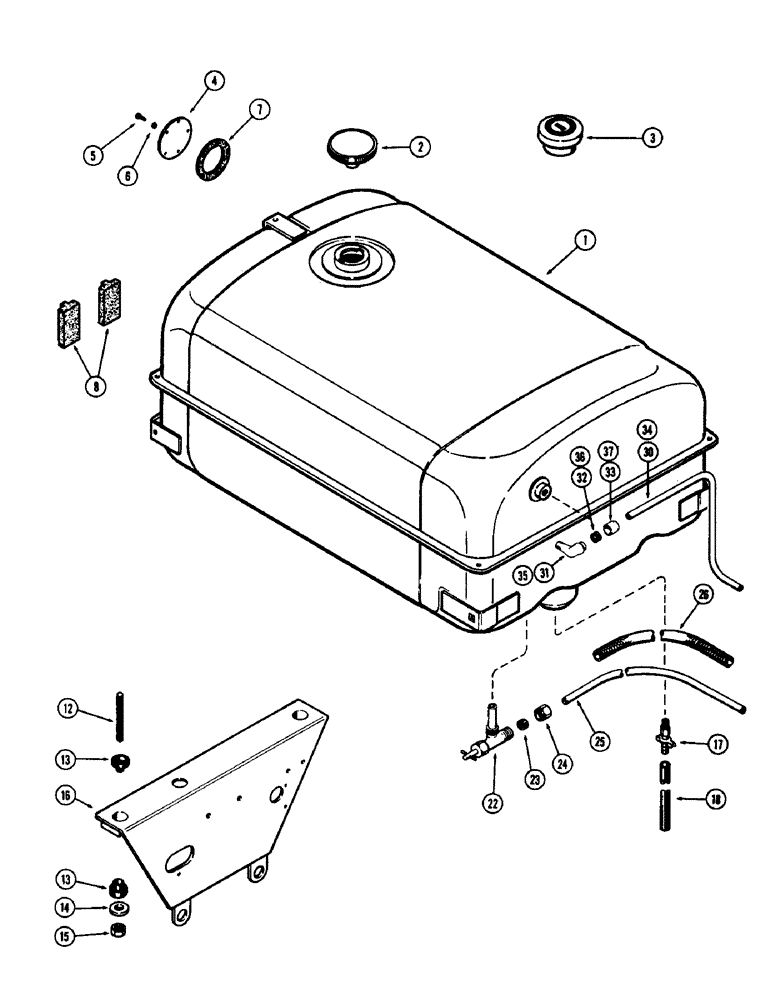

Запчасти Case 480CK (024) - FUEL TANK, (188) DIESEL ENGINE

1

A37306

TANK - fuel

1шт.

2

A32119

CAP

- fuel tank (See ref. 3)

1шт.

3

A32120

CAP

- fuel tank, locking (Keys included)

1шт.

4

G16143

COVER - sending unit hole

1шт.

5

174-96

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10-32 x 7/16" rd. hd.

5шт.

6

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

7

A11822

GASKET

- sending unit hole cover

1шт.

8

A37315

PAD

- rear, tank support

2шт.

12

A37310

STUD

- tank mounting (3/8" N.C. x 3-1/4")

4шт.

13

A37311

BUSHING

- mounting (Rubber)

8шт.

14

F62051

WASHER

- stud nut (13/32 I.D. x 1-1/2" O.D.)

4шт.

15

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" N.C. hex (Gripco)

4шт.

16

A38951

SUPPORT

- front, fuel tank (Replaces A37312)

1шт.

17

217-107

VALVE

- water trap drain

1шт.

18

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

22

A7313

VALVE

ASSY. - needle, fuel line, Includes: Ref. 23 and 24

1шт.

23

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

24

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

25

A35630

TUBE

LINE - fuel, Serial Range: valve-filter

1шт.

26

A27241

LOOM

- fuel, line

1шт.

30

A37899

TUBE

LINE - leak-off return (1/4" O.D.) (1st used eng. ser. no. 2627377)

1шт.

31

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSY. - return line (1/4" tube x 1/4" P.T.) (Used w/A37899 leak-off tube), Includes: Ref. 32 and 33

1шт.

32

222-102

SLEEVE,1/4" Tube

1шт.

33

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

34

A35631

TUBE

LINE - leak-off return (5/16" O.D.) (Use prior to eng. ser. no. 2627377)

1шт.

35

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - return line (5/16" tube x 1/4" P.T.) (Used w/A35631 leak-off line), Includes: Ref. 36 and 37

1шт.

36

222-103

SLEEVE,5/16" Tube

1шт.

37

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

A23480

SENDER UNIT

fuel

1шт.
