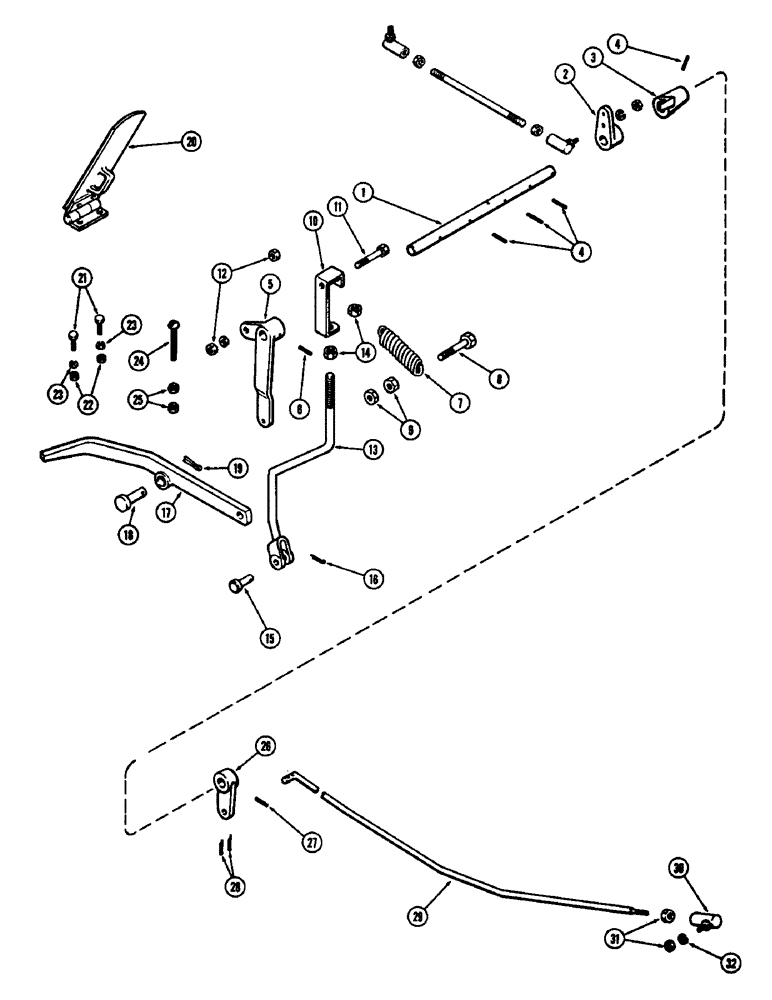

Запчасти Case 480CK (023A) - LOWER THROTTLE LINKAGE, (188) DIESEL ENGINE

1

A37264

SHAFT

- cross, throttle control

1шт.

1

A185091

SHAFT

- cross, throttle control

1шт.

2

A35638

LEVER

- cross shaft

1шт.

3

A35639

LEVER

- override, foot throttle

1шт.

4

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

3шт.

5

A37265

LEVER

- foot throttle

1шт.

6

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

7

B18277

SPRING

- return

1шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8 x 2" N.C. hex

1шт.

9

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex

2шт.

10

A37271

DRAG LINK

LINK - foot throttle pivot

1шт.

11

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- /38 x 2-1/2" N.C. hex

1шт.

12

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam, 3/8" N.C. hex

2шт.

13

A37538

ROD

- foot throttle

1шт.

14

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

15

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, Rod to bellcrank, 3/8 x 15/16"

1шт.

16

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

1шт.

17

A38206

ROD - throttle connecting (Replaces A37531)

1шт.

18

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2 x 1-3/16"

1шт.

19

132-47

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

1шт.

20

A37435

PEDAL - foot throttle control

1шт.

21

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

22

25-104

NUT,1/4"-20, G5

2шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

24

173-236

SCREW - pedal adjusting (5/16 x 2-1/4" N.C. rd. hd.)

1шт.

25

25-145

JAM NUT,Jam, 5/16"-18, G5

- jam, 1/4" N.C. hex

2шт.

26

A37270

LEVER

- throttle rod

1шт.

27

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

28

132-26

COTTER PIN

PIN - split (Cotter), 3/32" x 3/4"

2шт.

29

A37268

ROD

- cross shaft to fuel pump

1шт.

30

A10329

BALL JOINT,1/4" - 28 x 1"

- rod connecting

1шт.

31

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

32

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.
