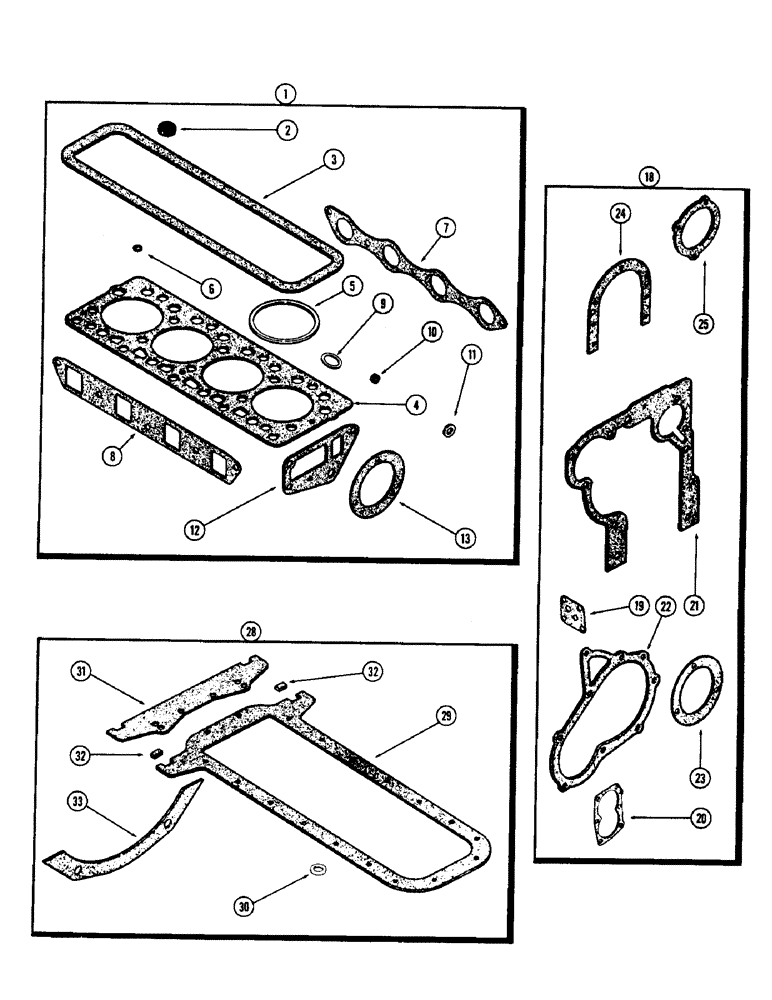

Запчасти Case 480CK (021C) - ENGINE GASKET KITS, (188) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2639536

1

A40707

GASKET KIT

- valve grind, Includes: Ref. 2 - 13

1шт.

For complete engine overhaul order 1-A40707, 1-G11950 & 1-A40713.

1шт.

2

G46867

GROMMET

- rubber, valve cover

2шт.

3

G46866

GASKET

- valve, Serial Range: cover-head

1шт.

4

A36877

GASKET

- cyl., Serial Range: head-block

1шт.

5

A36900

RING, PISTON

RING - fire, head gasket

4шт.

6

G46851

SEAL

- rubber, valve stem

8шт.

7

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

8

G46871

GASKET

- intake manifold

1шт.

9

G49068

GASKET

- fuel injector seat

4шт.

10

222-101

SLEEVE,3/16" Tube

- 3/16" leak-off tube

4шт.

10

222-103

SLEEVE,5/16" Tube

", Leak-off tube 5/16" Tube

4шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER -, Serial Range: injection-pump

8шт.

12

A38084

GASKET,1.27mm Thk

- timing gear cover to head (Replaces G46858)

1шт.

13

A38083

GASKET

- water pump (Replaces G46875)

1шт.

18

G11950

GASKET

KIT - cylinder block, Includes: Ref. 19 - 25

1шт.

For complete engine overhaul order 1-A40707, 1-G11950 & 1-A40713.

1шт.

19

G46854

GASKET

- oil filter bracket (Not used this unit)

1шт.

20

G46852

GASKET

- oil pump cover

1шт.

21

A38228

GASKET

- timing gear cover (Replaces G46857)

1шт.

22

G46859

GASKET

- pump drive cover

1шт.

23

G46875

GASKET

- water pump

1шт.

24

G46802

GASKET

- rear oil seal retainer

1шт.

25

A30042

GASKET

- power steering pump

1шт.

28

A40713

KIT

GASKET KIT - oil pan (w/stamped pan), Includes: Ref. 29 - 33

1шт.

For complete engine overhaul order 1-A40707, 1-G11950 & 1-A40713.

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - pan to block (Order A40713)

1шт.

30

A58608

GASKET

- drain plug (Nylon) (Replaces A27927)

1шт.

31

A36653

GASKET

- pivot bracket (Not used this unit)

1шт.

32

A11604

OIL PAN GASKET SET

- pivot bracket (Not used this unit)

2шт.

33

G46913

GASKET

- torque tube (Not used this unit)

1шт.
