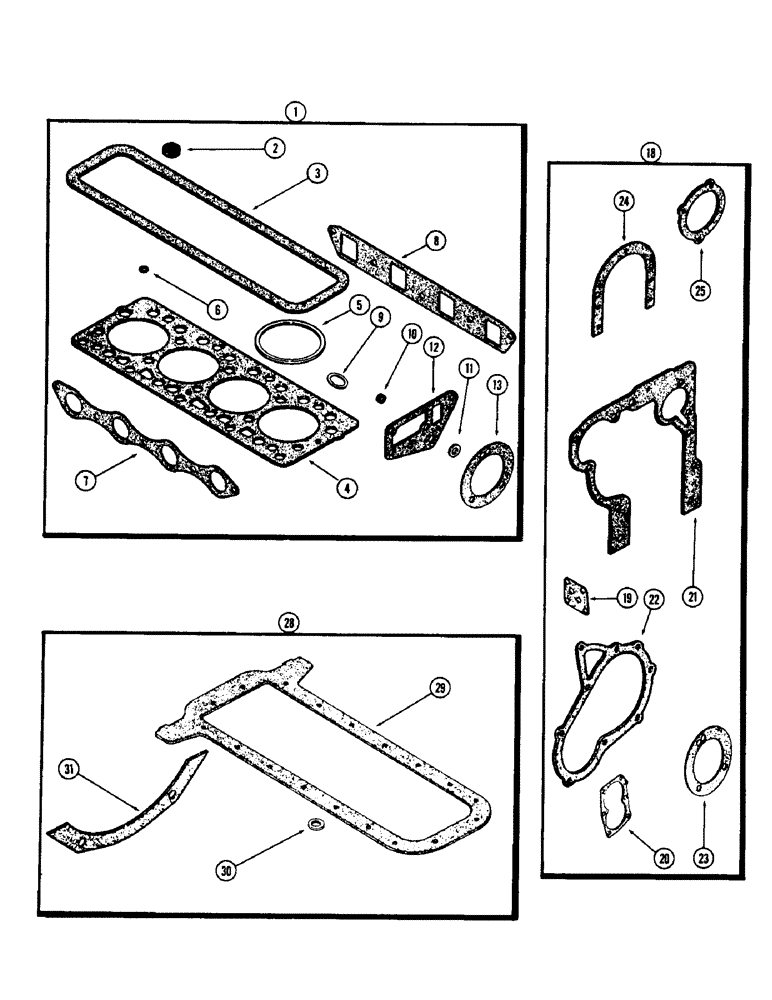

Запчасти Case 480CK (021A) - ENGINE GASKET KITS, (188) DIESEL ENGINE, USED ENGINE SERIAL NUMBERS 2639536 TO 2656844

1

A41425

GASKET

KIT - valve grind, Includes: Ref. 2 - 13

1шт.

For complete engine overhaul order 1-A41825, 1-A41426 & 1-A41450.

1шт.

2

G46867

GROMMET

- rubber, valve cover

2шт.

3

G46866

GASKET

- valve, Serial Range: cover-head

1шт.

4

A36877

GASKET

- cyl., Serial Range: head-block

1шт.

5

A36900

RING, PISTON

RING - fire, head gasket

4шт.

6

G46851

SEAL

- rubber, valve stem

8шт.

7

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

8

G46871

GASKET

- intake manifold

1шт.

9

G49068

GASKET

- fuel injector seat (Not used w/pencil injectors)

74шт.

10

222-101

SLEEVE,3/16" Tube

- leak-off tube (For ) (Not used w/pencil injectors) 3/16" Tube

4шт.

10

222-103

SLEEVE,5/16" Tube

- leak-off tube (For ) (Not used w/pencil injectors) 5/16" Tube

1шт.

11

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - injection, Serial Range: tube-pump

8шт.

12

A38084

GASKET,1.27mm Thk

- timing gear, Serial Range: cover-head

1шт.

13

A38083

GASKET

- water pump

1шт.

18

A41426

KIT

GASKET KIT - cylinder block, Includes: Ref. 19 - 25

1шт.

For complete engine overhaul order 1-A41825, 1-A41426 & 1-A41450.

1шт.

19

G46854

GASKET

- oil filter bracket (Not used this unit)

1шт.

20

G46852

GASKET

- oil pump cover

1шт.

21

A38228

GASKET

- timing gear, Serial Range: cover-block

1шт.

22

G46859

GASKET

- pump drive cover

1шт.

23

A38083

GASKET

- water pump

1шт.

24

A38196

GASKET

- rear oil seal retainer

1шт.

25

A30042

GASKET

- power steering pump

1шт.

28

A41450

KIT

GASKET KIT - oil pan (Used w/cast iron pan), Includes: Ref. 29 - 31

1шт.

For complete engine overhaul order 1-A41825, 1-A41426 & 1-A41450.

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - pan to block (Order A41450)

1шт.

30

A58608

GASKET

- drain plug (Nylon)

1шт.

31

G46913

GASKET

- block to torque tube

1шт.
