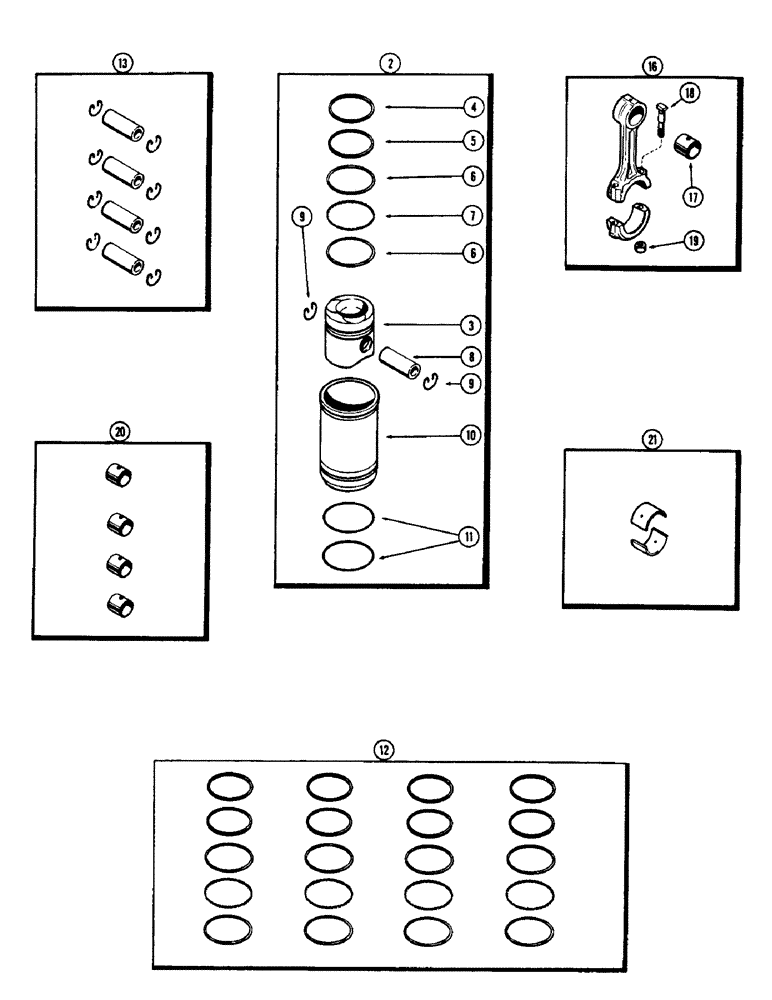

Запчасти Case 480CK (016) - PISTON ASSEMBLY AND CONNECTING RODS, (188) DIESEL ENGINE

A42813

PISTON

ASSY. (Set of 4) (Also order A42001 gasket kit) (Replaces A42002, A37764, A35772 & A42014), Includes: Ref. 2 - 21

1шт.

2

A42812

SLEEVE

PISTON ASSY. (Set of 1) (Also order A42001 gasket kit) (Replaces A42003, A37769, A36391 & A42015), Includes: Ref. 3 - 11

4шт.

3

A38424

PISTON

- cylinder

1шт.

4

G4819

RING

- compression, 1st groove (See ref. 12)

1шт.

5

G4817

RING

- compression, 2nd groove (See ref. 12)

1шт.

6

G47155

RAIL

- oil control, 3rd groove (See ref. 12)

2шт.

7

G47174

SPRING

SPACER - oil control ring (See ref. 12)

1шт.

8

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 13)

1шт.

9

G46702

RING, LOCKING

RING - piston pin retaining (See ref. 13)

2шт.

10

A39006

SLEEVE

- piston (Also order 4-A38639 fire rings and 1-A38640 cylinder head gasket) (Replaces A38638, A37763 & A38641)

1шт.

11

G4688

"O" RING - sleeve packing

2шт.

12

G37075

RING

SET - re-ring (Set of 4)

1шт.

13

A35771

KIT

PIN SET - piston (Set of 4 includes 8 rings)

1шт.

16

G11847

ROD

ASSY - connecting, Includes: Ref. 17 - 19

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

G49064

STEP BOLT

BOLT - conn. rod cap

2шт.

19

G49060

NUT

- cap bolt

2шт.

20

G11953

BUSHING

SET (Set of 4)

1шт.

21

A36500

SEAL

LINER SET - brg., conn. rod (Std.) (Set of 2)

4шт.

21

A36501

BEARING LINER

LINER SET - brg., conn. rod (-.002") (Set of 2)

4шт.

21

A36502

LINING

LINER SET - brg., conn. rod (-.010") (Set of 2)

4шт.

21

A36503

BEARING LINER

LINER SET - brg., conn. rod (-.020") (Set of 2)

4шт.

21

A36504

KIT

LINER SET - brg., conn. rod (-.030") (Set of 2)

4шт.
