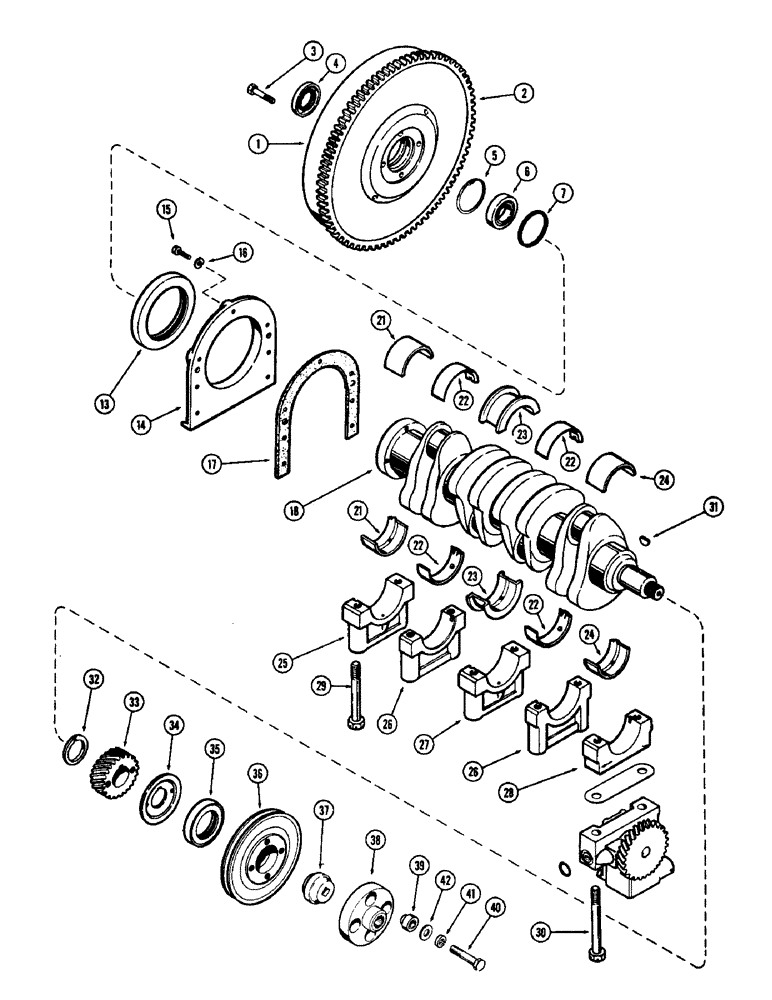

Запчасти Case 480CK (014) - CRANKSHAFT AND FLYWHEEL, (188) DIESEL ENGINE
№
Артикул
Название
Примечание
Количество
1
A144358
FLYWHEEL
ASSY - engine, Includes: Ref. 2
1шт.
2
G11710
GEAR
- ring (135T)
1шт.
3
A37216
BOLT
- flywheel (7/16 x 2" N.F. place)
4шт.
4
A37647
OIL SEAL
- oil, flywheel (1-3/16 x 2-5/32 x 1/4")
1шт.
5
49482
SNAP RING,2.125", Int, #212
RING - snap, , brg 2.125", Int, #212
1шт.
6
T17389
BALL BEARING,1.1811" ID x 2.1654" OD x 0.5118"
BEARING - flywheel
1шт.
7
A37646
O-RING,2.237" ID x 2.443" OD x 0.103"
RING - seal, flywheel (2-7/32 x 2-7/16 x 7/64")
1шт.
13
A36610
OIL SEAL
- oil, crankshaft rear (4 x 5 x 1/2")
1шт.
Now subs to part nbr A51339 (seal wear ring repair kit is part nbr A49851).
1шт.
14
A38410
- oil seal, rear (Replaces G2017)
1шт.
15
326-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 8
- 1/4 x 3/4" N.C. hex hd.
4шт.
15
113-26
BOLT
- 1/4 x 1" N.C. hex hd.
3шт.
16
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
7шт.
17
A38196
GASKET
- retainer, rear oil seal (Replaces G46802)
1шт.
18
A37211
CRANKSHAFT
- engine
1шт.
21
A36495
BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W
LINER SET - rear bearing (Std.) (Set of 2)
1шт.
21
A36496
LINING
LINER SET - rear bearing (-.002") (Set of 2)
1шт.
21
A36497
BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W
LINER SET - rear bearing (.010") (Set of 2)
1шт.
21
A36498
KIT
LINER SET - rear bearing (-.020") (Set of 2)
1шт.
21
A36499
BEARING LINER
LINER SET - rear bearing (-.030") (Set of 2)
1шт.
22
A36485
LINING
LINER SET - intermediate bearing (Std.) (Set of 2)
2шт.
22
A36486
LINING
LINER SET - intermediate bearing (-.002") (Set of 2)
2шт.
22
A36487
BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W
LINER SET - intermediate bearing (-.010") (Set of 2)
2шт.
22
A36488
CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"
LINER SET - intermediate bearing (-.020") (Set of 2)
2шт.
22
A36489
LINING
LINER SET - intermediate bearing (-.030") (Set of 2)
2шт.
23
A36490
BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W
LINER SET - center bearing (Std.) (Set of 2)
1шт.
23
A36491
LINING
LINER SET - center bearing (-.002") (Set of 2)
1шт.
23
A36492
BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W
LINER SET - center bearing (-.010") (Set of 2)
1шт.
23
A36493
BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W
LINER SET - center bearing (-.020") (Set of 2)
1шт.
23
A36494
LINING
LINER SET - center bearing (-.030") (Set of 2)
1шт.
24
A36480
BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W
LINER SET - front bearing (Std.) (Set of 2)
1шт.
24
A36481
LINING
LINER SET - front bearing (-.002") (Set of 2)
1шт.
24
A36482
BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W
LINER SET - front bearing (-.010") (Set of 2)
1шт.
24
A36483
LINING
LINER SET - front bearing (-.020") (Set of 2)
1шт.
24
A36484
LINING
LINER SET - front bearing (-.030") (Set of 2)
1шт.
25
A38385
CAP
- rear bearing liner (Used w/cast pan)
1шт.
25
G2129
CAP
- rear bearing liner (Used w/stamped pan)
1шт.
26
G2128
CAP
- intermediate bearing liner
2шт.
27
G2127
CAP
- center bearing liner
1шт.
28
G2126
CAP
- front bearing liner
1шт.
29
113-444
BOLT
- bearing cap (1/2 x 4-1/2" N.C. hex., sltd.)
8шт.
30
113-445
BOLT
- oil pump & brg. cap (1/2 x 5-1/8" N.C. hex., sltd)
2шт.
32
A29294
BUSHING
SPACER - thrust, crankshaft
1шт.
33
A29263
GEAR
- crankshaft (24T)
1шт.
34
A29259
SLINGER
- oil
1шт.
35
A36609
OIL SEAL
- oil, crankshaft, front (2 x 3 x 1/2")
1шт.
Now subs to part nbr A39110 (seal wear ring repair kit is part nbr A155893).
1шт.
36
G11342
X
PULLEY - fan & generator drive
1шт.
37
A35673
NUT
-, Serial Range: pulley-crankshaft
1шт.
38
D140524
FLEXIBLE COUPLING,13T
COUPLING ASSY. - flexible, Includes: Ref. 39
1шт.
39
G36905
BLOCK
BUSHING - flex
4шт.
40
13-724
BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5
Hex, 7/16"-14 x 1 1/2, G5
4шт.
41
92-7
LOCK WASHER,7/16"
4шт.
42
A30013
WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk
(29/64 x 3/4 x 16 ga.)
4шт.
Выбрано товаров: 55
