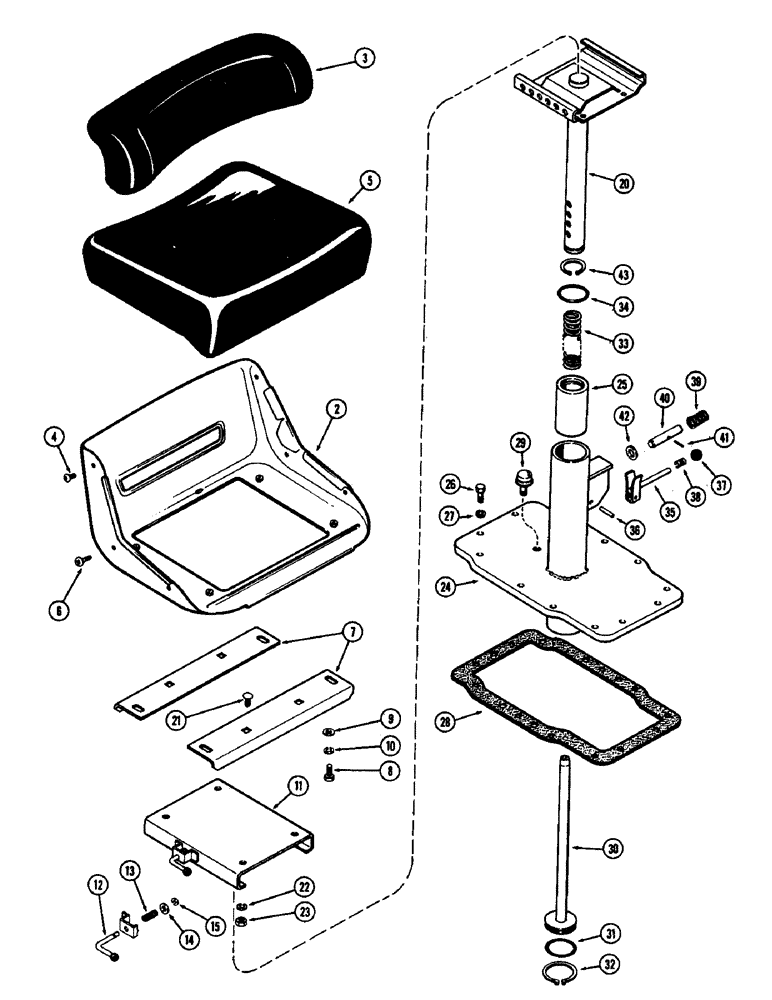

Запчасти Case 480CK (164) - SEAT, USED WITHOUT P.T.O.

1

D38271

SEAT

ASSY. - complete

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME - seat (Order D38271)

1шт.

3

D39419

BACKREST

CUSHION - backrest

1шт.

4

173-264

SCREW,Phil Rnd Hd, 1/4" - 20 x 1/2"

- 1/4 x 1/2" rd. hd. Phillips

3шт.

5

D39420

CUSHION

- seat

1шт.

6

173-265

SCREW,Phil Rnd Hd, 1/4" - 20 x 5/8"

- 1/4 x 5/8" rd. hd. Phillips

4шт.

7

L44100

BRACKET - seat

4шт.

8

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Bracket to seat Hex, 5/16"-18 x 7/8", G5, Full Thd

4шт.

9

95-5

WASHER,3/8" x 7/8" x .083"

- 3/8 x 7/8" x 5/64"

4шт.

10

92-5

LOCK WASHER,5/16"

4шт.

11

D31308

ADJUSTER

SLIDE ASSY. - seat

1шт.

12

D40765

LEVER

- seat adjusting

1шт.

13

D40766

SPRING

- adjusting lever

1шт.

14

195-21

WASHER,5/16"

- 5/16 x 7/8 x 1/16"

1шт.

15

A27810

CIRCLIP,#X31, .243" Dia, E-Type

RING - retaining, , lever #X31, .243" Dia, E-Type

1шт.

20

L44033

SUPPORT - seat 3.54" L

1шт.

21

12-514

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 7/8", Gr 2, Full Thd

BOLT, CARRIAGE, , Slide to support Short NK, 5/16"-18 x 7/8", G2, Full Thd

4шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

4шт.

24

A37412

COVER ASSY. - rear (Includes seat post)

1шт.

25

D38239

BUSHING

- seat support post

1шт.

26

113-228

X

BOLT - 3/8 x 1-1/4" N.C. hex

12шт.

27

92-6

LOCK WASHER,3/8"

12шт.

28

G10941

GASKET

-, Serial Range: cover-transmission

1шт.

29

A27173

BREATHER

- oil

1шт.

30

D38245

GUIDE

- lift spring

1шт.

31

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

"O" RING - guide base (2-1/4 x 2-1/2 x 1/8")

1шт.

32

70742

WASHER

RING - snap, 2.50", Int, #250, guide base

1шт.

33

D38257

VALVE SPRING

SPRING - lift

1шт.

34

D38645

O-RING,1.859" ID x 2 1" OD

"O" RING - seat post sealing (1-7/8 x 2-1/8 x 1/8")

1шт.

35

D38258

LOCK

HANDLE - lock, seat post

1шт.

36

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

37

D38643

KNOB

- lock handle

1шт.

38

D38673

RING

- tolerance

1шт.

39

D49602

SPRING

- tension, lock handle

1шт.

40

D38261

PIN

- lock, seat post

1шт.

41

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

1шт.

42

D49941

SPRING WASHER

- lock pin (17/32 x 15/16 x 12 ga.)

1шт.

43

D38248

SNAP RING,#187, Ext

RING - snap, , inner seat post #187, Ext

1шт.
