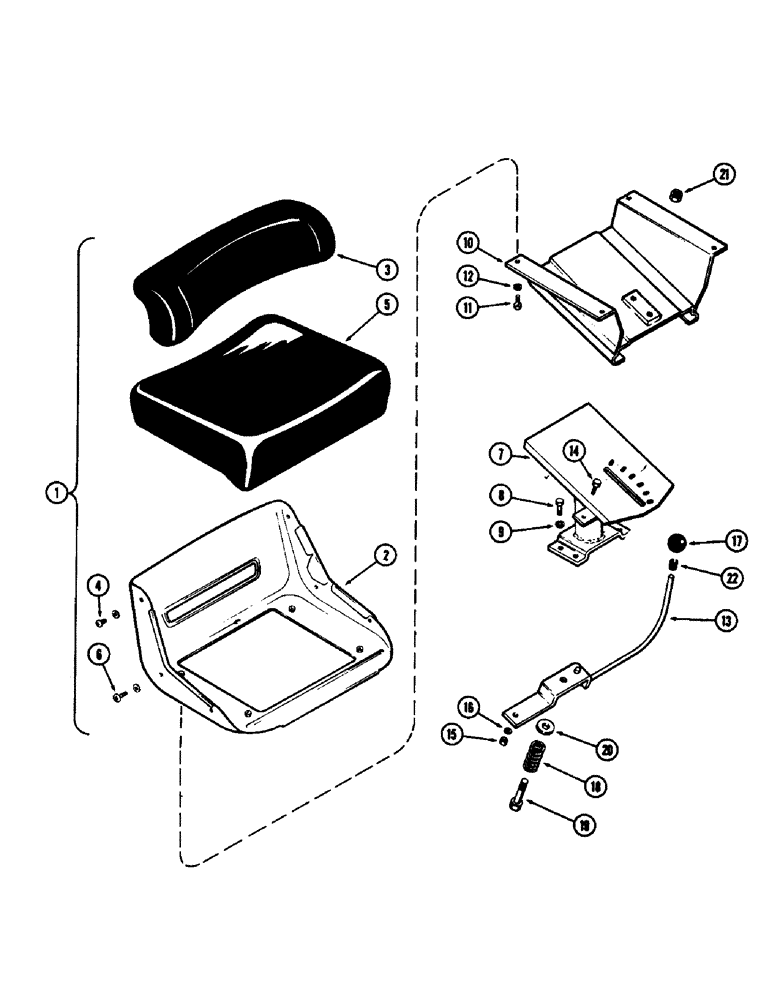

Запчасти Case 480CK (162) - SEAT, USED WITH P.T.O.

1

D38271

SEAT

ASSY. - complete, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME - seat (Order D38271)

1шт.

3

D39419

BACKREST

CUSHION - backrest

1шт.

4

173-264

SCREW,Phil Rnd Hd, 1/4" - 20 x 1/2"

- 1/4 x 1/2" rd. hd. Phillips

3шт.

5

D39420

CUSHION

- seat

1шт.

6

173-265

SCREW,Phil Rnd Hd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" rd. hd. Phillips

4шт.

7

D39500

SUPPORT - seat

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

D38265

CHANNEL

ASSY. - seat mounting

1шт.

11

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Seat channel Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

D38450

LEVER

- adjusting, seat

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

15

131-352

LOCK NUT,3/8"-16, GA

NUT - lock, 3/8" N.C. (Gripco)

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

D38644

KNOB

- adjusting lever

1шт.

18

D38446

SPRING

- tension, adjusting lever

1шт.

19

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex. hd.

1шт.

20

95-8

WASHER,1/2"

plain (9/16" x 1-3/8" x 7/64") 1/2"

1шт.

21

131-354

LOCK NUT,1/2"-13, GA

NUT - lock, 1/2" N.C.

1шт.

22

D38662

RING

- tolerance

1шт.
