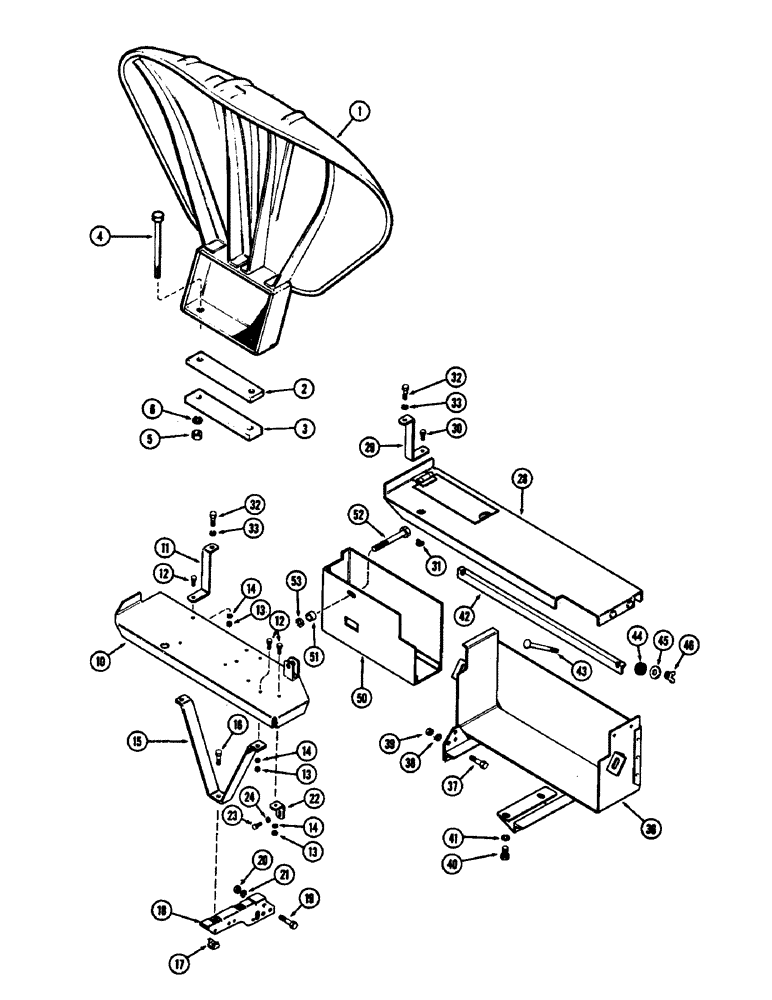

Запчасти Case 480CK (160) - FENDERS, PLATFORM AND BATTERY CASE

1

A38668

FENDER

- right hand (With 8-1/2" base), Start Serial: 8365599

1шт.

1

A37294

FENDER

- right hand (With 8" base), Serial Range: -8365599

1шт.

1

A38669

FENDER

- left hand (With 8-1/2" base), Start Serial: 8365599

1шт.

1

A37971

FENDER

- left hand (With 8" base), Serial Range: -8365599

1шт.

2

A38667

BAR - fender clamp (1/4" thick) (Used w/A38668 & A38669 fenders)

2шт.

3

A37305

CLAMP

- fender to axle (1/2" thick)

2шт.

4

15-8112

BOLT

- fender (1/2" x 7" N.C. hex.) (Used w/A38668 & A38669 fenders)

4шт.

4

13-8104

BOLT,Hex, 1/2" - 13 x 6-1/2", Gr 5

Used w/A37294 & A37971 fenders Hex, 1/2"-13 x 6 1/2", G5

4шт.

5

25-108

NUT,1/2"-13, G5

- hex., 1/2" N.C.

4шт.

6

92-8

LOCK WASHER,1/2"

4шт.

10

A37534

PLATFORM

- right hand

1шт.

11

A37533

SUPPORT - platform upper rear, right hand

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" N.C.

4шт.

14

92-5

LOCK WASHER,5/16"

4шт.

15

A37444

PLUG

SUPPORT - platform lower outside

1шт.

16

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

17

1502286C2

NUT,Floating Cage, 5/16"-18

- speed, 5/16"-18 Tinnerman, Type J

1шт.

18

A37365

SUPPORT

- platform lower

1шт.

19

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8" N.C.

3шт.

21

92-6

LOCK WASHER,3/8"

3шт.

22

A37479

SUPPORT - platform front

1шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

28

A38895

PLATFORM

- left hand (Replaces A37539)

1шт.

29

A38899

SUPPORT

- platform, left hand (5-9/16" long), Start Serial: 8656873

1шт.

29

A37533

SUPPORT - platform, left hand (5-7/32" long), Serial Range: -8656873

1шт.

30

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

31

131-137

SPRING NUT,Ret, 5/16"-18

Speed (Tinnerman) Ret, 5/16"-18

1шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

36

A38896

CASE

- battery (Replaces A37761 & A38264)

1шт.

37

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

38

92-6

LOCK WASHER,3/8"

3шт.

39

25-106

NUT,3/8"-16, G5

- hex., 3/8" N.C.

3шт.

40

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

41

92-8

LOCK WASHER,1/2"

2шт.

42

A37510

ANGLE

- battery hold down

1шт.

43

11-656

X

BOLT - rd. hd. sq. neck, 3/8" x 3-1/2" N.C.

2шт.

44

G46867

GROMMET

- rubber, hold down bolt

2шт.

45

G49400

WASHER

- hold down bolt (13/32" x 1-5/32" x 10 ga.)

2шт.

46

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C.

2шт.

50

A38902

TOOL BOX (Replaces A37484 & A38268)

1шт.

51

A37459

SPACER

- tool box mounting

1шт.

52

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

53

92-8

LOCK WASHER,1/2"

1шт.
