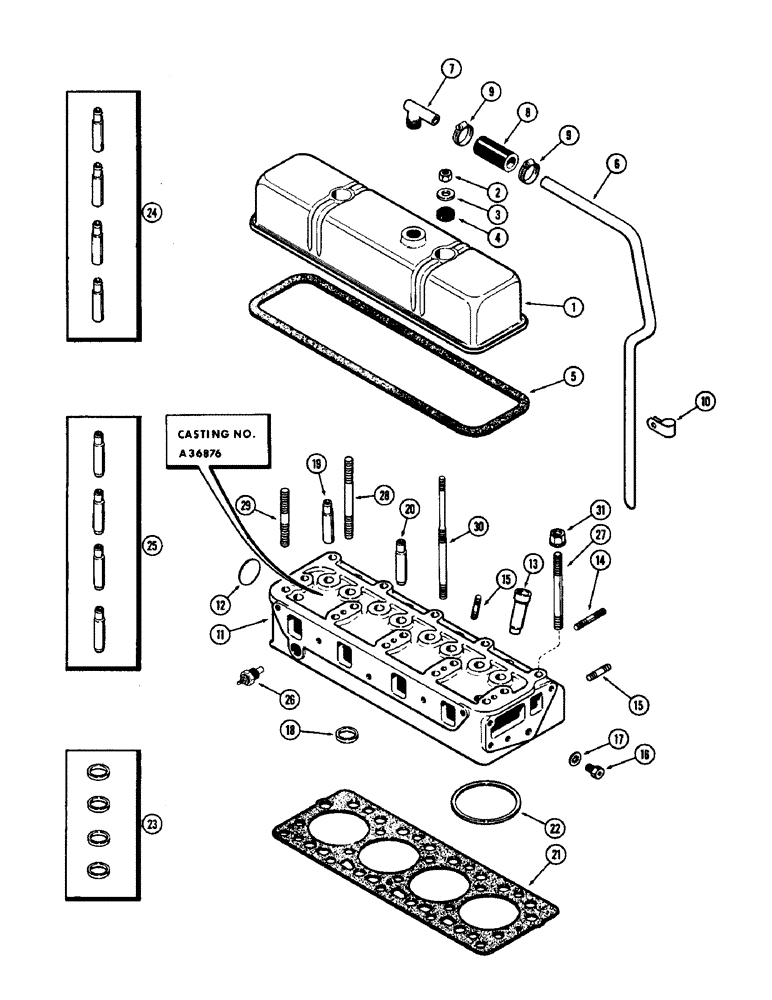

Запчасти Case 480CK (011A) - CYLINDER HEAD ASSEMBLY, (188) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2627377

1

A36815

COVER

- valve & head

1шт.

2

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

3

G49400

WASHER

- cover nut

2шт.

4

G46867

GROMMET

- rubber

2шт.

5

G46866

GASKET

-, Serial Range: cover-head

1шт.

6

D35014

TUBE

- breather

1шт.

7

A9155

90 ELBOW

- breather tube

1шт.

8

A21234

HOSE,0.75" ID x 3.50", SAE 20R4 Class SC

- Breather tube 0.75" ID x 3.50", SAE 20R4 Class SC

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose 1-3/16" to 1-3/4"

2шт.

10

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

-, Serial Range: tube-engine

1шт.

11

A36880

HEAD ASSY - cylinder (Casting #A36876), Includes: Ref. 12 - 20

1шт.

This must now be ordered as primes (A44037 cyl. head no longer available thru service).

1шт.

12

A30036

PLUG

- rear, 1-3/4" expansion

1шт.

13

G11724

LINER

- fuel injector

4шт.

14

A35175

STUD

- manifold 3/8" N.C. x 2-7/16"

6шт.

15

A29431

STUD

- manifold & injector 3/8" N.C. x 1-3/4"

12шт.

16

G49083

BOLT

- drilled, gear cover

1шт.

17

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER - Shakeproof, 1/2" ext.

1шт.

18

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order ref. 23)

4шт.

19

NSS

NOT SOLD SEPARAT

GUIDE - exhaust valve stem (Order ref. 24)

4шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - intake valve stem (Order ref. 25)

4шт.

21

A36877

GASKET

-, Serial Range: head-block

1шт.

22

A36900

RING, PISTON

RING - fire, cylinder (Std. w/orange mark)

4шт.

22

A37031

RING

- fire, cylinder (Oversize, coated black)

4шт.

23

G11986

KIT

INSERT KIT - exhaust valve seat (Set of 4)

1шт.

24

G11946

GUIDE

KIT - exhaust valve stem (Set of 4)

1шт.

25

G11945

GUIDE

KIT - intake valve stem (Set of 4)

1шт.

26

A21462

SENDER UNIT

SENDER - engine temperature

1шт.

27

A36902

STUD

- head to block, 1/2" N.C. x 5-5/8"

11шт.

28

A36905

STUD

- head to block, 1/2" N.C. x 6-1/8"

2шт.

29

A36904

STUD

- head to block, 1/2" N.C. x 4"

4шт.

30

A36903

STUD

- head and cover

2шт.

31

A37030

FLANGE NUT

- flanged, head stud, 1/2" N.C.

19шт.
