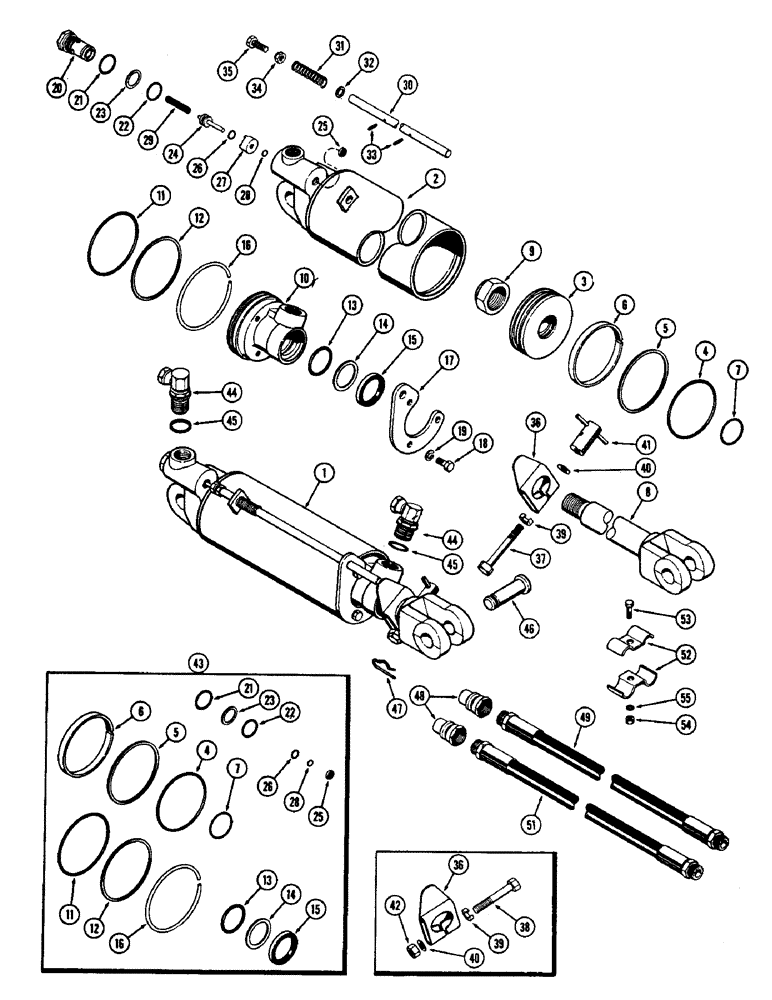

Запчасти Case 480CK (147A) - 3-1/4 INCH X 8 INCH HYDRAULIC CYLINDER, WITH HYDRAULIC LIMIT STOP
№
Артикул
Название
Примечание
Количество
1
A34922
CYLINDER
ASSY. - hydraulic
1шт.
2
A41348
BODY - cylinder
1шт.
3
A41177
PISTON - cylinder
1шт.
4
A41191
RING
- piston, outer (Teflon)
1шт.
Part of cylinder seal kit P/N A41347
1шт.
5
A41185
O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro
"O" RING - piston (2-7/8 x 3-1/8 x 1/8")
1шт.
Part of cylinder seal kit P/N A41347
1шт.
6
A41183
RING - wear, piston
1шт.
Part of cylinder seal kit P/N A41347
1шт.
7
A41184
O-RING,1.234" ID x 1.512" OD x 0.139"
"O" RING - piston (1-1/4 x 1-1/2 x 1/8")
1шт.
Part of cylinder seal kit P/N A41347
1шт.
8
A41179
ROD - piston
1шт.
9
A41189
LOCK NUT
NUT - piston ret. 1" - 14 lock nut
1шт.
10
A41180
BEARING
- cylinder
1шт.
11
A30095
O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro
"O" RING - bearing (3 x 3-1/4 x 1/8")
1шт.
Part of cylinder seal kit P/N A41347
1шт.
12
A41188
RING
- "O" ring back-up
1шт.
Part of cylinder seal kit P/N A41347
1шт.
13
A27577
O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro
"O" RING - bearing (1-1/4 x 1-1/2 x 1/8")
1шт.
Part of cylinder seal kit P/N A41347
1шт.
14
T22277
OIL SEAL
RING - "O" ring back-up
1шт.
Part of cylinder seal kit P/N A41347
1шт.
15
A41176
X
SEAL - oil, bearing (1-1/4 x 1-1/2 x 1/4")
1шт.
Part of cylinder seal kit P/N A41347
1шт.
16
A41186
RING, LOCKING
RING - lock, bearing
1шт.
Part of cylinder seal kit P/N A41347
1шт.
17
A41182
PLATE - cylinder end
1шт.
18
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
End plate Hex, 1/4"-20 x 3/4", G5, Full Thd
3шт.
19
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
3шт.
20
A41351
PLUG - cyl. end & valve plunger body
1шт.
21
A41316
O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro
"O" RING - plug (7/8 x 1-1/16 x 3/32")
1шт.
Part of cylinder seal kit P/N A41347
1шт.
22
F62114
O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
"O" RING - plug (11/16 x 7/8 x 3/32")
1шт.
Part of cylinder seal kit P/N A41347
1шт.
23
A41346
RING
- back-up
1шт.
Part of cylinder seal kit P/N A41347
1шт.
24
A41430
PLUNGER
ASSY. - valve
1шт.
25
A41175
WIPER
- valve plunger (3/16 x 1/2 x 1/8")
1шт.
Part of cylinder seal kit P/N A41347
1шт.
26
A41147
X
"O" RING - plunger (3/16 x 3/8 x 3/32")
1шт.
Part of cylinder seal kit P/N A41347
1шт.
27
A41429
SPACER
- valve
1шт.
28
A41160
INSERT
"O" RING - valve (23/64 x 9/16 x 3/32")
1шт.
Part of cylinder seal kit P/N A41347
1шт.
29
A41163
SPRING
- valve poppet
1шт.
30
A41153
ROD
- push
1шт.
31
A41154
SPRING
- push rod
1шт.
32
A41155
WASHER
- push rod spring seat
1шт.
33
138-71
LOCK PIN,5/32" x 5/8", Slotted
PIN, , Push rod 5/32" x 5/8", Slotted
2шт.
35
113-103
BOLT,Hex, 5/16" - 18 x 1", Gr 5
Stop adj. Hex, 5/16"-18 x 1", G5, Full Thd
1шт.
36
A41349
STOP
- cylinder limit clamp
1шт.
37
114-115
BOLT,Hex, 5/16" - 24 x 2-3/4", Gr 5
Stop clamp (See item 37 before ordering) Hex, 5/16"-24 x 2 3/4", G5
1шт.
38
114-219
BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 5
- stop clamp (3/8 x 2-1/2" N.F. hex) (See item 37 before ordering)
1шт.
39
A41352
LOCK WASHER
LOCK - stop clamp bolt
1шт.
40
A41353
WASHER
- clamp bolt (1/2 x 7/8 x 1/16')
1шт.
41
A41615
LOCK NUT
NUT - clamp bolt (5/16" N.F.) (Use w/114-115 bolt)
1шт.
42
A41167
LOCK NUT
NUT - clamp bolt (3/8" N.F.) (Use w/114-219 bolt)
1шт.
43
A41347
SEAL,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro
KIT - cylinder, Includes: Ref. 4 - 7, 11 - 16, 21 - 23, 25, 26 and 28
1шт.
44
218-5201
90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem
ASSY. - adapter, 90 degrees
2шт.
45
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - elbow (3/4 x 15/16 x 3/32")
1шт.
46
A27347
PIN
- yoke
2шт.
47
A29054
HAIR PIN COTTER
- cotter, yoke pin (Internal hair)
2шт.
48
A28541
COUPLING, BREAK AWAY
COUPLING ASSY. - break-away (Repairs page 142)
2шт.
49
A20816
HOSE
- socket to cylinder 106"
1шт.
51
A20817
HOSE
- socket to cylinder 118"
1шт.
52
A27440
CLAMP
- hose
2шт.
53
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
1шт.
54
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N.C. hex
1шт.
55
92-5
LOCK WASHER,5/16"
1шт.
