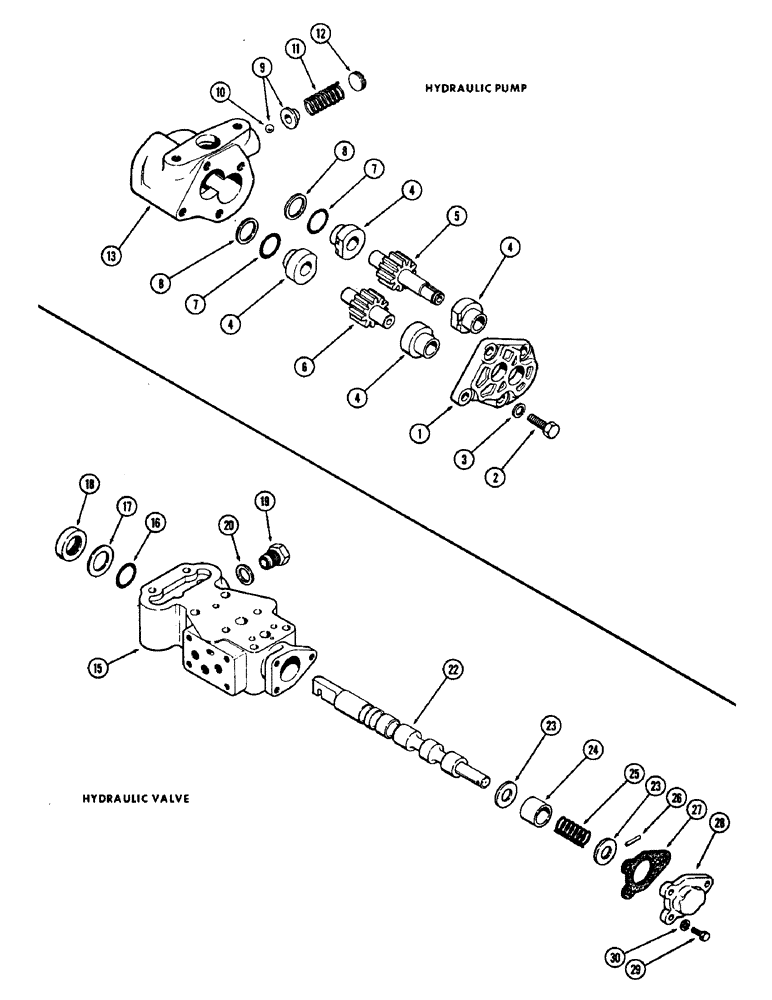

Запчасти Case 480CK (140) - A35081 HYDRAULIC PUMP

A35081

PUMP

ASSY. - hydraulic, Includes: Ref. 1 - 13

1шт.

1

G4523

COVER - pump

1шт.

3

92-6

LOCK WASHER,3/8"

4шт.

2

G49095

BOLT - cover

4шт.

4

G49673

BEARING

- gear

4шт.

5

G46223

GEAR

- drive

1шт.

6

G46049

GEAR - driven

1шт.

7

G46908

O-RING

"O" RING - bearing seal

2шт.

8

G49637

RING

- back-up

2шт.

9

A36058

X

RETAINER ASSY. - ball, Includes: Ref. 10

1шт.

10

211-10

BALL

- relief valve (11/32" dia.)

1шт.

11

G48516

SPRING

- relief valve

1шт.

12

G49094

PLUG - adjusting, relief valve

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - relief valve (Order A35081)

1шт.

A35618

LOCK VALVE

VALVE ASSY. - remote hydraulic, Includes: Ref. 15 - 30

2шт.

15

A35435

BODY - valve, A35618 hyd

1шт.

16

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - valve sealing (7/8 x 1-1/8 x 1/8"), A35619 hyd

1шт.

17

G49403

WASHER

- retainer, A35619 hyd valve

1шт.

18

G13807

OIL SEAL

SEAL - oil, spool (7/8 x 1-3/8 x 5/16"), A35619 hyd valve

1шт.

19

G10902

PLUG - opening, A35619 hyd valve

1шт.

20

A31053

COPPER SEAL

GASKET - plug, A35619 hyd valve

1шт.

22

A35436

SPOOL - valve, A35619 hyd

1шт.

23

A35302

WASHER - spool, A35619 hyd valve

2шт.

24

A10901

SLEEVE - stop, spool spring, A35619 hyd valve

1шт.

25

A30083

VALVE SPRING

SPRING - valve spool, A35619 hyd

1шт.

26

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , A35619 hyd valve 1/8" x 3/4", Slotted

1шт.

27

G10903

GASKET

- end cap, A35619 hyd valve

1шт.

28

G1102

CAP - end, A35619 hyd valve

1шт.

29

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

A35619 hyd valve Hex, 1/4"-20 x 3/4", G5, Full Thd

3шт.

30

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , A35619 Hyd valve 1/4"

3шт.
